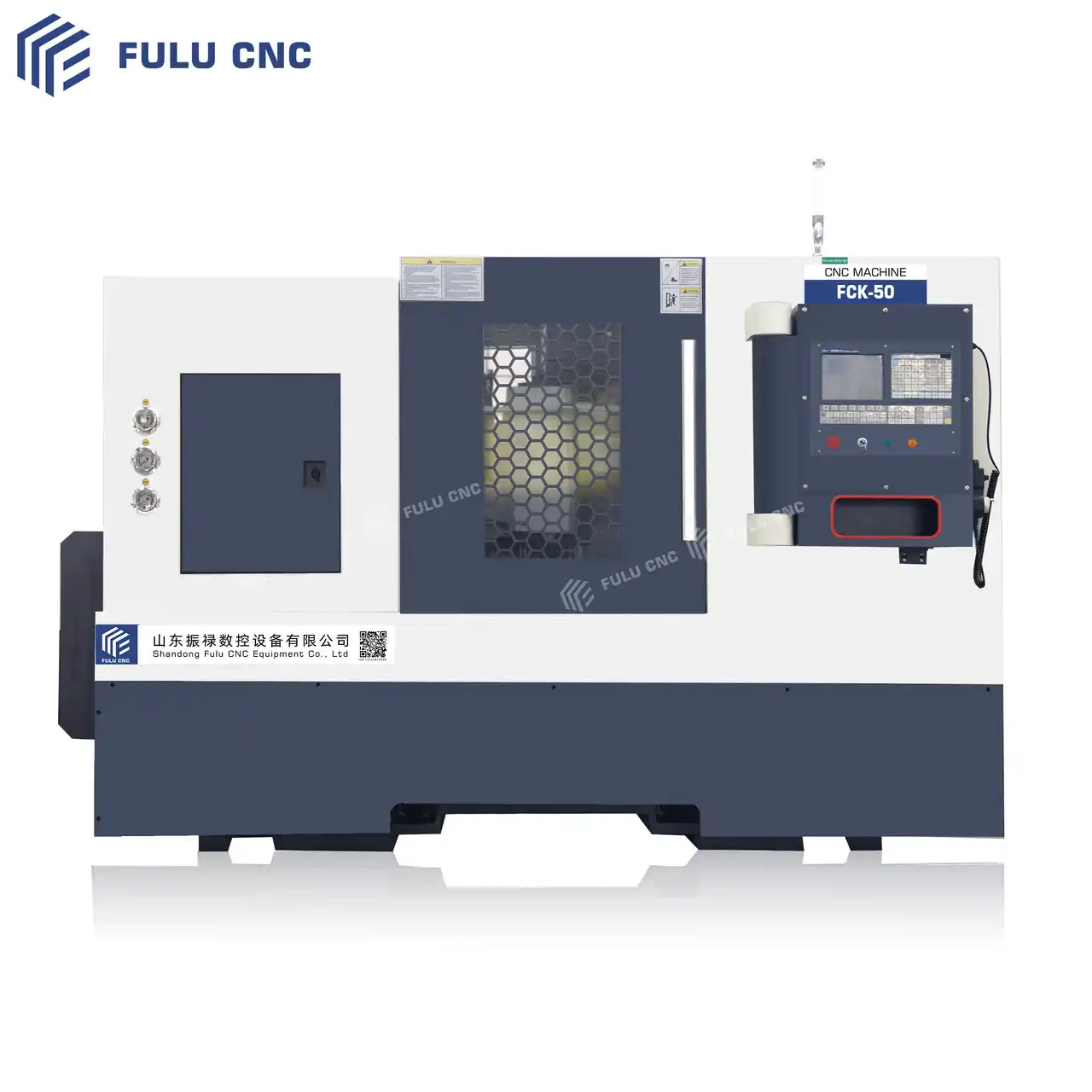

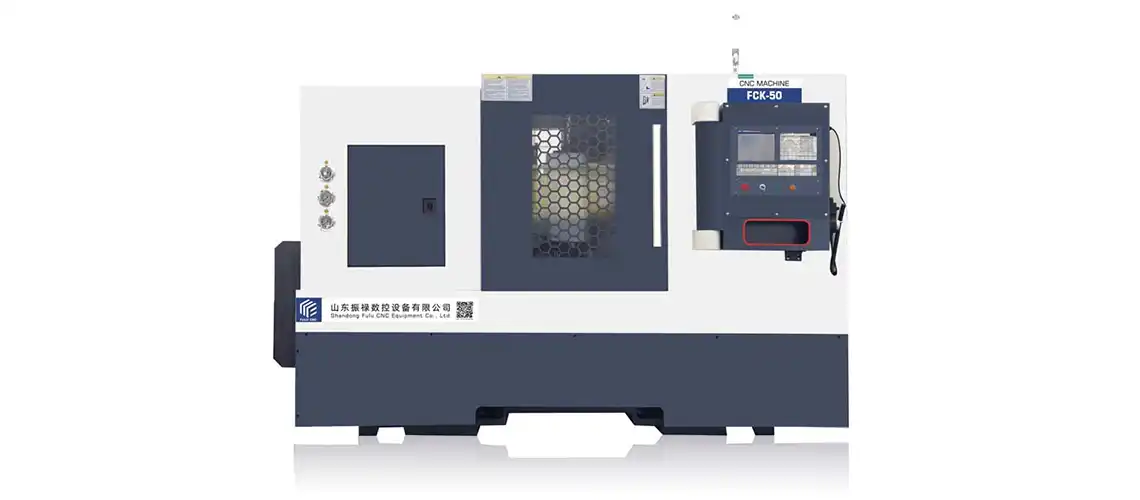

CNC Lathe
Basic Parameters
Standard Configuration Select Configuration
Technical Parameters
Item: FCK50
Unit
Specification
Maximum swing diameter over bed
mm
Φ550
Maximum cutting diameter
mm
Φ440
Processing diameter under turret
mm
Φ300
Maximum cutting length
mm
500
X-axis travel
mm
260
Z-axis travel
mm
600 (effective processing length 500)
X-axis moving speed
mm/min
20000
Z-axis moving speed
mm/min
20000

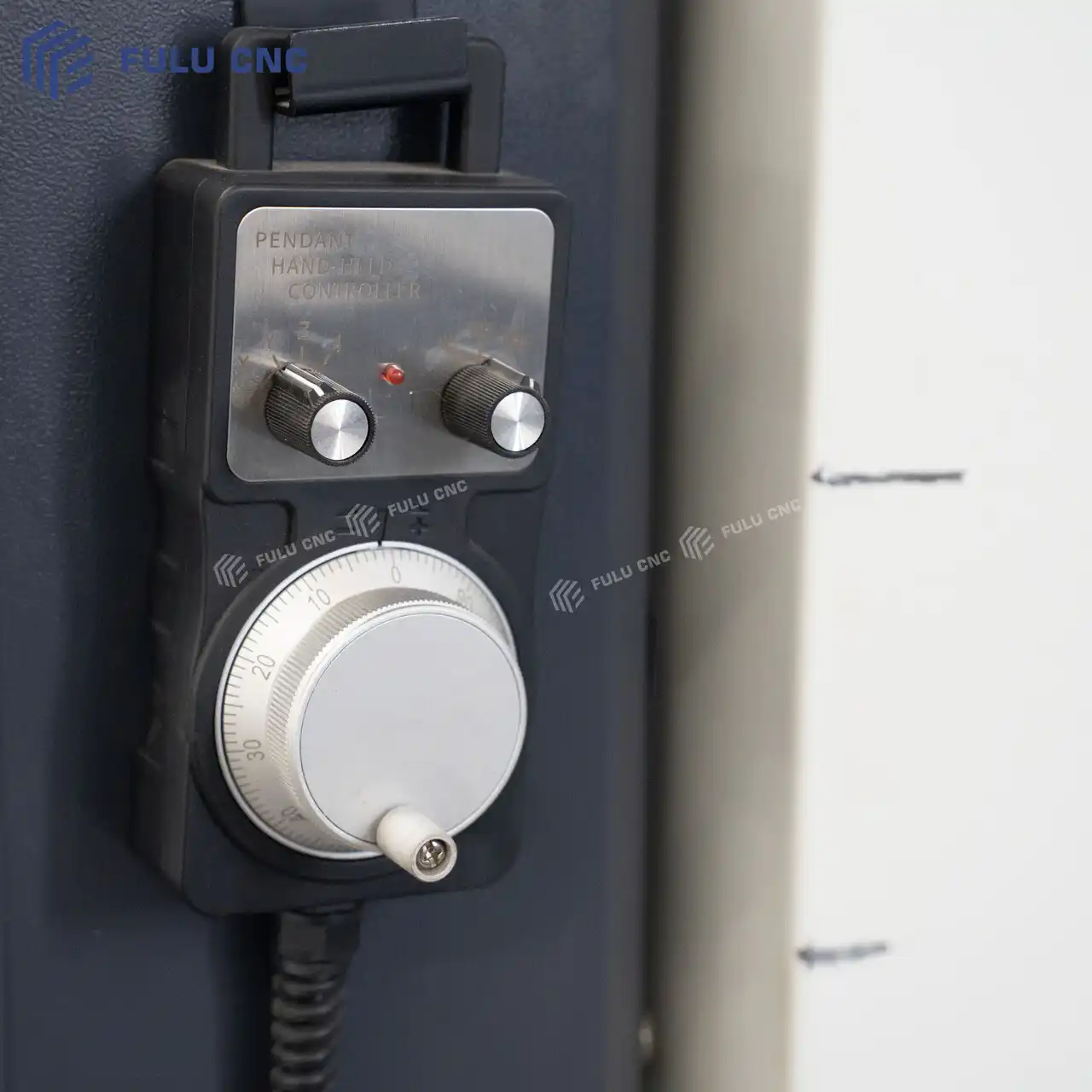

Handwheel
mm
0.001/0.01/0.1
X, Z feed speed
mm/min
0~5000
X, Z manual feed speed
mm/min
0~1260
X-axis repeat positioning accuracy
mm
0.005
X-axis positioning accuracy
mm
0.006
Z-axis repeat positioning accuracy
mm
0.006
Z-axis positioning accuracy
mm
0.008
Spindle speed
rpm
35-3000
Maximum spindle torque
N.m
48
Spindle nose
-
A2-6
Spindle through hole diameter
mm
Φ66
Hollow hydraulic chuck through hole diameter
mm
Φ55
Chuck
-

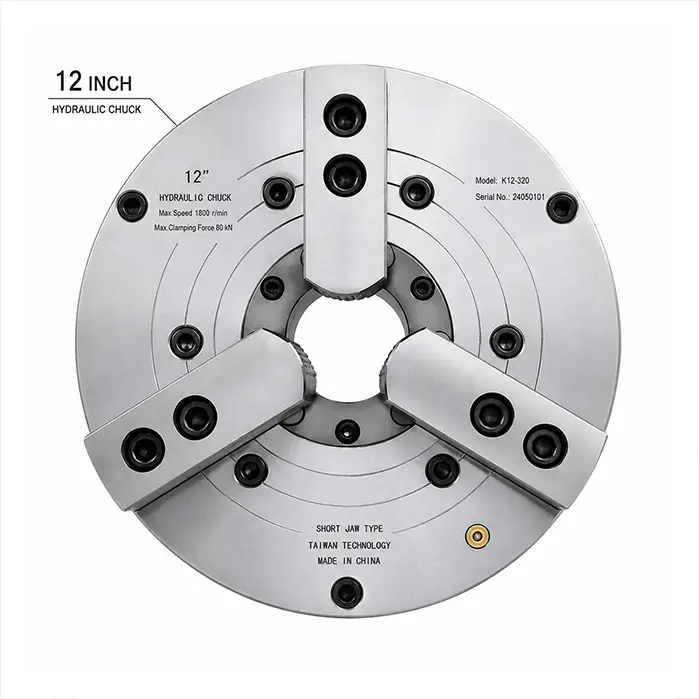

10" (optional 12")
Number of tool holders
-
12 stations
Tool installation dimensions
mm
25×25
Boring tool holder installation diameter
mm
Φ32
Tailstock travel
mm
500
Tailstock taper
-
MT-5#
Main motor power
kw
7.5
Main motor torque
N.m
48
X-axis feed motor power
kw
2.2
Z-axis feed motor power
kw
1.5
Length * Width * Height
mm
2830*2030*1900
Mechanical weight approximately
kg
3600
Standard Configuration The tool turret is a common tool layout method for slant bed CNC lathes, featuring a compact structure, fast tool change speed, and high processing efficiency. It is especially suitable for small precision parts and batch production. The tools are arranged in a straight line, effectively shortening tool change time, improving processing rhythm, and reducing auxiliary processing time. Due to its simple overall structure and good rigidity, the tool turret can maintain stable cutting performance during high-speed machining, ensuring high processing accuracy and surface quality. At the same time, the tool turret is easy to maintain and has a low failure rate. When combined with an automatic feeder, it can achieve continuous automated processing, making it an ideal choice for high-efficiency and high-precision production. The three-jaw self-centering chuck is one of the most commonly used clamping devices on CNC lathes, featuring fast clamping speed, high positioning accuracy, and easy operation. The three jaws can automatically center synchronously, enabling quick clamping of round, hexagonal, and other workpieces, reducing clamping time and improving processing efficiency. Its clamping force is stable and uniform, effectively ensuring the stability of the workpiece during high-speed rotation and heavy cutting, enhancing machining accuracy and surface quality. With a sturdy and durable structure and simple maintenance, it is suitable for processing various parts such as shafts, discs, and sleeves. Widely used in machinery manufacturing, automotive parts, mold processing, and hardware industries, it is an ideal clamping solution that balances efficiency, precision, and reliability. The hydraulic tailstock uses a hydraulic drive method, enabling quick clamping, releasing, and position adjustment. Compared to manual tailstock operation, it saves time and effort, significantly improving processing efficiency. The hydraulic system provides stable and uniform clamping force, effectively supporting long shaft workpieces, reducing errors caused by vibration or deformation during processing, and enhancing machining accuracy and surface quality. It is simple to operate and accurately positions, and can be integrated with CNC systems for automated processing, reducing manual intervention. It is especially suitable for batch production and continuous processing. The hydraulic tailstock is widely used in the machining of shafts, pipes, and heavy parts. The GSK control system is known for its stability, reliability, ease of operation, and cost-effectiveness, and is widely used in CNC lathes, vertical machining centers, and other CNC equipment. The system features high-speed computing capabilities and precise interpolation control, enabling high-precision and high-efficiency machining, ensuring consistent workpiece dimensions and surface quality. The Chinese operation interface is intuitive and easy to learn, with convenient programming, helping operators quickly get started and reducing training costs. Additionally, the GSK control system offers strong compatibility, stable operation, low failure rates, ample spare parts supply, and comprehensive after-sales service, effectively reducing equipment maintenance costs.

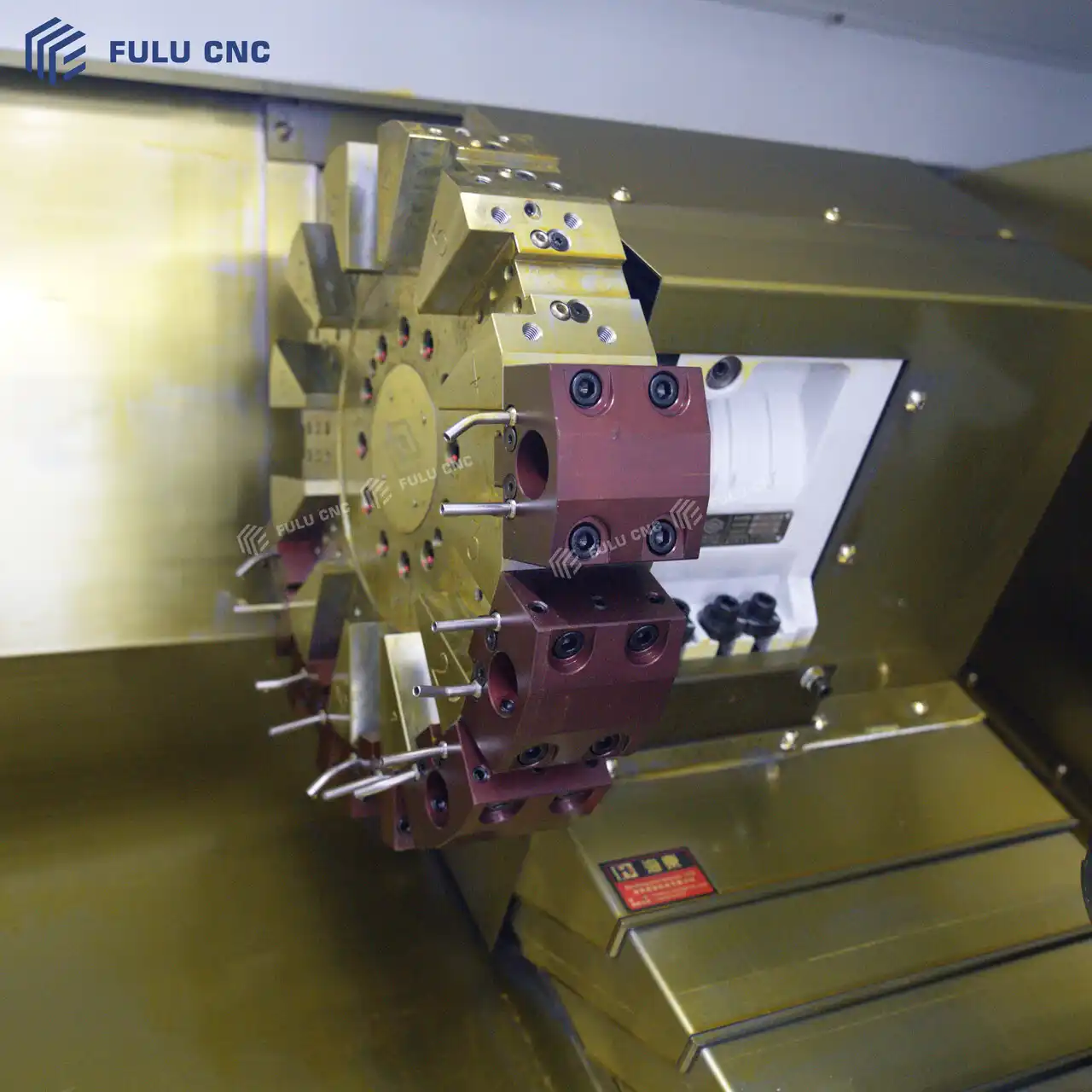

Tool Rack
Three-Jaw Chuck
Hydraulic Tailstock

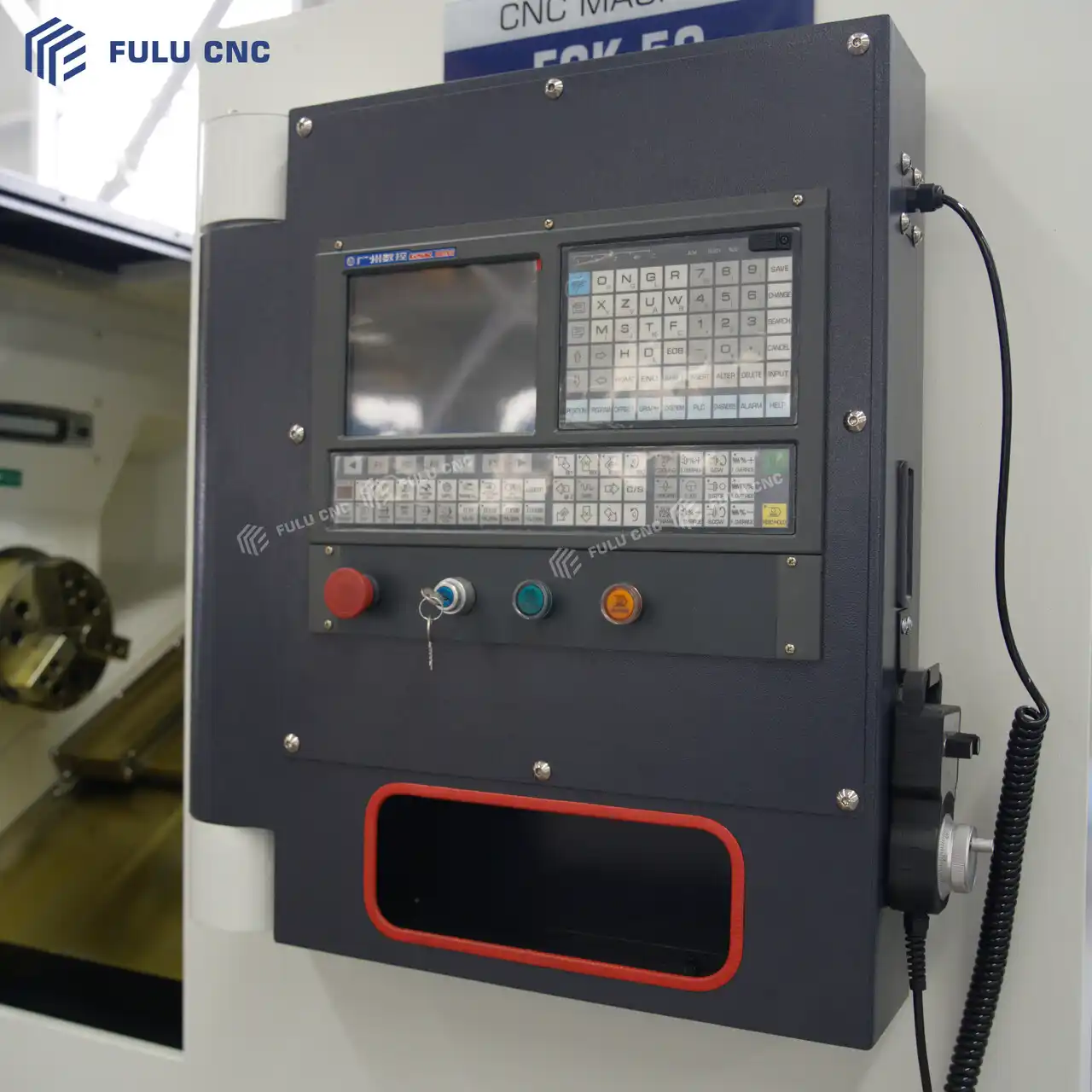

GSK Control System
You can choose the control system you need according to your production requirements.
You can choose the tool holder you need according to your production requirements.

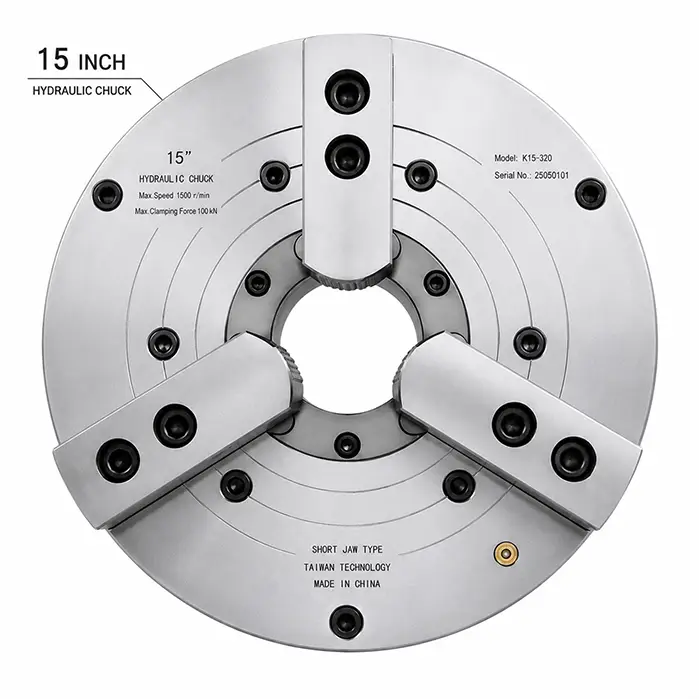

You can choose the chuck you need according to your production requirements.
CNC lathes are mainly used for processing metal parts, and can process some shaft and disk parts
Processable Parts
