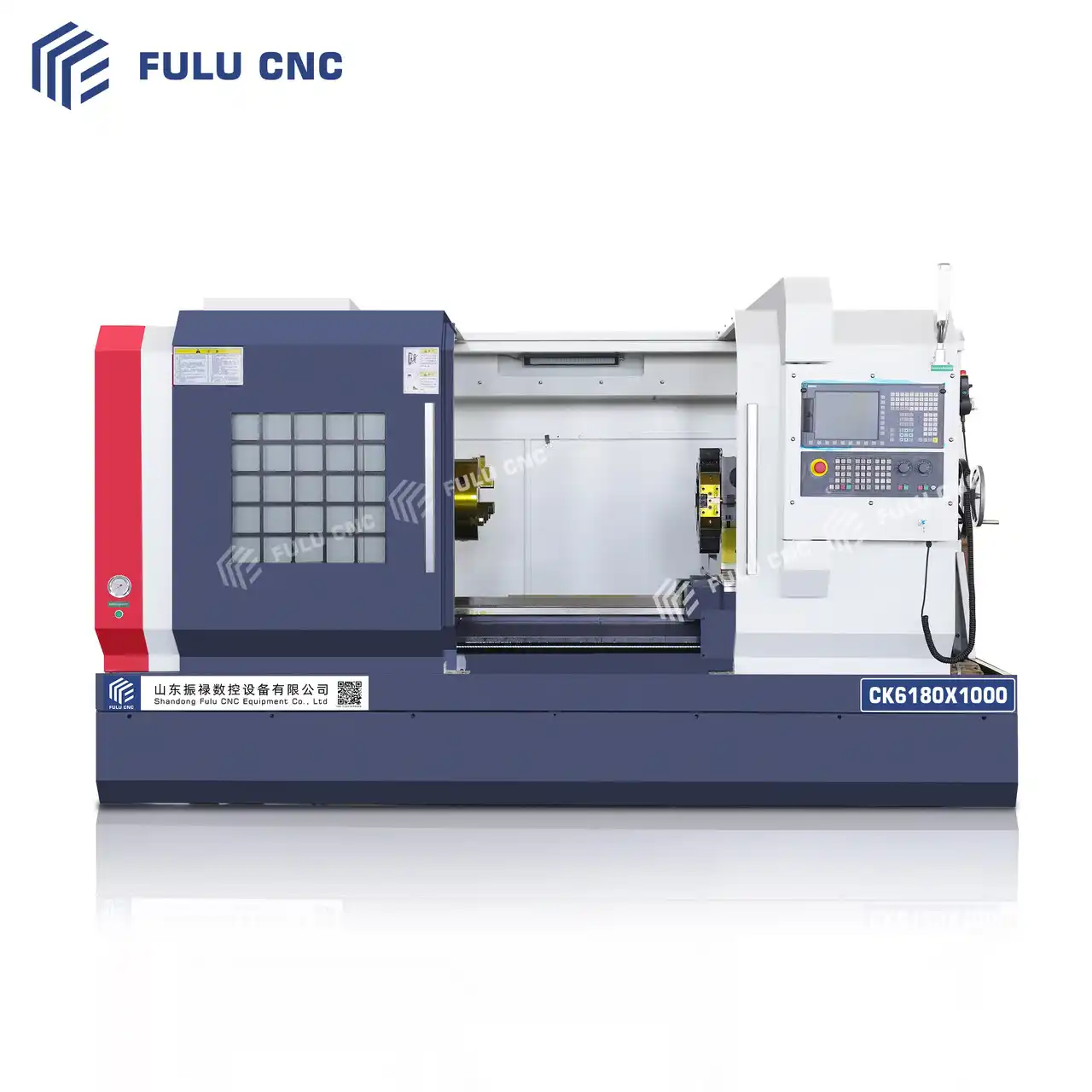

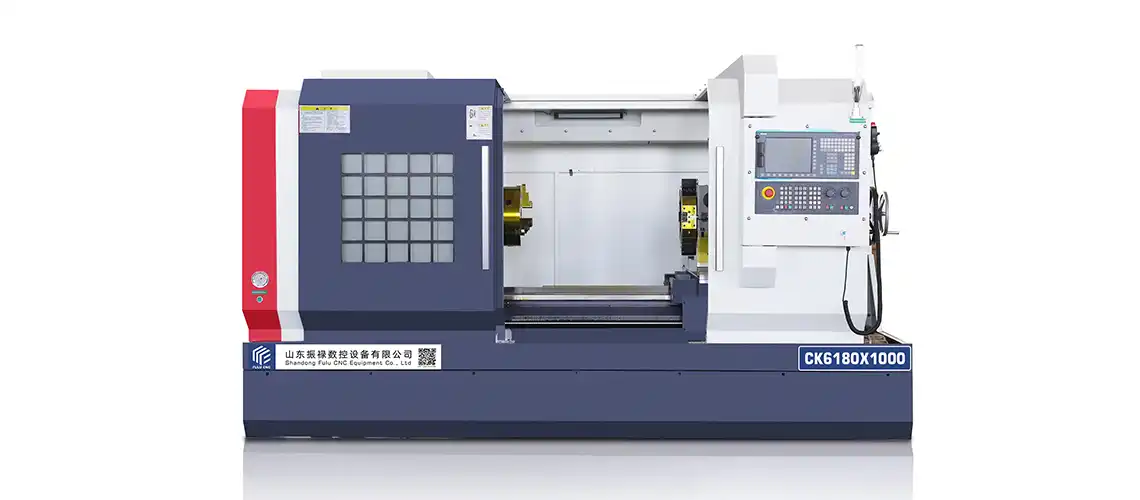

CNC Lathe
Basic Parameters
Standard Configuration
Select Configuration
| CK6180-1000 | Unit | Specification |
| Maximum workpiece rotation diameter on the bed | mm | 800 |
| Maximum workpiece rotation diameter on the tool holder | mm | 480 |
| Maximum workpiece length | mm | 1000 |
| Width of the bed guide rail | mm | 600 |
| Spindle hole diameter | mm | 105 |
| Spindle end code | - | C11 |
| Spindle speed range (frequency conversion stepless speed regulation) | r/min | 40-125/110-350/290-950 |
| Chuck (manual) four-jaw chuck | mm | Ф630 |
| Main motor power | Kw | 11KW/15KW |
| Tool size | mm | 32×32 |
| Electric tool holder | - | Vertical four-position tool holder |
| Maximum stroke of the bed saddle in the Z direction | mm | 1500/2000/3000 |
| Maximum lateral stroke of the tool holder in the X direction | mm | 420 |
| Rapid movement speed of the bed saddle in the Z direction | m/min | 6 |
| Lateral rapid movement speed of the tool holder in the X direction | m/min | 4 |
| Torque of the X/Z axis | nm | 10N·m/15N·m |
| Tailstock sleeve diameter | mm | Φ120 |
| Tailstock sleeve stroke | mm | 250 |
| Taper of the tailstock sleeve | - | Morse 6 |
| Machine tool profile (Length x Width x Height) | mm | 2600 × 1800 × 1850 |
Standard Configuration The GSK CNC control system is renowned for its stability, ease of operation, and excellent cost performance. It is widely used in CNC lathes, vertical machining centers, and other CNC machine tools. The system supports high-speed, high-precision machining with fast program execution, accurate interpolation, and reliable operation, significantly improving machining efficiency and ensuring consistent product quality. Its user-friendly Chinese interface is easy to learn, while low maintenance costs, readily available spare parts, and comprehensive after-sales service make it a trusted CNC control solution for industries such as metal processing, mold manufacturing, automotive components, and precision machining. The 3-jaw self-centering chuck features a synchronized clamping mechanism that automatically centers the workpiece quickly and accurately, providing stable and reliable gripping while improving clamping efficiency and machining accuracy. Its uniform clamping force makes it ideal for high-precision machining of round, hexagonal, and other regular-shaped workpieces, reducing setup errors and ensuring consistent machining quality. Built with a robust and durable structure, it is easy to operate and allows fast workpiece changes. It is widely used in CNC lathes, conventional lathes, and automated production lines, making it an ideal workholding solution for metal processing, automotive components, shafts, and flange machining. The 4-station electric tool post features a high-precision indexing mechanism that enables fast and accurate automatic tool changes, significantly reducing non-cutting time and improving production efficiency. It offers excellent indexing accuracy and repeatability, ensuring consistent and reliable machining during continuous operation. With its compact structure and high rigidity, it is suitable for a wide range of turning operations, including external turning, facing, grooving, and threading. Easy to operate and maintain, it is widely used in CNC lathes and automated machining equipment, making it an ideal solution for improving machining efficiency and precision. The manual tailstock is designed with a high-rigidity structure to provide stable and reliable support for long shafts and slender workpieces, effectively reducing vibration while improving machining accuracy and surface finish. Its simple, durable design ensures easy operation, low maintenance costs, and reliable long-term performance. Compared with a hydraulic tailstock, the manual tailstock offers a more affordable price, easier maintenance, and lower operating costs, making it an ideal choice for CNC lathes that prioritize excellent value for money. It is widely used in mechanical manufacturing, automotive components, shaft machining, pipe processing, and other metalworking applications.

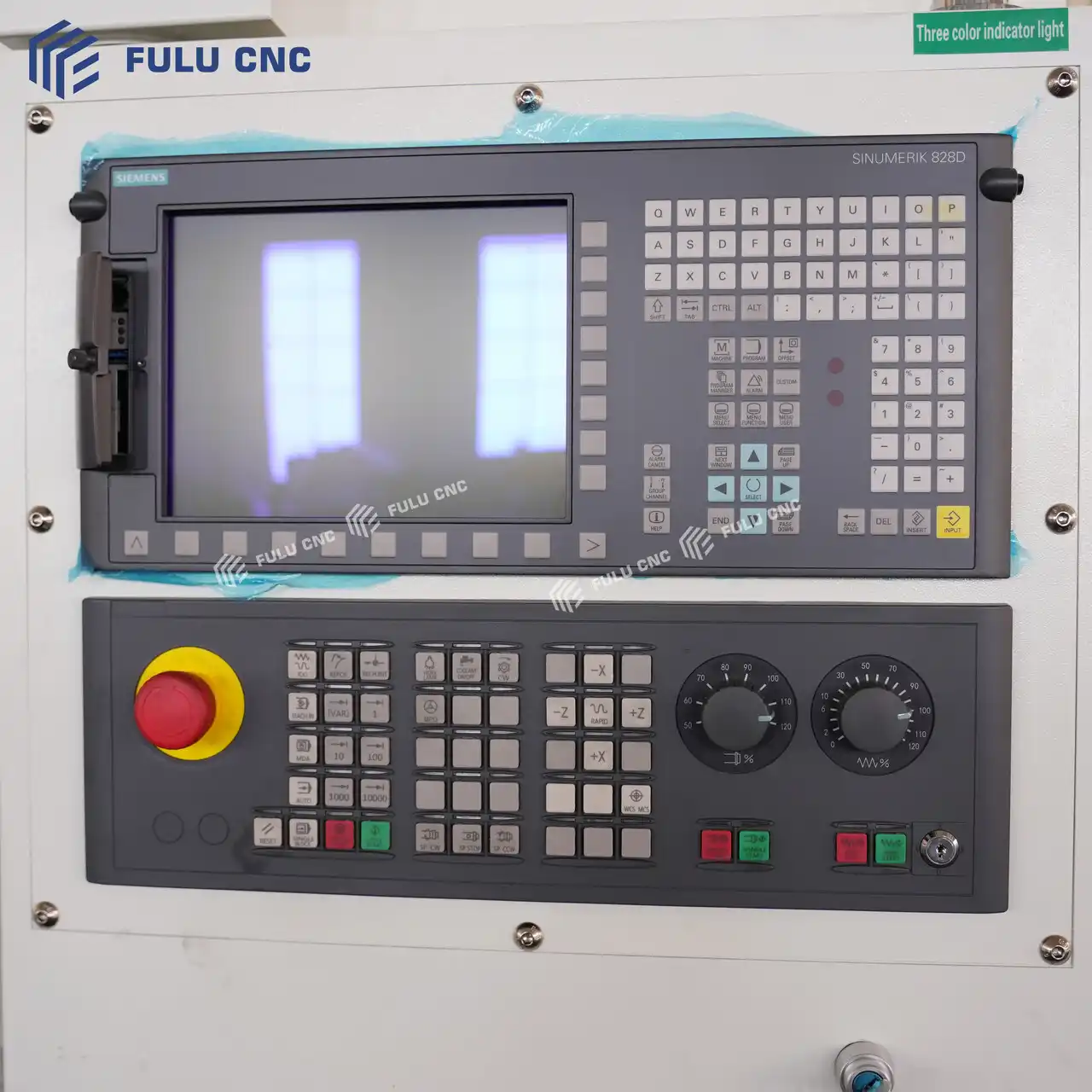

Control System

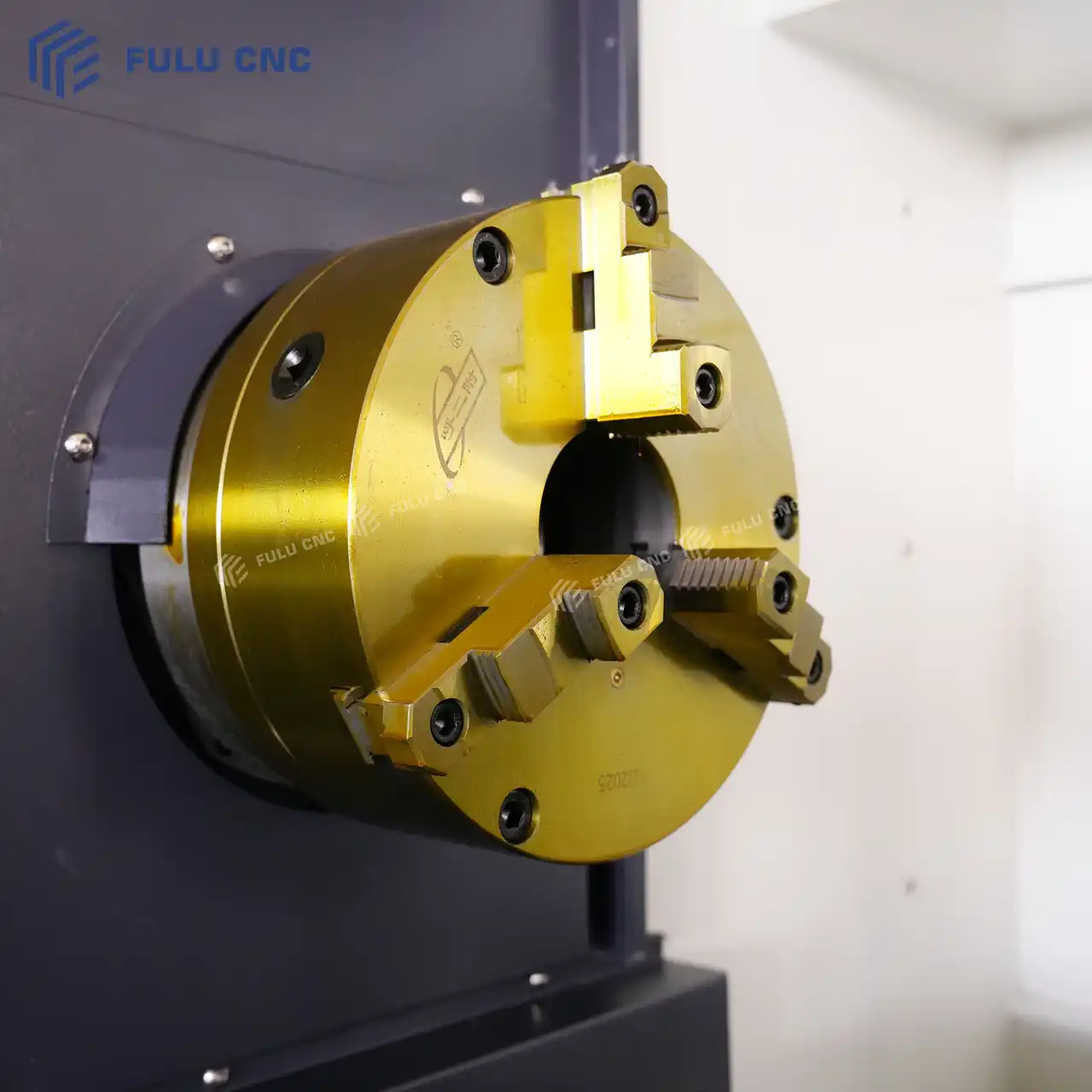

Three-Jaw Chuck

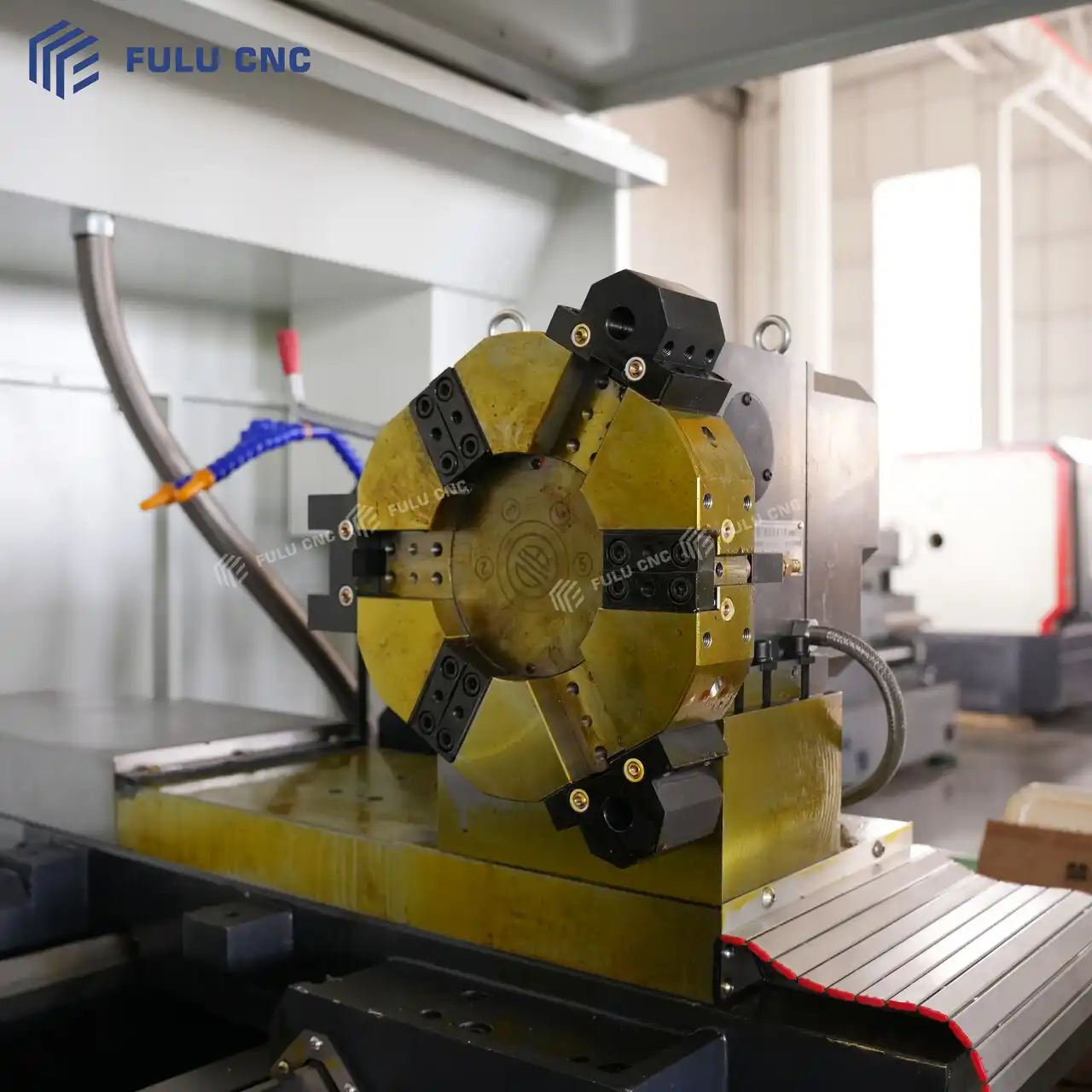

Four-Position Electric Tool Holder

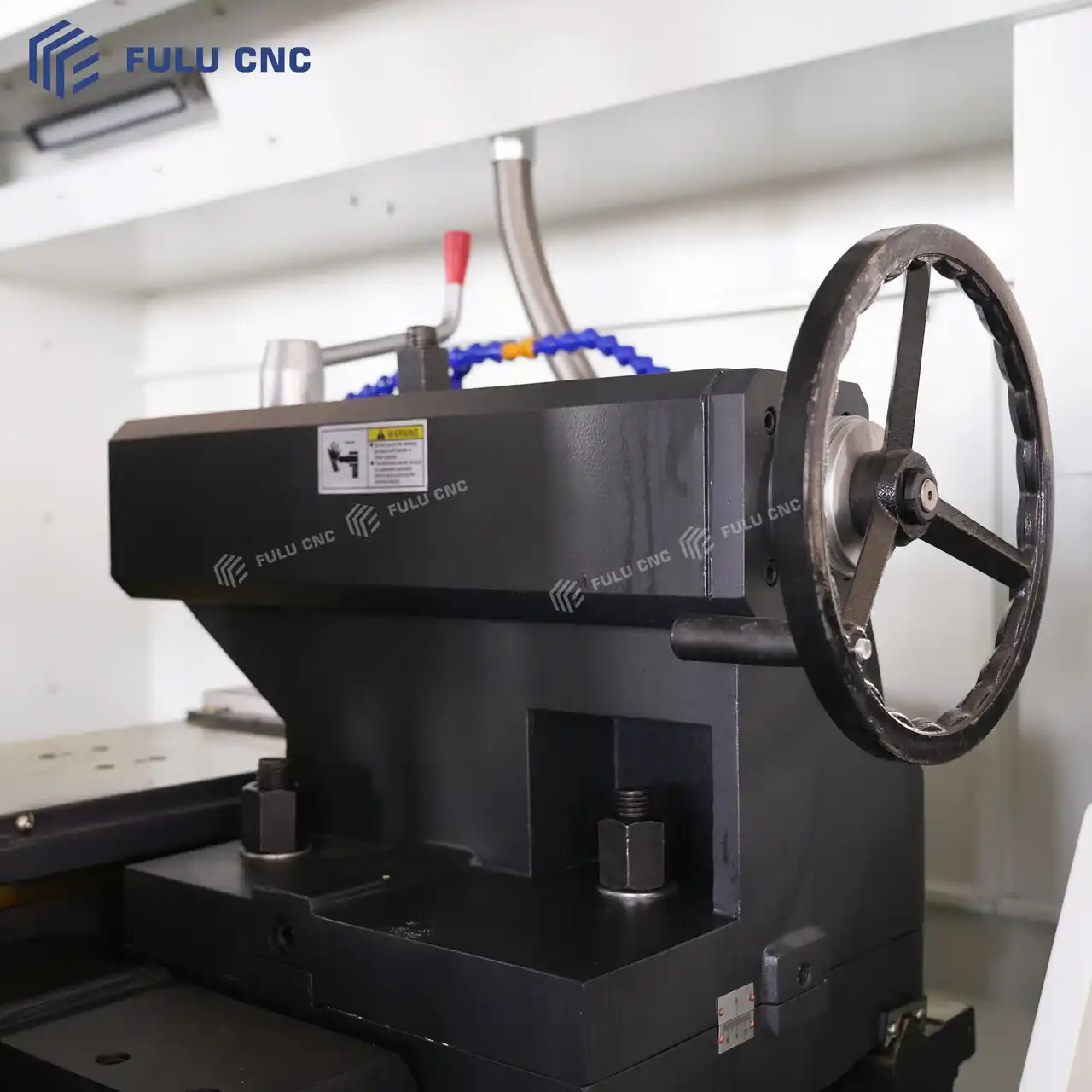

Manual Tailstock
You can choose the control system you need according to your production requirements.
You can choose the knife that suits your needs
You can choose the tailstock you need according to your production requirements.
You can choose the chuck you need according to your production requirements.
CNC lathes are mainly used for processing metal parts, and can process some shaft and disk parts
Processable Parts
FULU CNC operates a modern manufacturing facility with advanced production equipment, professional assembly lines, and a strict quality control system. Every CNC machine undergoes precision machining, careful assembly, accuracy inspection, and comprehensive performance testing before delivery. Our commitment to quality, reliability, and continuous innovation enables us to provide high-performance CNC machine solutions that meet the diverse needs of customers around the world.
