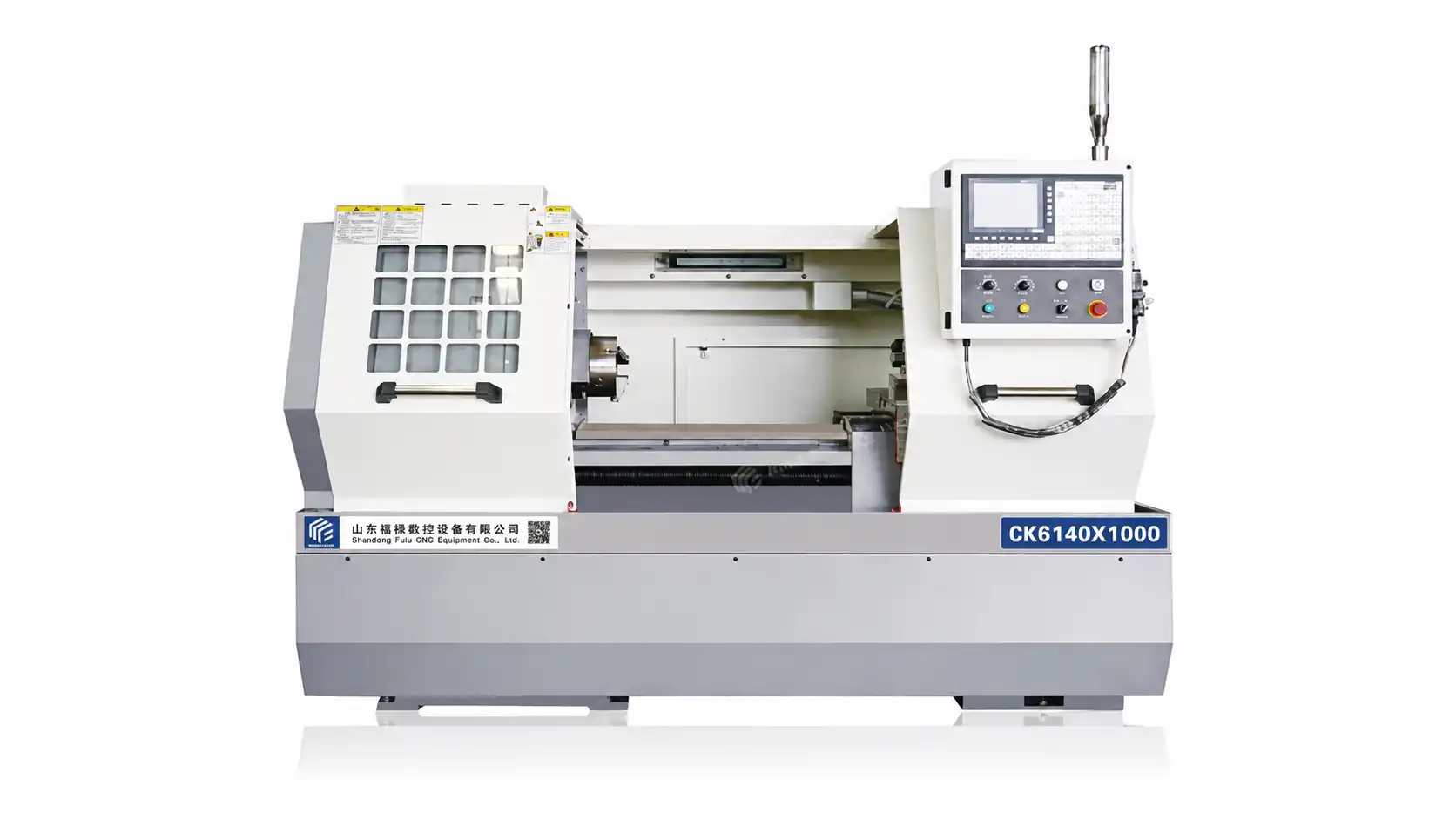

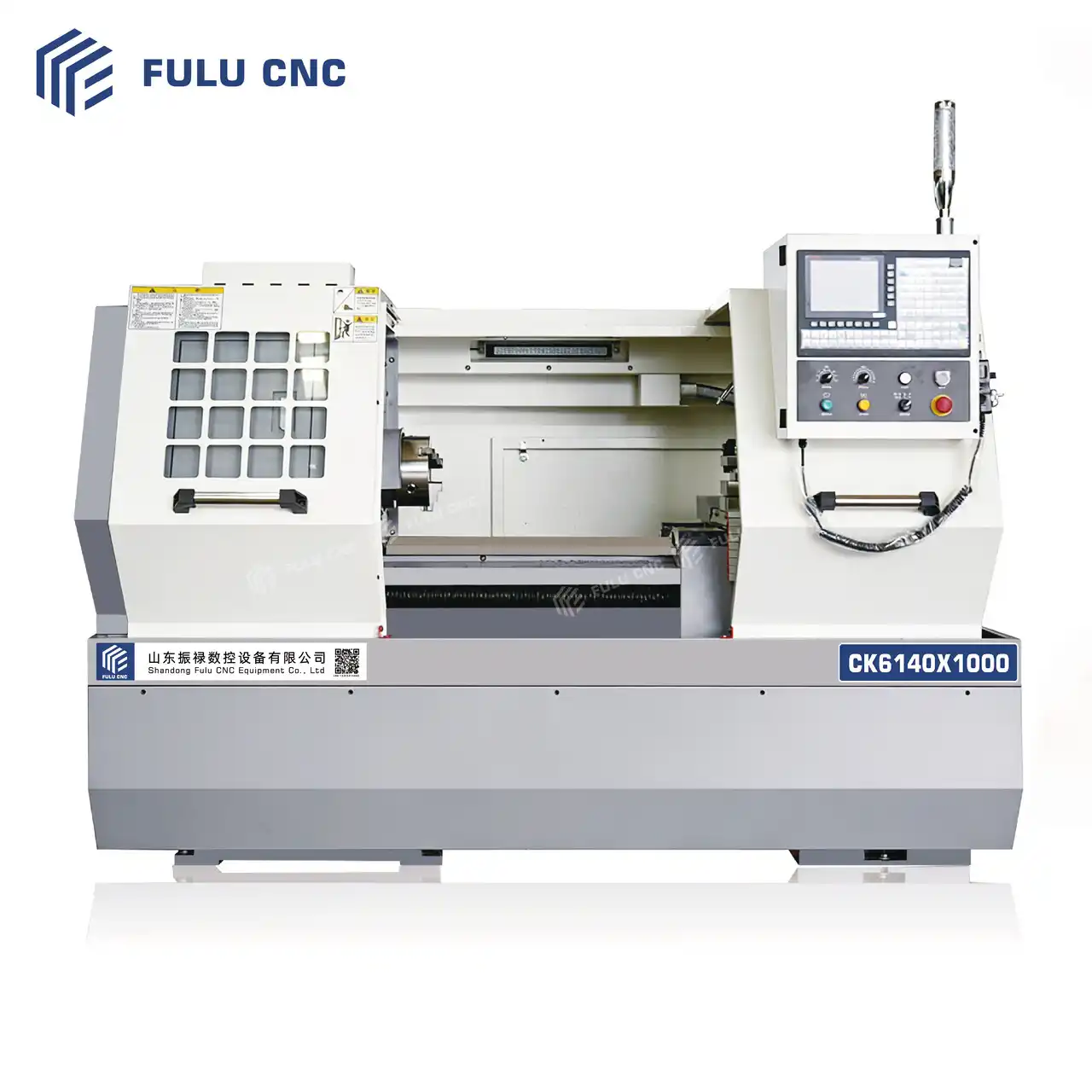

CNC Lathe
Basic Parameters
Standard Configuration Select Configuration
Technical Parameters
Project (CK6140)
Unit
CK6140
Maximum rotation diameter on the bed slide
mm
Φ400
Maximum rotation diameter on the slide
Φ200
Maximum processing length
mm
1000
Maximum processing diameter
mm
Φ400
Maximum bar diameter
mm
Φ200
Chuck
200 three-jaw chuck
Spindle head type
ISO (GB)A2-6

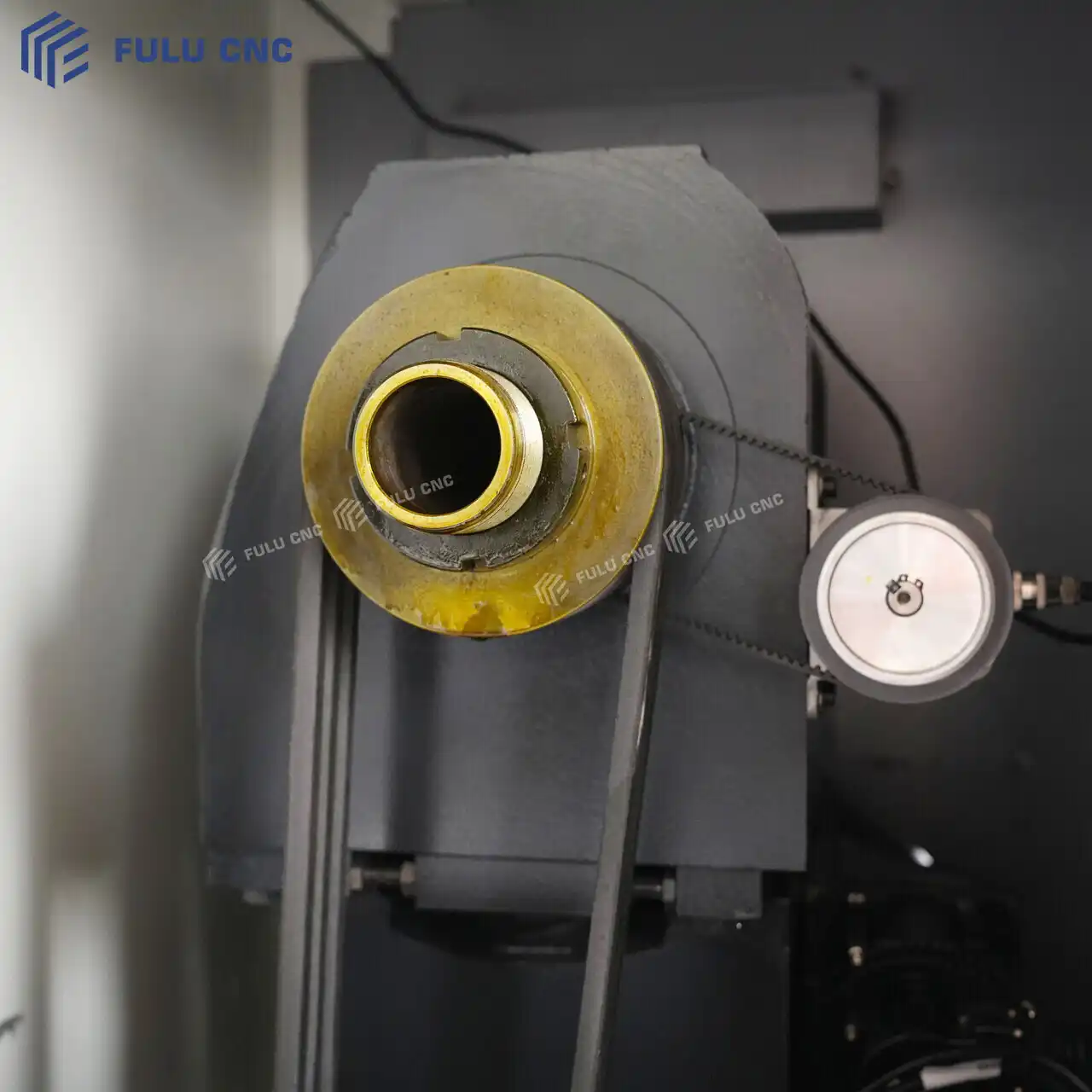

Spindle through hole diameter
mm
Φ52
Spindle levels
Stepless speed change / Two-speed (frequency conversion within the gear)
Spindle speed range
r/min
10-1800/50-1600
X/Z axis travel
mm
200/1000
X/Z axis screw diameter × pitch
mm
Φ20/φ40
X/Z rapid traverse speed
m/min
April 6
Tool holder type
Electric vertical
Number of stations
4
Tool holder size
mm
20×20
Sleeve diameter / stroke
mm
Φ65/100
Sleeve inner cone angle
MT4
Sleeve drive type
Manual
Tailstock body movement type
Manual
Spindle motor power
Kw
5.5
Coolant pump motor power
W
90
Bed saddle layout type
Flat bed
Guide rail type
Hard rail (average HRC55)
Machine dimensions: length × width × height
mm
2650X1500X1700
Standard Configuration The GSK CNC control system is renowned for its stability, ease of operation, and excellent cost performance. It is widely used in CNC lathes, vertical machining centers, and other CNC machine tools. The system supports high-speed, high-precision machining with fast program execution, accurate interpolation, and reliable operation, significantly improving machining efficiency and ensuring consistent product quality. Its user-friendly Chinese interface is easy to learn, while low maintenance costs, readily available spare parts, and comprehensive after-sales service make it a trusted CNC control solution for industries such as metal processing, mold manufacturing, automotive components, and precision machining. The 3-jaw self-centering chuck features a synchronized clamping mechanism that automatically centers the workpiece quickly and accurately, providing stable and reliable gripping while improving clamping efficiency and machining accuracy. Its uniform clamping force makes it ideal for high-precision machining of round, hexagonal, and other regular-shaped workpieces, reducing setup errors and ensuring consistent machining quality. Built with a robust and durable structure, it is easy to operate and allows fast workpiece changes. It is widely used in CNC lathes, conventional lathes, and automated production lines, making it an ideal workholding solution for metal processing, automotive components, shafts, and flange machining. The 4-station electric tool post features a high-precision indexing mechanism that enables fast and accurate automatic tool changes, significantly reducing non-cutting time and improving production efficiency. It offers excellent indexing accuracy and repeatability, ensuring consistent and reliable machining during continuous operation. With its compact structure and high rigidity, it is suitable for a wide range of turning operations, including external turning, facing, grooving, and threading. Easy to operate and maintain, it is widely used in CNC lathes and automated machining equipment, making it an ideal solution for improving machining efficiency and precision. The manual tailstock is designed with a high-rigidity structure to provide stable and reliable support for long shafts and slender workpieces, effectively reducing vibration while improving machining accuracy and surface finish. Its simple, durable design ensures easy operation, low maintenance costs, and reliable long-term performance. Compared with a hydraulic tailstock, the manual tailstock offers a more affordable price, easier maintenance, and lower operating costs, making it an ideal choice for CNC lathes that prioritize excellent value for money. It is widely used in mechanical manufacturing, automotive components, shaft machining, pipe processing, and other metalworking applications.

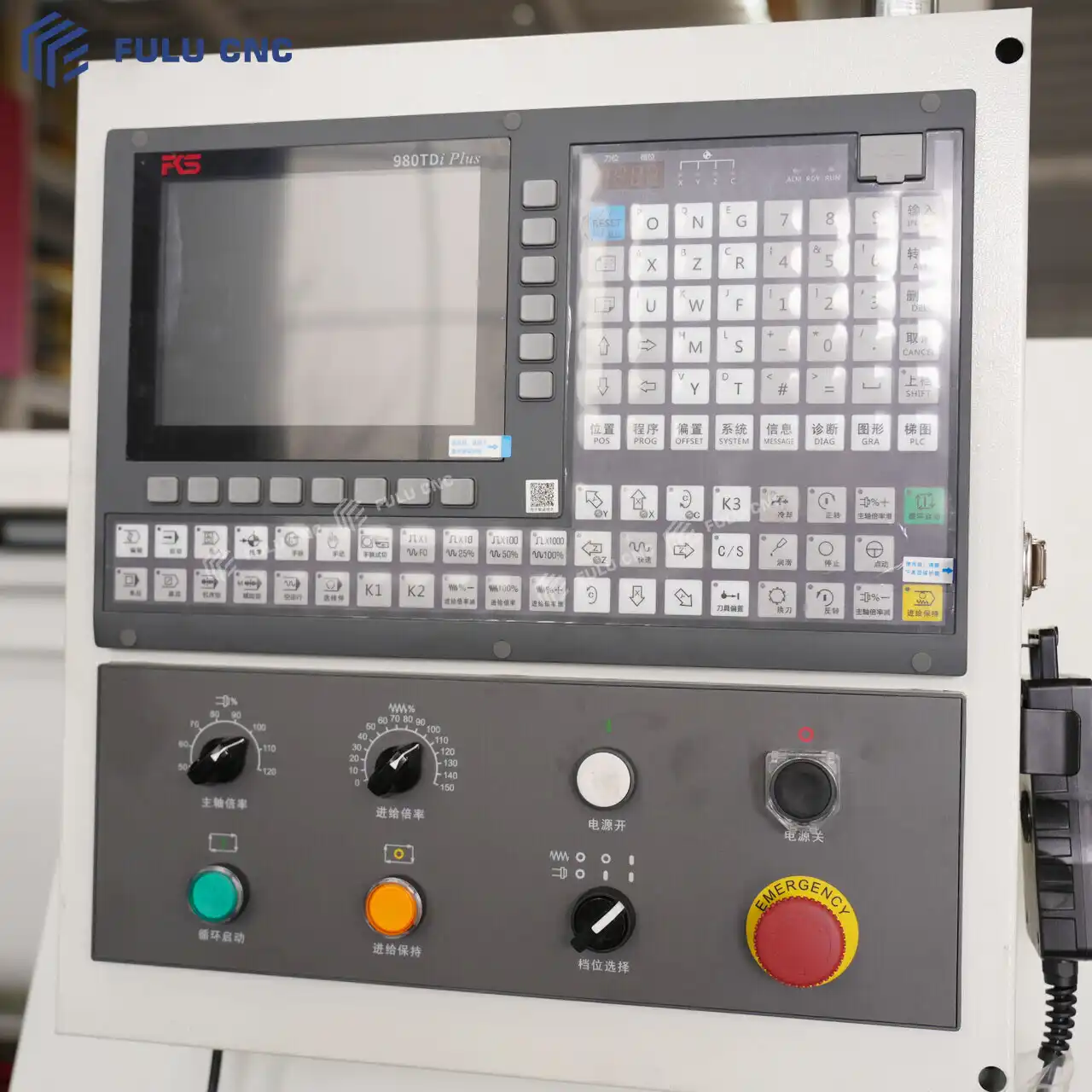

Control System

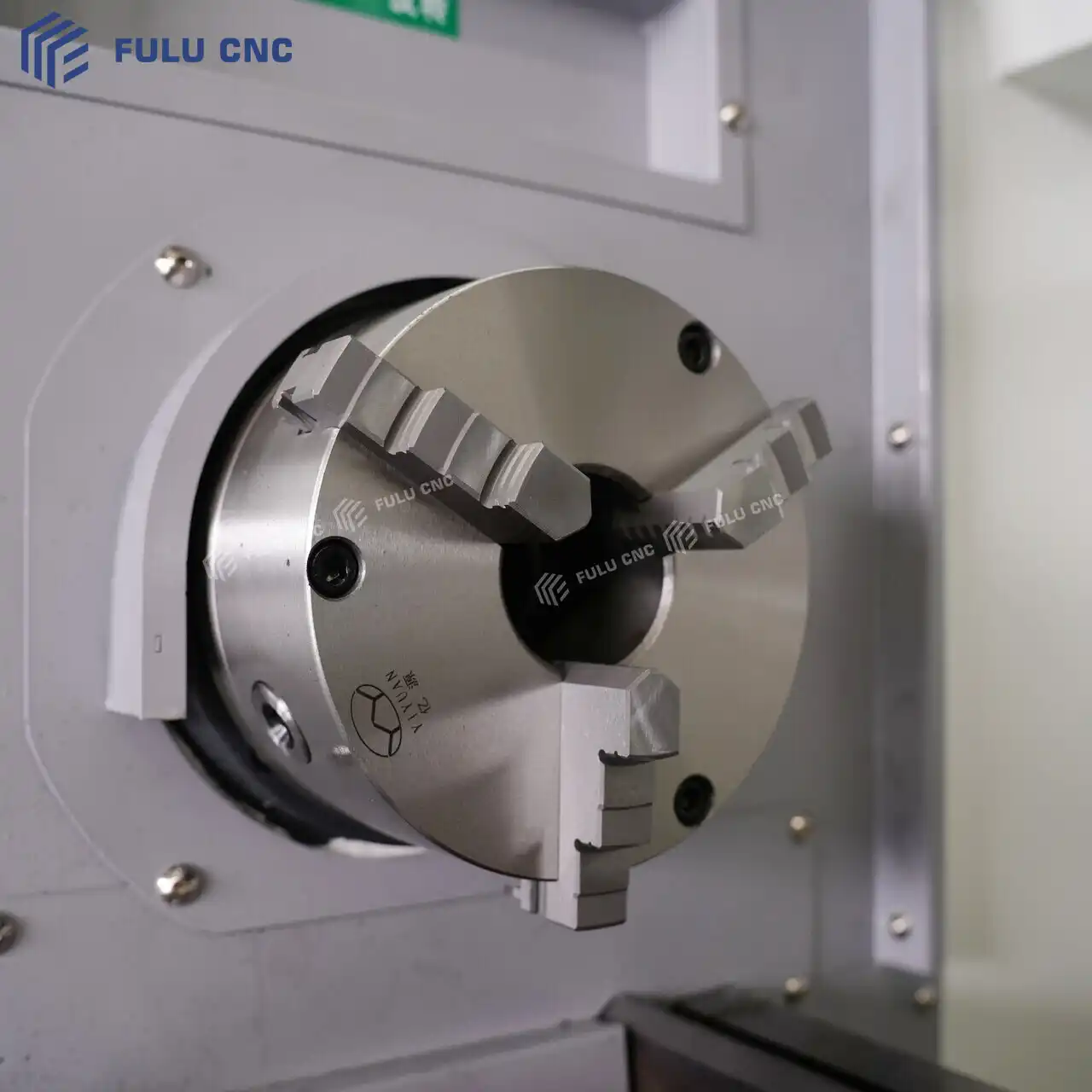

Three-Jaw Chuck

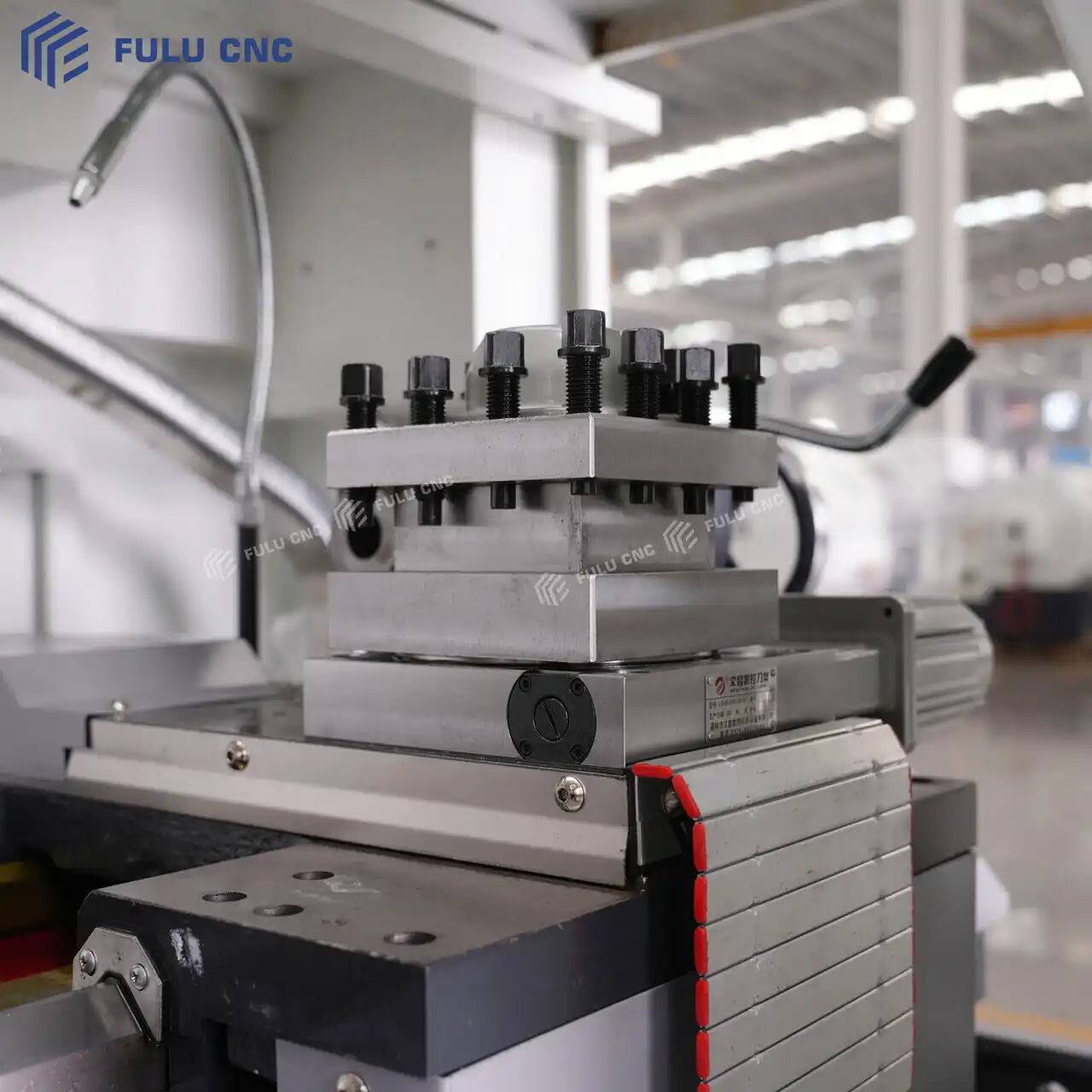

Four-Position Electric Tool Holder
Manual Tailstock
You can choose the control system you need according to your production requirements.
You can choose the knife that suits your needs
You can choose the tailstock you need according to your production requirements.
You can choose the chuck you need according to your production requirements.
CNC lathes are mainly used for processing metal parts, and can process some shaft and disk parts
Processable Parts
