Grundparameter
Standardkonfiguration Konfiguration auswählen
Technische Parameter
Projekt (CK6140)
Einheit
CK6140
Maximaler Drehdurchmesser auf dem Bett
mm
Φ400
Maximaler Drehdurchmesser auf dem Schlitten
Φ200
Maximale Bearbeitungslänge
mm
1000
Maximaler Bearbeitungsdurchmesser
mm
Φ400
Maximaler Stangenmaterialdurchmesser
mm
Φ200
Spannfutter
200 Dreifach-Spannfutter
Spindelkopf-Form
ISO (GB)A2-6
Durchmesser der Spindelbohrung
mm
Φ52
Anzahl der Spindelstufen
Stufenloses Getriebe/Zwei-Gang (Frequenzumwandlung innerhalb des Gangs)
Spindeldrehzahlbereich
r/min
10-1800/50-1600
X/Z Achsweg
mm
200/1000
X/Z Gewindespindeldurchmesser × Steigung
mm
Φ20/φ40
X/Z Vorschubgeschwindigkeit
m/min
6. April
Werkzeughalter-Form
Elektrisch vertikal
Anzahl der Positionen
4
Werkzeughaltergröße
mm
20×20
Durchmesser/Hub des Hülse
mm
Φ65/100
Kegel des Innenlochs der Hülse
MT4
Antriebsart der Hülse
Manuell
Bewegungsart des Reitstocks
Manuell
Spindelmotorleistung
Kw
5.5
Leistung der Kühlpumpenmotor
W
90
Bett-Sattel-Anordnung
Flaches Bett
Führungsart
Hartführung (Durchschnitt HRC55)
Maschinenabmessungen: Länge × Breite × Höhe
mm
2650X1500X1700
Standardausstattung The GSK CNC control system is renowned for its stability, ease of operation, and excellent cost performance. It is widely used in CNC lathes, vertical machining centers, and other CNC machine tools. The system supports high-speed, high-precision machining with fast program execution, accurate interpolation, and reliable operation, significantly improving machining efficiency and ensuring consistent product quality. Its user-friendly Chinese interface is easy to learn, while low maintenance costs, readily available spare parts, and comprehensive after-sales service make it a trusted CNC control solution for industries such as metal processing, mold manufacturing, automotive components, and precision machining. The 3-jaw self-centering chuck features a synchronized clamping mechanism that automatically centers the workpiece quickly and accurately, providing stable and reliable gripping while improving clamping efficiency and machining accuracy. Its uniform clamping force makes it ideal for high-precision machining of round, hexagonal, and other regular-shaped workpieces, reducing setup errors and ensuring consistent machining quality. Built with a robust and durable structure, it is easy to operate and allows fast workpiece changes. It is widely used in CNC lathes, conventional lathes, and automated production lines, making it an ideal workholding solution for metal processing, automotive components, shafts, and flange machining. The 4-station electric tool post features a high-precision indexing mechanism that enables fast and accurate automatic tool changes, significantly reducing non-cutting time and improving production efficiency. It offers excellent indexing accuracy and repeatability, ensuring consistent and reliable machining during continuous operation. With its compact structure and high rigidity, it is suitable for a wide range of turning operations, including external turning, facing, grooving, and threading. Easy to operate and maintain, it is widely used in CNC lathes and automated machining equipment, making it an ideal solution for improving machining efficiency and precision. The manual tailstock is designed with a high-rigidity structure to provide stable and reliable support for long shafts and slender workpieces, effectively reducing vibration while improving machining accuracy and surface finish. Its simple, durable design ensures easy operation, low maintenance costs, and reliable long-term performance. Compared with a hydraulic tailstock, the manual tailstock offers a more affordable price, easier maintenance, and lower operating costs, making it an ideal choice for CNC lathes that prioritize excellent value for money. It is widely used in mechanical manufacturing, automotive components, shaft machining, pipe processing, and other metalworking applications.
Steuerungssystem
Dreibackenfutter
Vierfach-Elektromesserhalter
Manueller Reitstock
You can choose the control system you need according to your production requirements.
You can choose the knife that suits your needs
Wählen Sie die benötigten Zubehörteile basierend auf Ihren Produktionsanforderungen selbst aus.
You can choose the chuck you need according to your production requirements.
CNC-Drehmaschinen werden hauptsächlich zur Bearbeitung von Metallteilen eingesetzt und können einige Wellen- und Scheibenbauteile bearbeiten

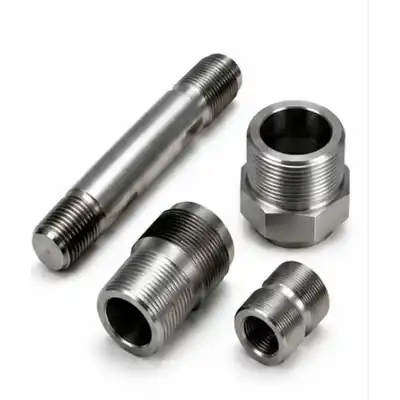

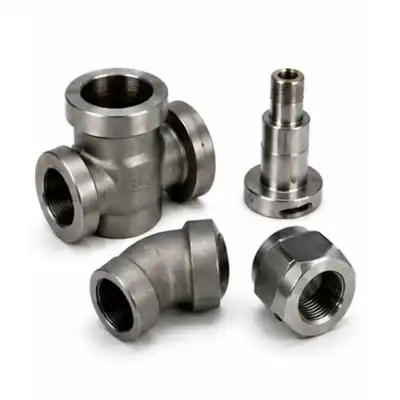

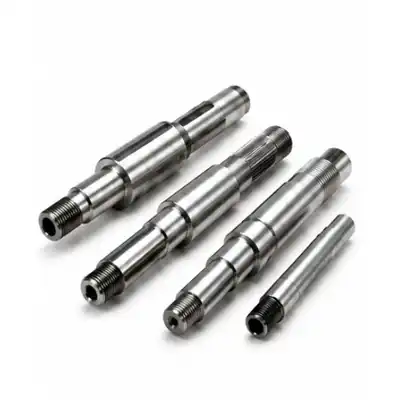

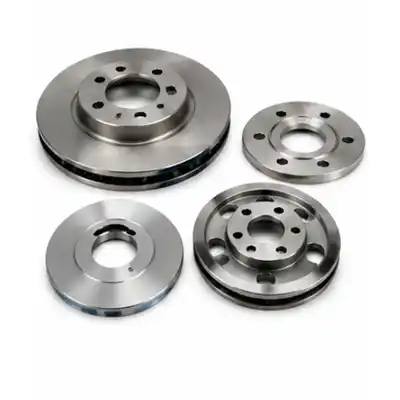

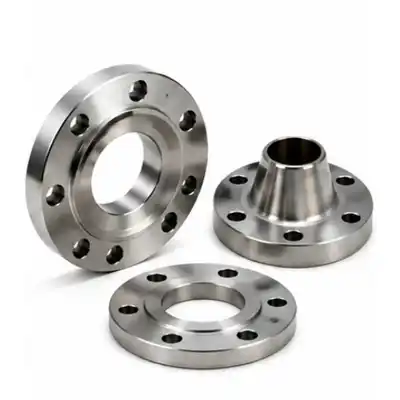

Bearbeitbare Teile
