Basic Parameters
Standard Configuration Select Configuration
Technical Parameters

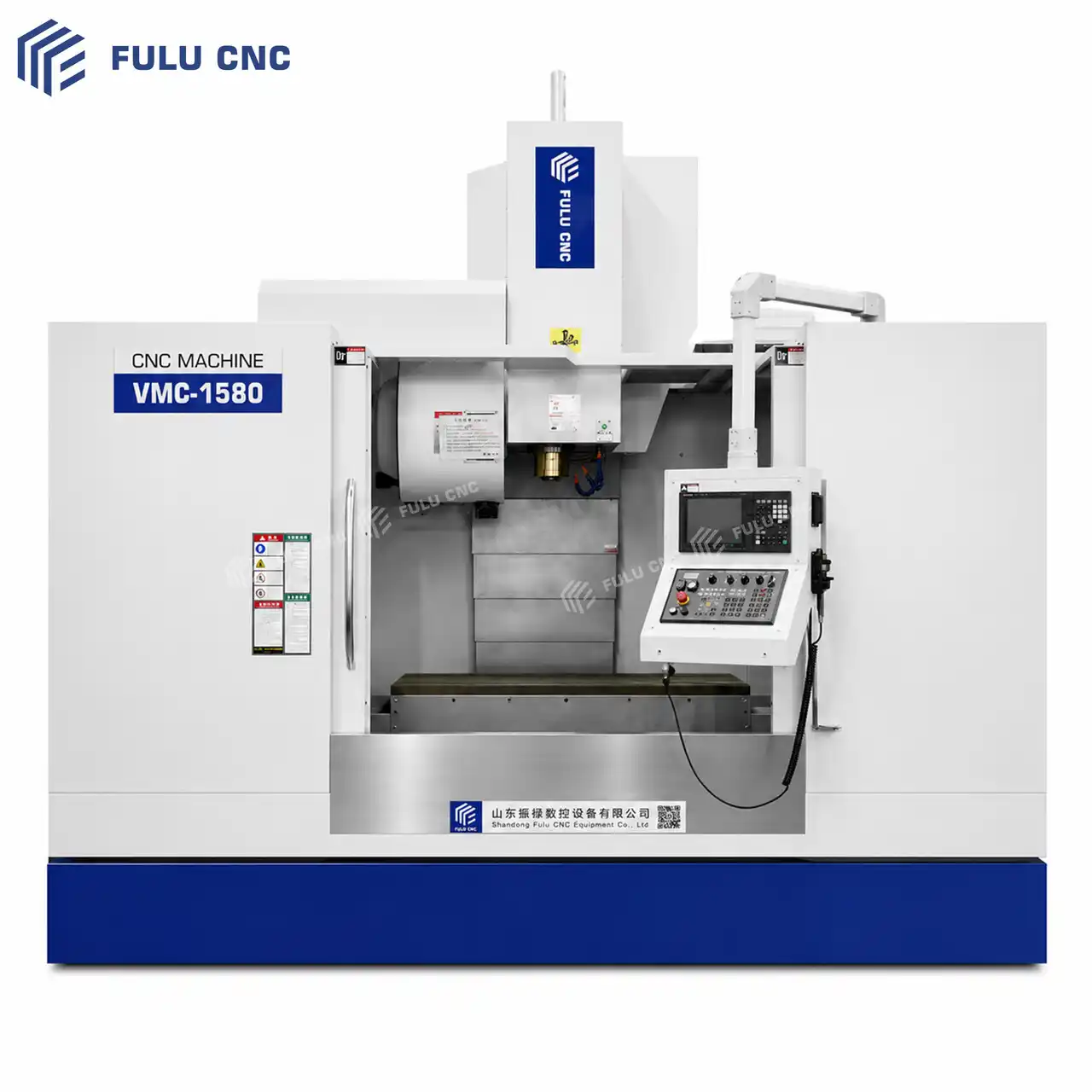

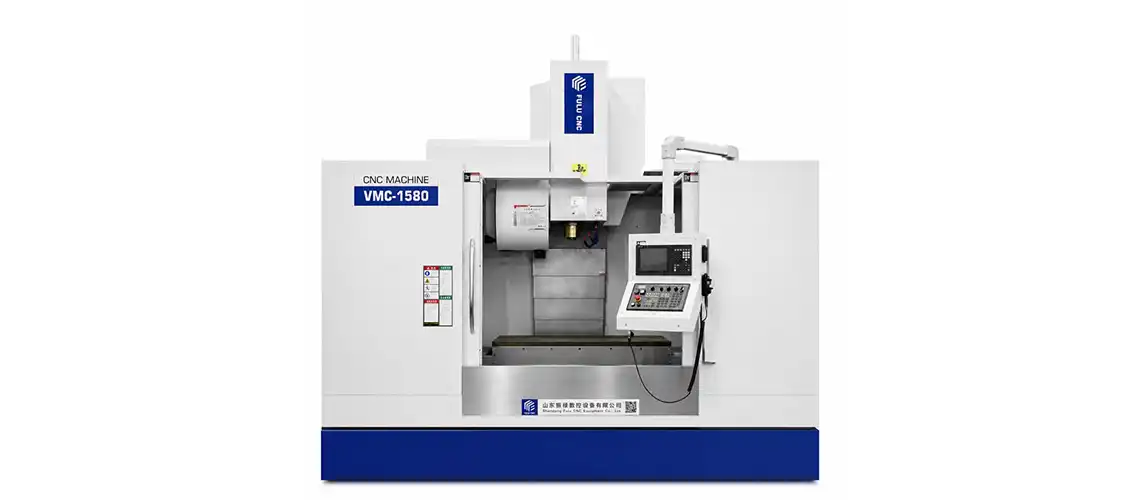

Project: VMC1580
Unit
Parameter
Table Size
mm
1700x800
X/Y/Z Axis Travel
mm
1500/800/700
Distance from Spindle End Face to Table
mm
160-860
Distance from Spindle Center to Column
mm
855
Maximum Load on Table
Kg
1500
T-Slots on Table
mm
5-22*135
X/Y/Z Axis Rapid Feed
m/min
26/26/20
X/Y/Z Guide Rail Specifications
mm
X: RGH55 6 Block Y: RGH55 4 Rail Z: Plastic Coated Hard Rail
Positioning Accuracy
mm
±0.008
Repeat Positioning Accuracy
mm
±0.006
Minimum Positioning Unit
mm
±0.001
Maximum Spindle Speed
rpm
6000 (Spindle Oil Cooling)
Spindle Taper
mm
BT50
Disc Robot Tool Magazine
pcs
24T
Controller System
/
GSK25i System
Three Axis Motor Power
Nm
28/35/35
Spindle Motor Power
Kw
18.5KW
Machine Weight Approximately
T
12
Serial Number
Configuration Content
Serial Number
Configuration Content
1
Cutting Cooling System
13
Machine Internal Cleaning Device: Chip Blower, Water Gun
2

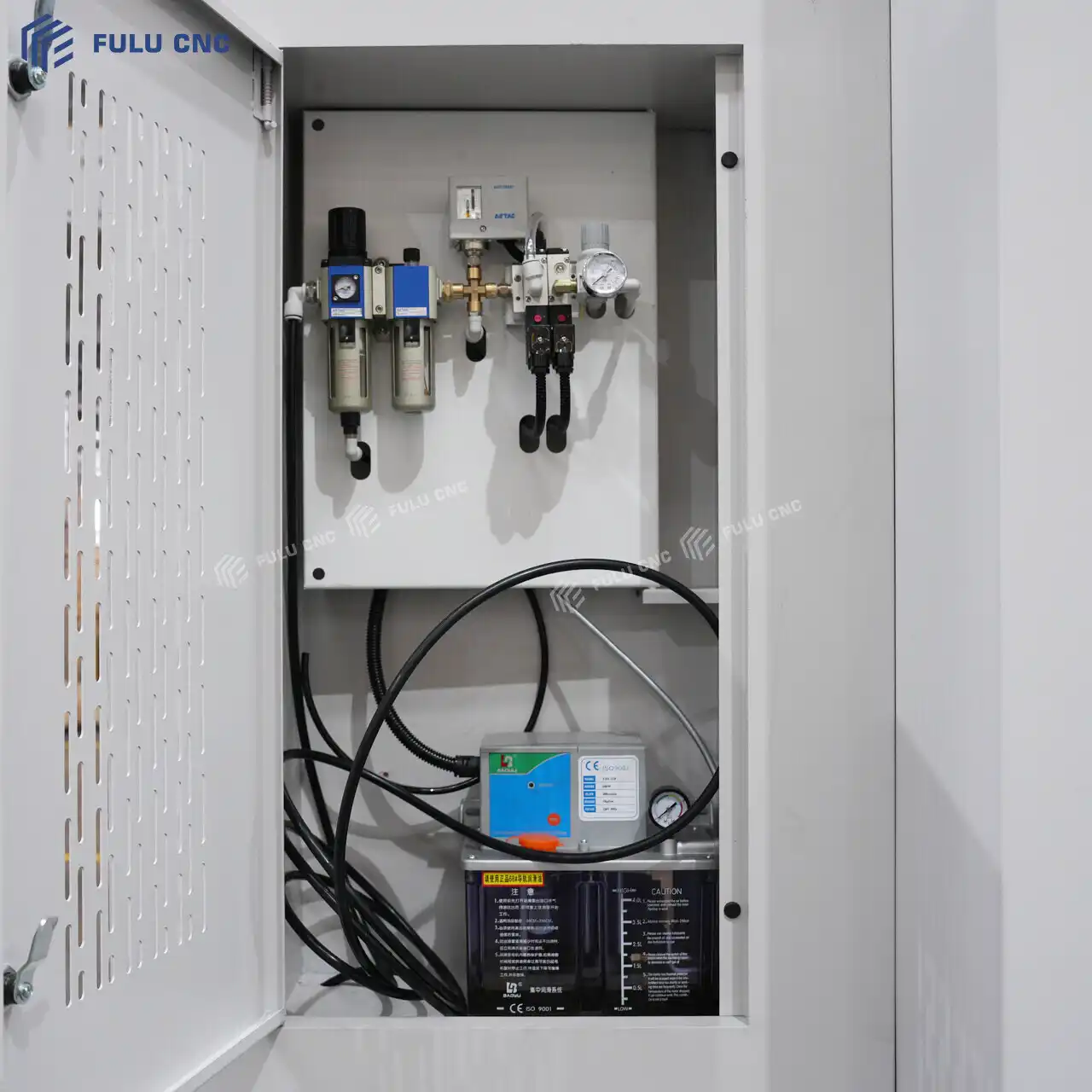

Automatic Lubrication System
14
Manual Pulse Generator: Handwheel
3
Cutting Blowing Device
15
External Network Transmission Interface
4
Spindle and Servo Overload System Protection
16
Three-Axis Telescopic Protective Cover (Full Cover Inner Sheet Metal)
5
Three-Color Alarm Light
17
External Protection High-Grade Painted Sheet Metal
6
Horizontal Adjustment Bolt and Spacer
18
Rigid Tapping
7
Electrical Box Heat Exchanger
19
Precision Inspection Certificate
8
Three-Axis Screw Pre-Tensioning Device
20
Electrical Manual
9
Program Storage
21
User Manual
10
Spindle Ring Water Spray
22
Program Operation Manual
11
Reserved for Adding Four-Axis Interface
23
Air Curtain Protection
12
Machine Internal Work Light
24
Chassis Powerful Chip Removal, Dual Water Pumps
Standard Configuration The GSK control system is known for its stability, reliability, ease of operation, and cost-effectiveness, and is widely used in CNC lathes, vertical machining centers, and other CNC equipment. The system features high-speed computing capabilities and precise interpolation control, enabling high-precision and high-efficiency machining, ensuring consistent workpiece dimensions and surface quality. The Chinese operation interface is intuitive and easy to learn, with convenient programming, helping operators quickly get started and reducing training costs. Additionally, the GSK control system offers strong compatibility, stable operation, low failure rates, ample spare parts supply, and comprehensive after-sales service, effectively reducing equipment maintenance costs. The 24-tool disc magazine features large capacity, fast tool change speed, and stable operation, meeting the needs of complex parts with multi-process continuous machining. Equipped with an Automatic Tool Changer (ATC) system, it can quickly and accurately complete tool switching, effectively reducing auxiliary processing time and significantly improving production efficiency. The tool magazine can store various specifications of tools, supporting multiple machining processes such as drilling, milling, tapping, and boring in one setup, reducing repeated clamping, and improving machining accuracy and product consistency. With a compact structure, reliable operation, and easy maintenance, it effectively reduces manual labor intensity and is widely used in mold manufacturing, automotive parts, aerospace, mechanical processing, and precision parts production. It is an important configuration for enhancing the automation level and machining efficiency of vertical machining centers. The external cooling system precisely sprays coolant onto the cutting area between the tool and the workpiece through nozzles, effectively reducing cutting temperature, minimizing tool wear, extending tool life, and improving machining stability. Continuous cooling and lubrication can effectively enhance the surface quality of the workpiece, reduce thermal deformation, and ensure machining accuracy. At the same time, the coolant can promptly wash away chips, preventing chip accumulation from affecting the machining process and improving machining efficiency. The external cooling system features a simple structure, easy maintenance, and cost-effectiveness, making it suitable for various machining processes such as turning, milling, drilling, and tapping. It is widely used in vertical machining centers and various metal cutting equipment, serving as a practical configuration to improve machining quality and production efficiency. The high-precision spindle is one of the core components of CNC machine tools, featuring high rotational speed, strong rigidity, stable operation, and high machining accuracy. By using high-quality bearings and precision assembly processes, it effectively reduces vibration and noise, maintaining stable performance during high-speed and heavy cutting, ensuring workpiece dimensional accuracy and surface finish. The spindle has excellent load-bearing capacity and heat dissipation performance, allowing for long-term continuous stable operation, extending service life, and reducing maintenance costs. Additionally, various spindle speeds and taper specifications can be selected according to different machining requirements, making it widely applicable to turning, milling, drilling, tapping, and other machining processes, meeting the demands for high-efficiency and high-precision machining in industries such as mold manufacturing, automotive parts, aerospace, mechanical processing, and precision parts production.
GSK Control System

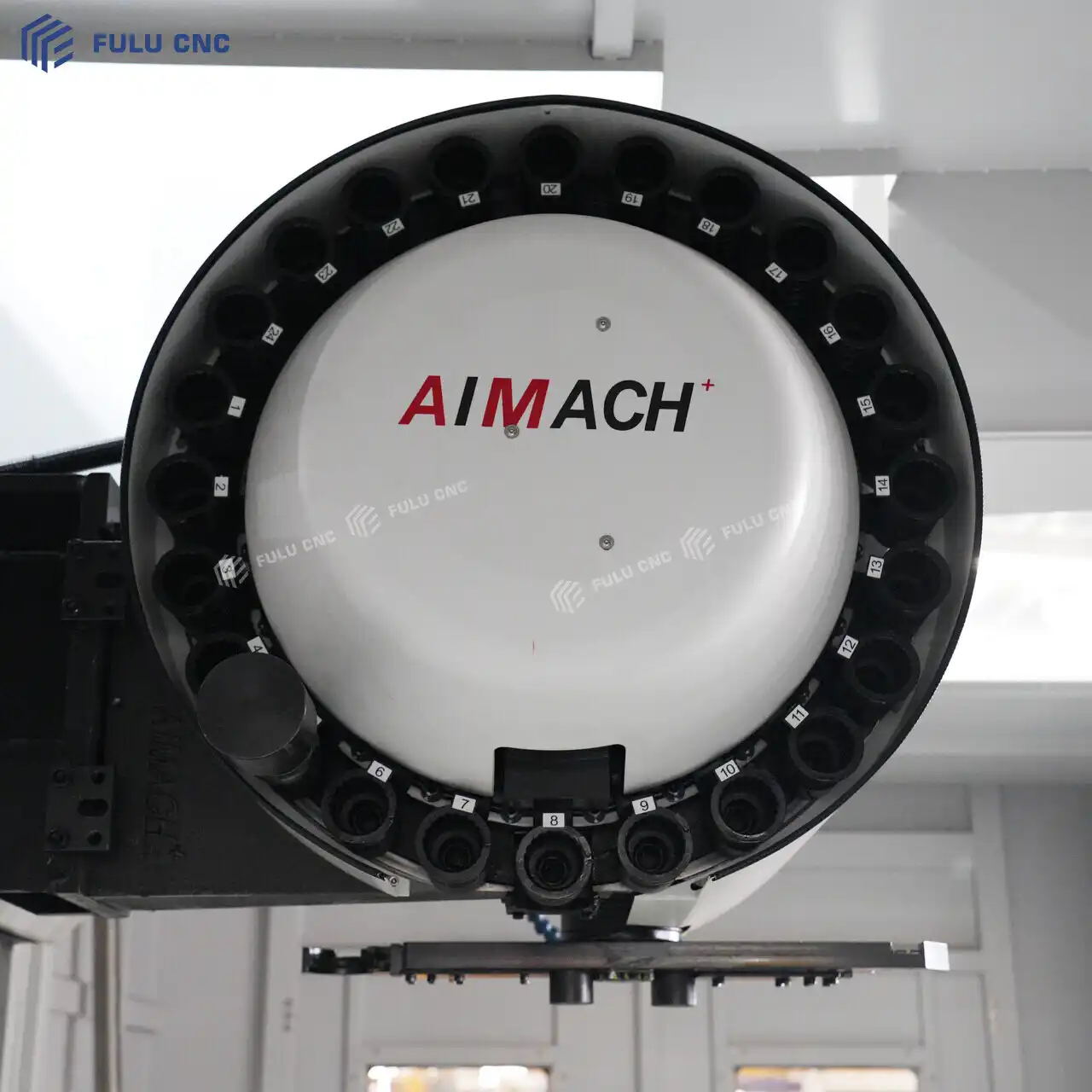

24-Position Circular Tool Magazine
Cooling System

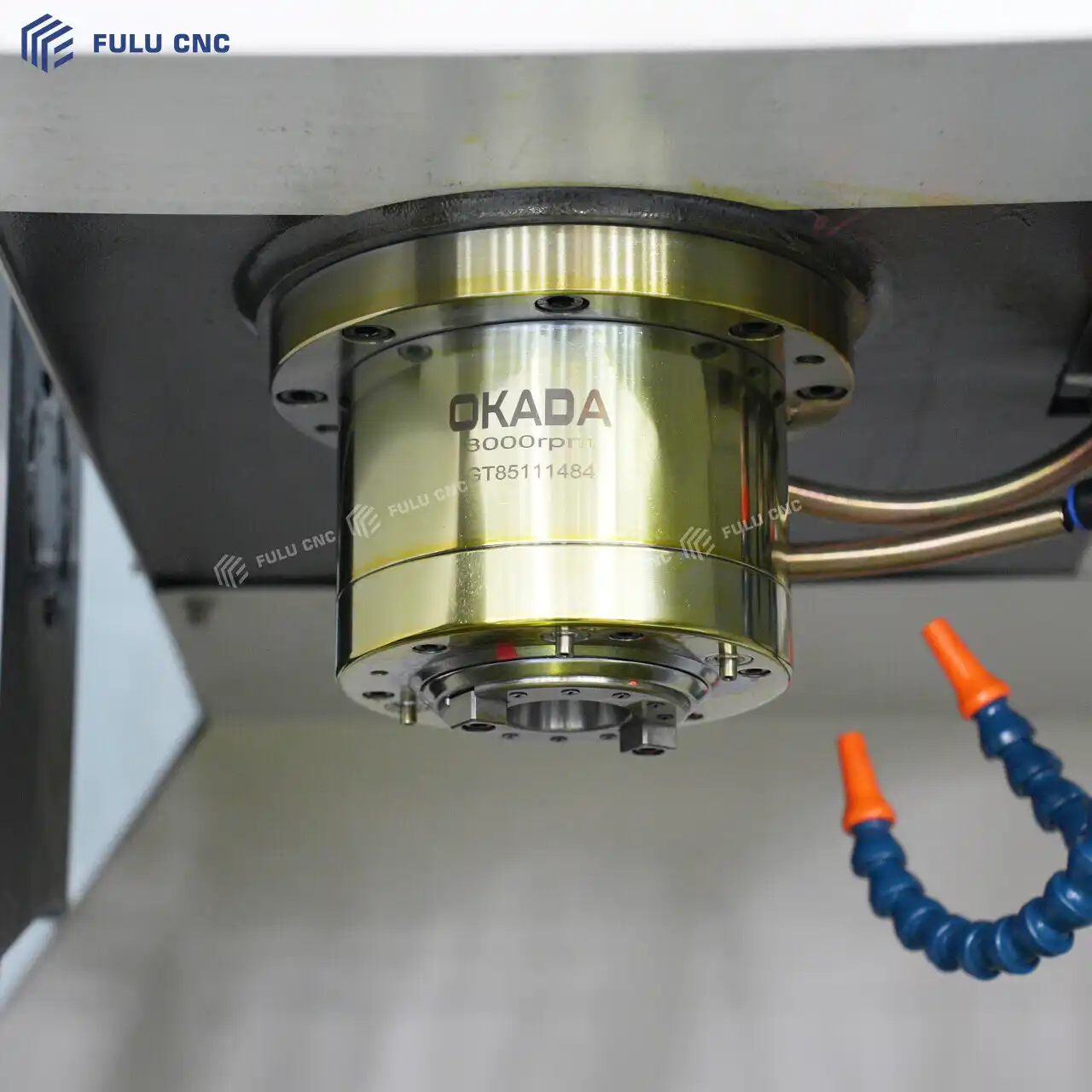

Spindle
You can choose the control system you need according to your production requirements.
You can choose the cooling method you need according to your production requirements.
You can choose the configuration you need according to your production requirements.
The machining center can display processed parts.
Processable Parts
FULU CNC operates a modern manufacturing facility with advanced production equipment, professional assembly lines, and a strict quality control system. Every CNC machine undergoes precision machining, careful assembly, accuracy inspection, and comprehensive performance testing before delivery. Our commitment to quality, reliability, and continuous innovation enables us to provide high-performance CNC machine solutions that meet the diverse needs of customers around the world.
Factory Strength
Advanced CNC Machine Factory
Advanced manufacturing equipment, professional assembly lines, and strict quality control ensure every CNC machine delivers reliable performance, high precision, and consistent quality.
Precision Machine Structure
Every machine frame is precision machined and carefully inspected to ensure superior rigidity, dimensional accuracy, and long-term machining stability.
Vertical Machining Center
Advanced CNC technology, a rigid machine structure, and reliable performance ensure efficient, accurate, and stable machining for demanding industrial applications.
Argentinian Customer Visit
Our customer from Argentina visited the FULU CNC factory to inspect machine quality, explore our manufacturing process, and discuss future cooperation.
Brazilian Customer Visit
Our Brazilian customer toured our factory, experienced machine demonstrations, and discussed customized CNC solutions to support future cooperation and business growth.
Mexican Customer Visit
Our customer from Mexico visited our factory to inspect machine production, evaluate product quality, and discuss customized CNC solutions for future cooperation.
