What Is the Difference Between Flat Bed CNC Lathes and Slant Bed CNC Lathes?

Flat bed CNC lathes and slant bed CNC lathes are two of the most common turning machines used in modern manufacturing. Both can machine shafts, sleeves, flanges, discs, and many other metal parts.

Many buyers ask the same question:Which type of lathe is the right choice for my factory?The answer depends on your products, production volume, and budget.

Although both machines perform turning operations, they differ in bed design, machining performance, and automation. Understanding these differences will help you choose the right equipment and avoid unnecessary costs.

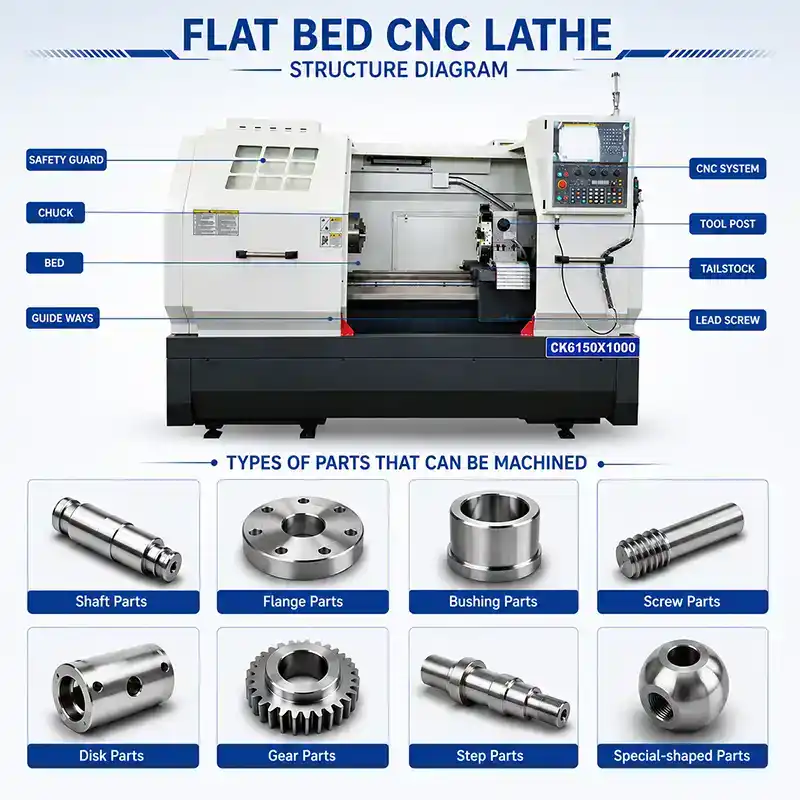

What Is a Flat Bed CNC Lathe?

A flat bed CNC lathe uses a traditional horizontal bed. The guide rails are parallel to the floor, and the spindle and tailstock are positioned on the same horizontal line.

This design has been used for decades because it is reliable, easy to maintain, and cost-effective.These machines are ideal for machining shafts, sleeves, flanges, discs, and other standard parts. They are widely used in machine shops, maintenance workshops, and small to medium batch production.

Modern CNC technology has further improved their performance. Today's machines provide automatic programming, stable accuracy, and simple operation while maintaining an excellent price-to-performance ratio.

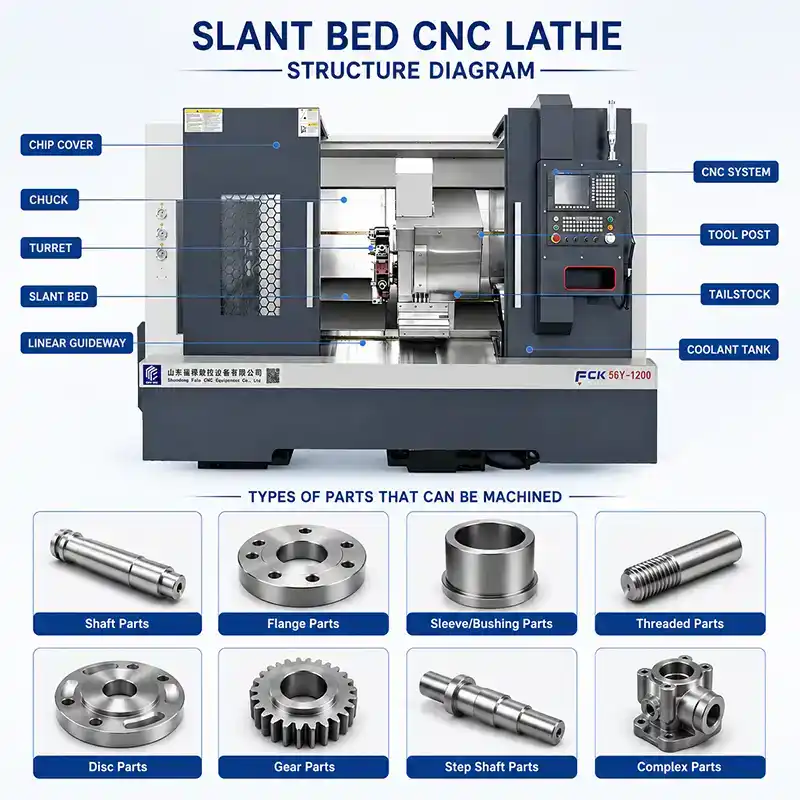

What Is a Slant Bed CNC Lathe?

A slant bed CNC lathe features an integrated inclined bed. Common bed angles include 30°, 45°, and 60°. Models such as FCK40 and FCK56 use this design.Compared with a flat bed machine, a slant bed model offers a more compact structure and greater rigidity.Chip removal is one of its biggest advantages. During cutting, chips fall directly into the chip conveyor under gravity. This keeps the machining area clean and reduces maintenance.Most slant bed machines also support hydraulic chucks, hydraulic tailstocks, servo or powered turrets, automatic bar feeders, and robotic loading systems. These options make them well suited for automated production.

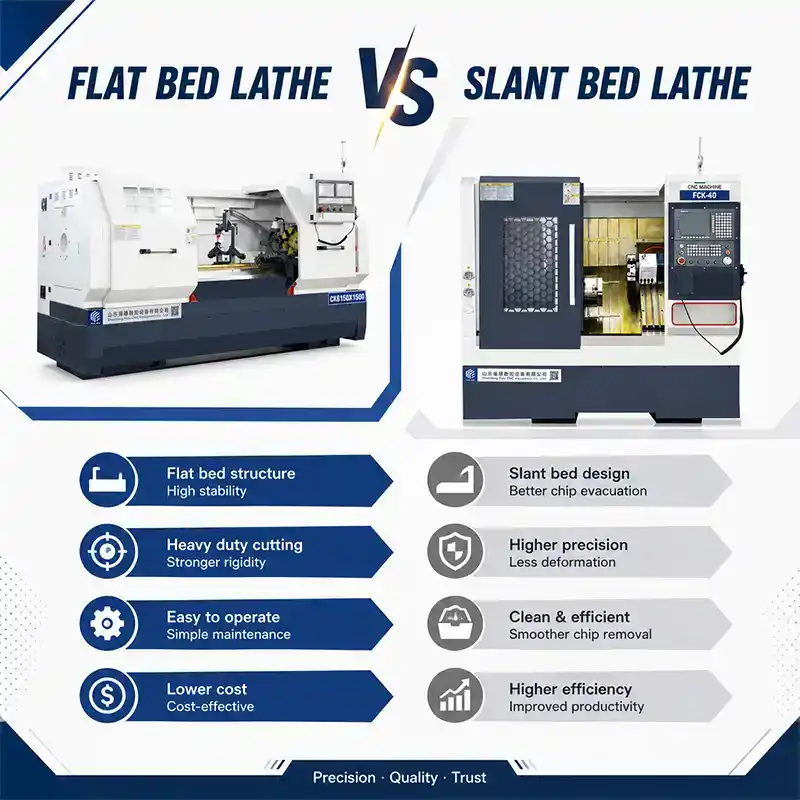

Differences Between Flat Bed Lathes and Slant Bed Lathes

Bed Structure

A flat bed CNC lathe has a horizontal bed. The design is simple, easy to maintain, and provides good support for large workpieces.

A slant bed machine uses an inclined structure. The spindle, turret, and guide rails create a stronger load path, allowing cutting forces to transfer directly to the machine bed. This improves rigidity and reduces vibration.The inclined design also helps chips slide away naturally, allowing the machine to run longer with less manual cleaning.

Machining Performance

Flat bed CNC lathes offer a mature design and lower purchase cost. They are suitable for most standard turning applications and are a practical choice for small to medium production.

Slant bed machines are designed for higher efficiency. Their rigid structure provides better stability during high-speed or heavy-duty cutting.

They also support automatic chip removal and can be equipped with hydraulic chucks, powered turrets, automatic feeders, and other automation options. These features make them a better fit for modern manufacturing.

Machining Accuracy

For most standard turning tasks, a flat bed CNC lathe delivers stable accuracy and reliable performance.However, vibration becomes more noticeable during high-speed or heavy cutting.A slant bed CNC lathe performs better under these conditions. Its rigid structure keeps cutting forces more stable, resulting in higher dimensional accuracy and a better surface finish.This advantage is especially important in industries such as automotive manufacturing, aerospace, and precision engineering.

How Should You Choose?

If your company mainly machines standard shafts, sleeves, flanges, and similar parts in small or medium batches, a flat bed CNC lathe is an economical and practical solution. It is affordable, easy to operate, and simple to maintain.

If your business requires high precision, continuous production, or automation, a slant bed CNC lathe is the better choice. It is widely used in automotive, aerospace, medical equipment, and other industries that demand consistent quality.

These machines can also work with robots, automatic feeders, and MES systems, making future production upgrades much easier.There is no single machine that fits every application. The best choice depends on your workpieces, production volume, accuracy requirements, and long-term manufacturing plans.
