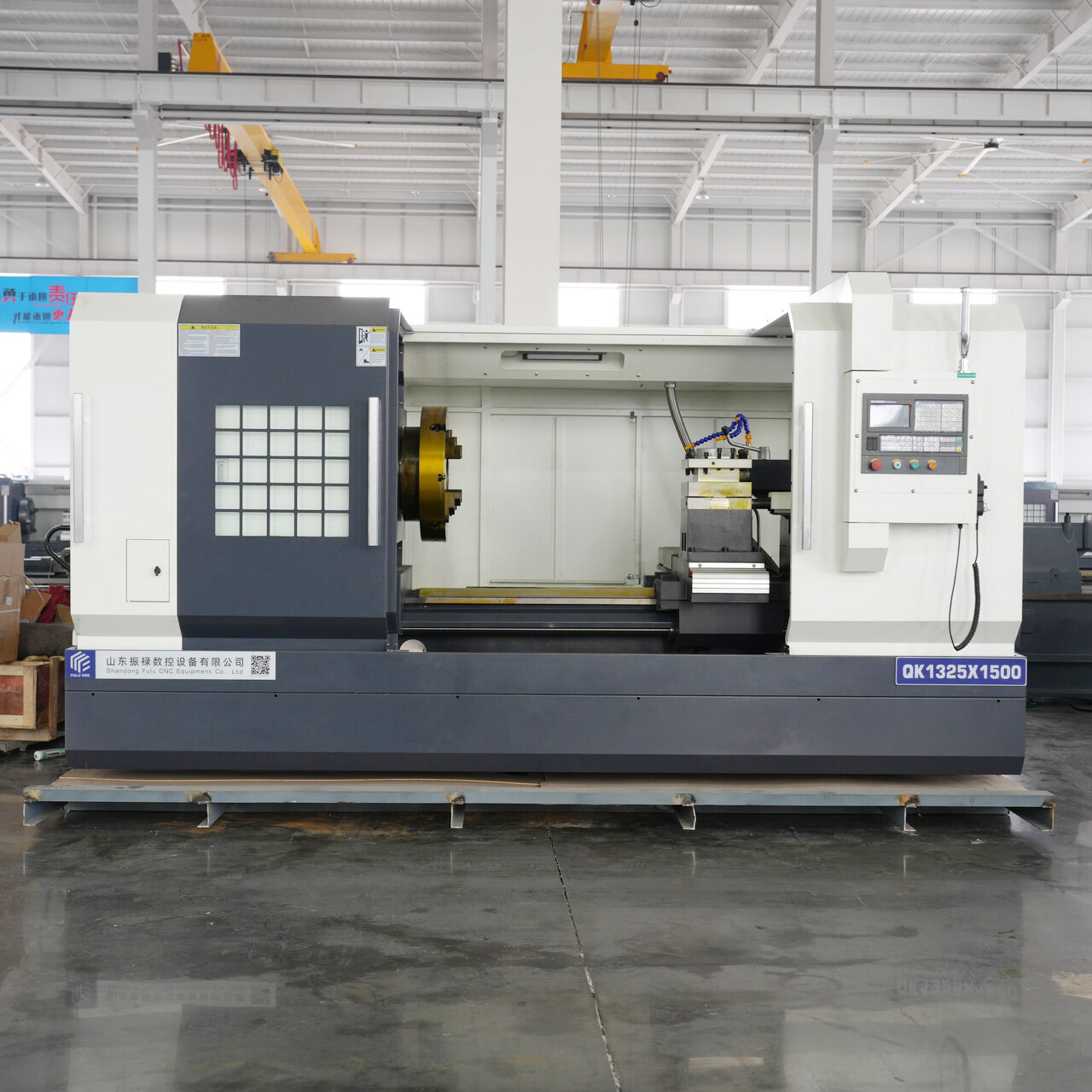

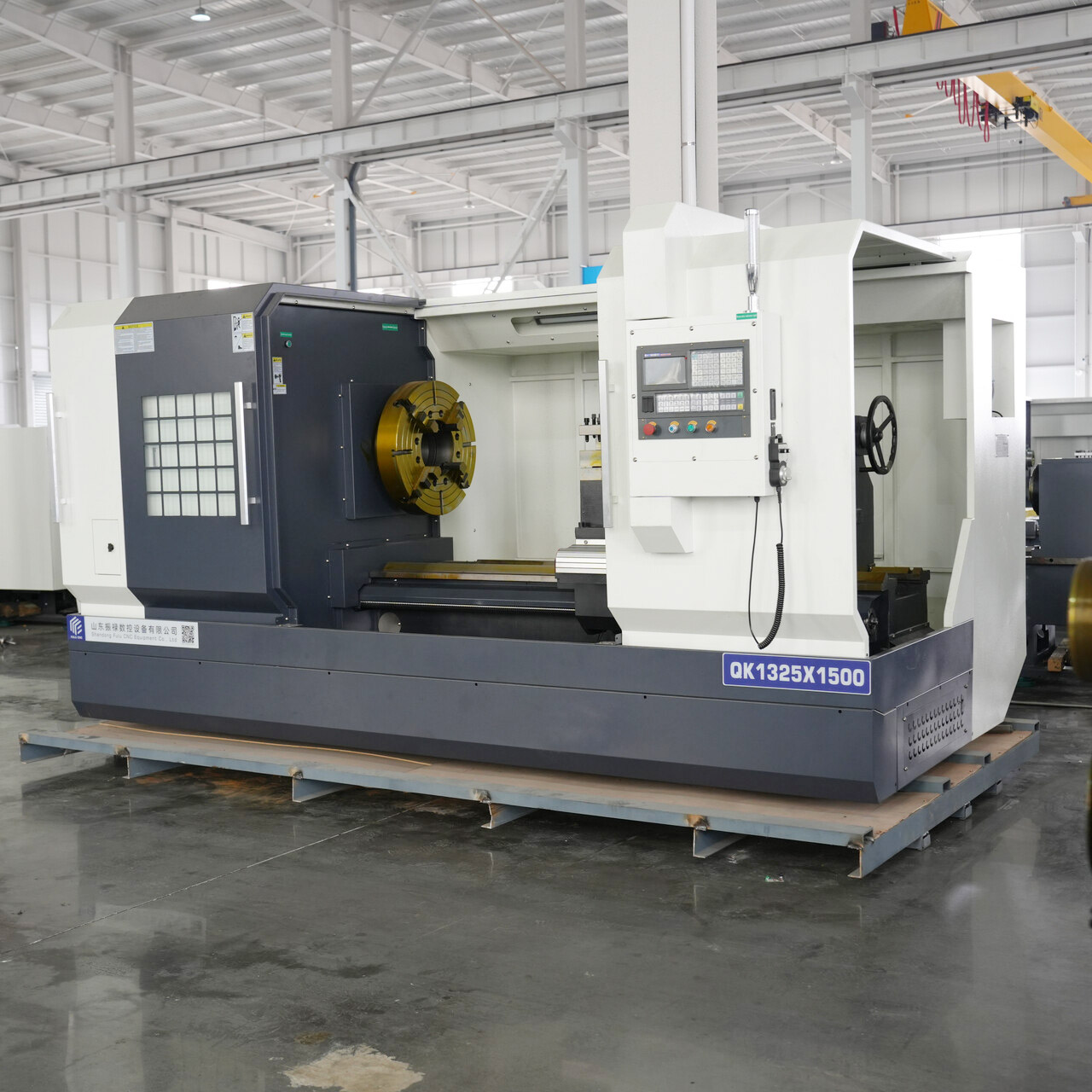

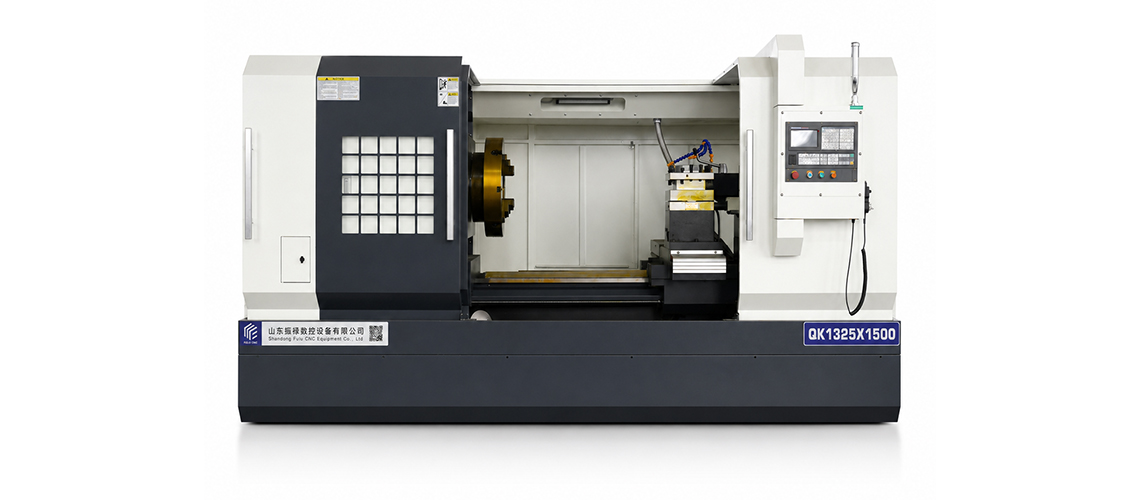

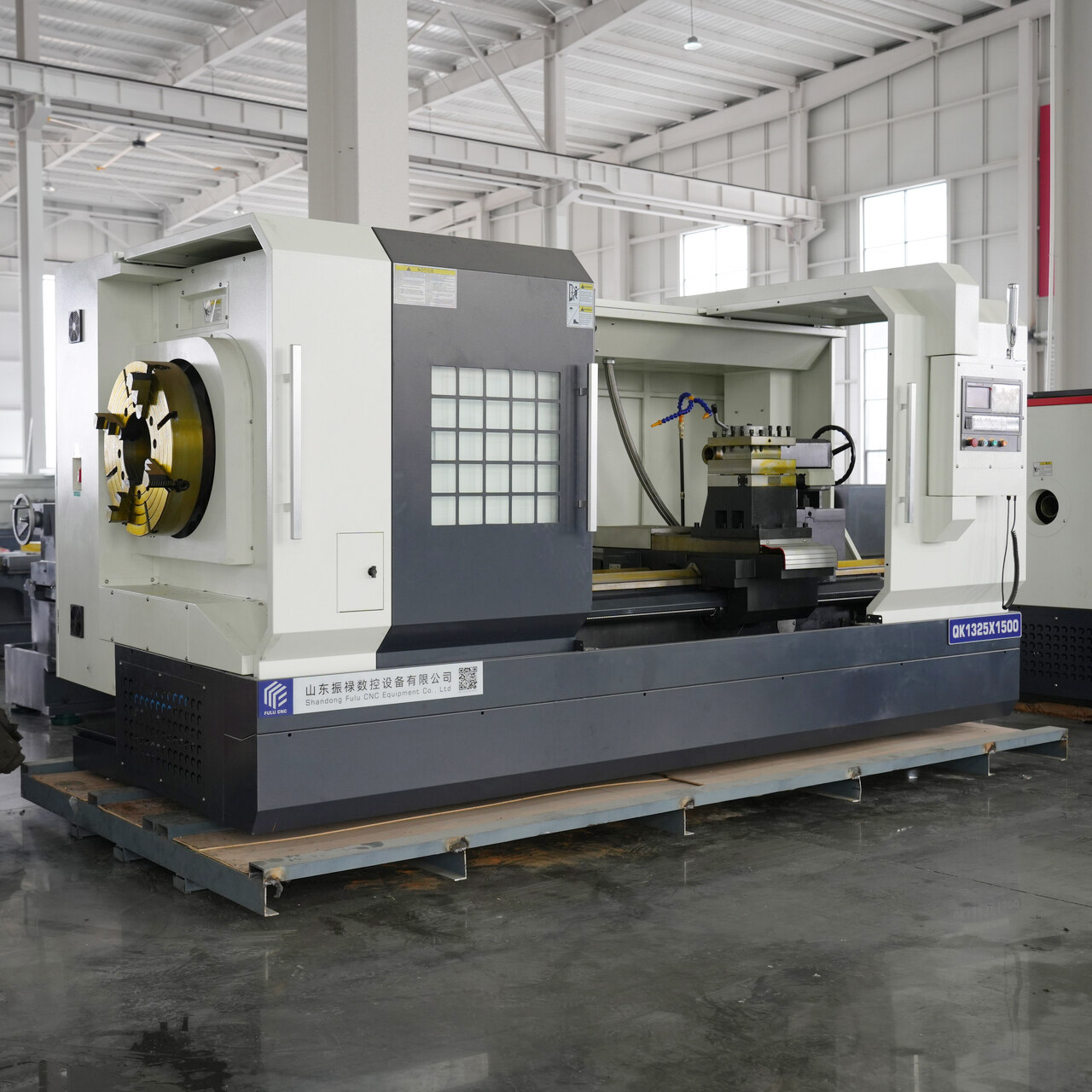

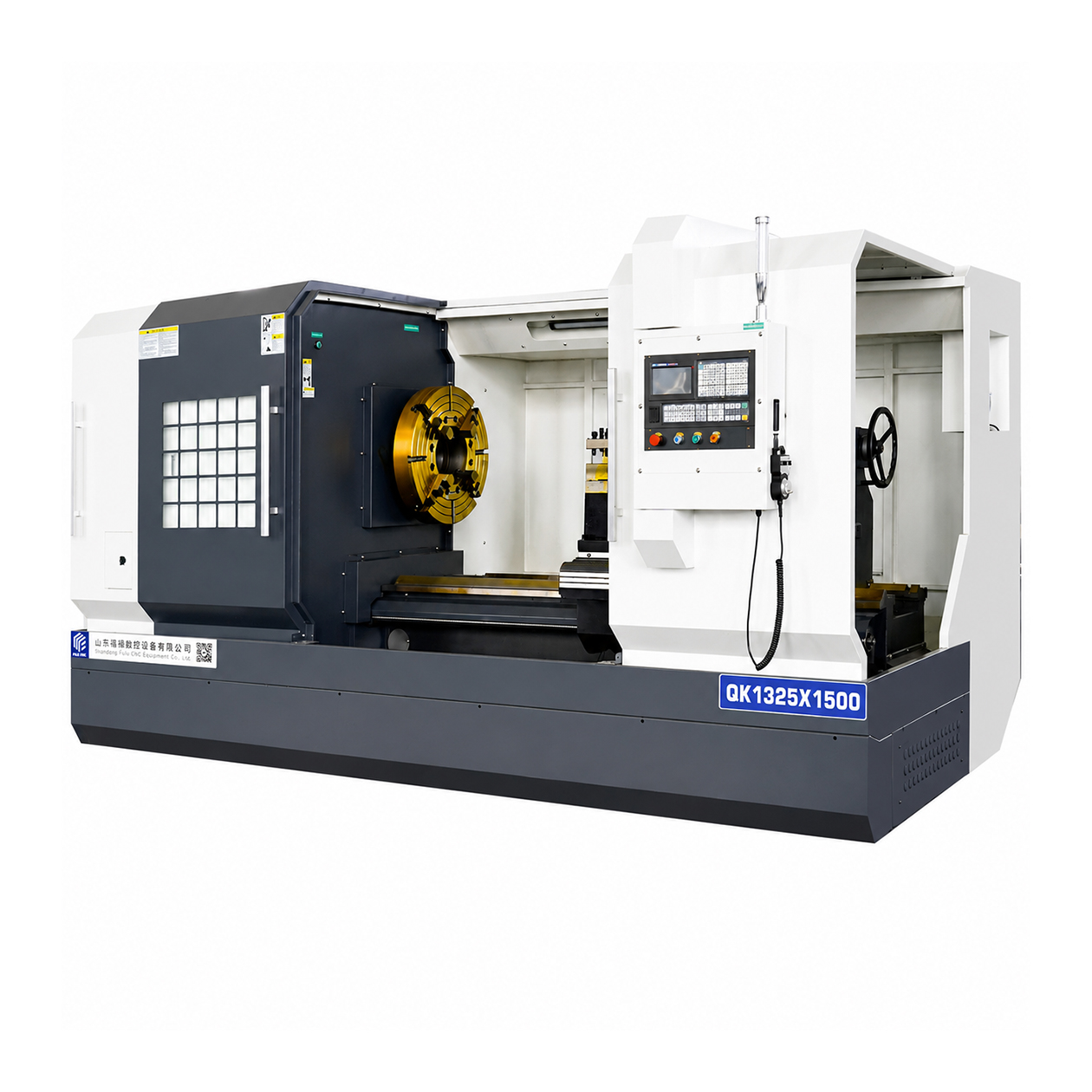

CNC Lathe
Basic Parameters
Project: QK1325-1500
Unit
Specification
Maximum workpiece rotation diameter on the bed
mm
800
Maximum workpiece rotation diameter on the tool holder
mm
480
Maximum workpiece length between centers
mm
1500
Effective processing length
mm
1350
Bed guide rail width
mm
600
Spindle through hole diameter
mm
Φ255
Spindle end code
-
A2-15
Spindle speed range (frequency conversion stepless speed regulation)
r/min
20-450

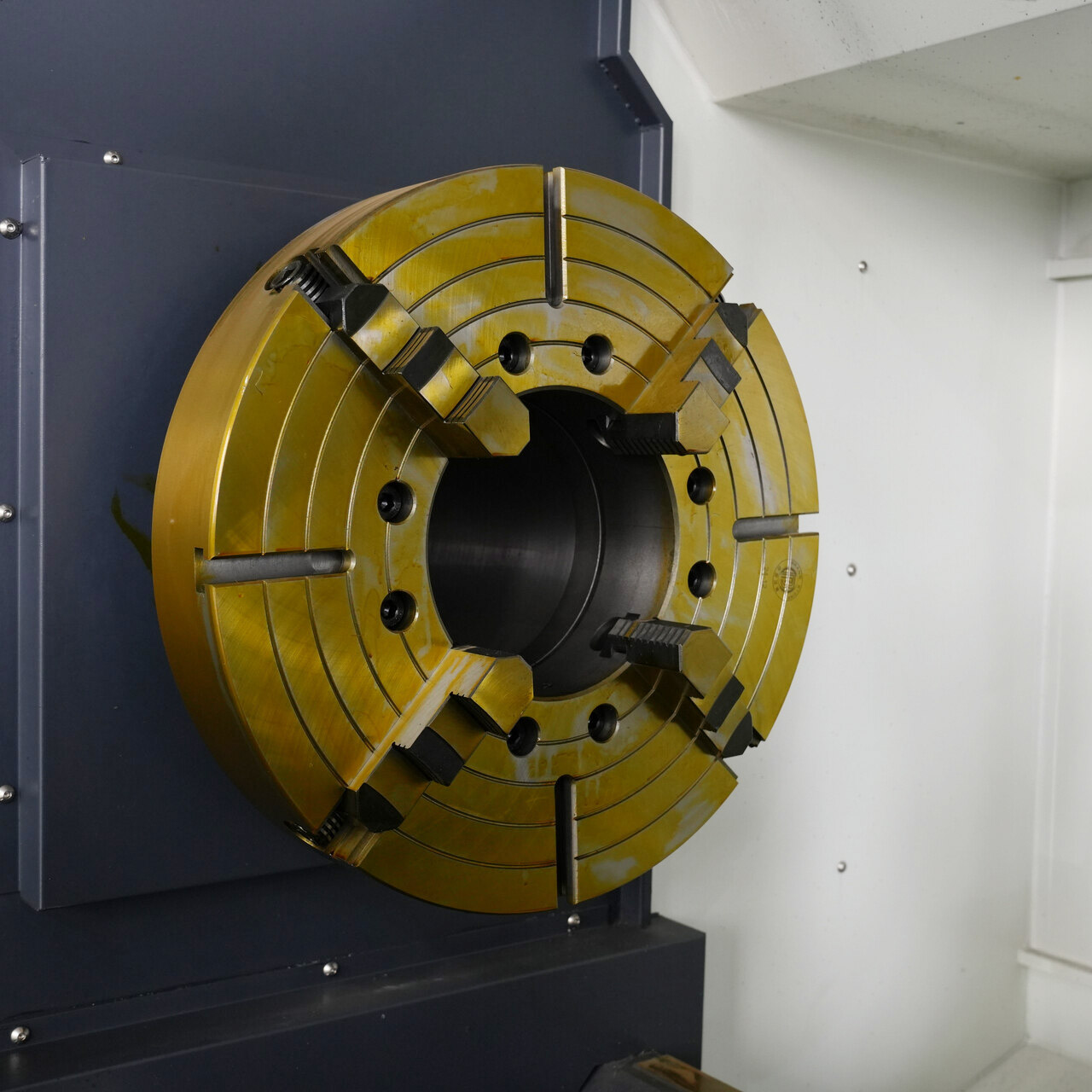

Chuck (manual four-jaw chuck)
mm
630
Main motor power
kW
15 / 18.5
Tool size
mm
32 × 32

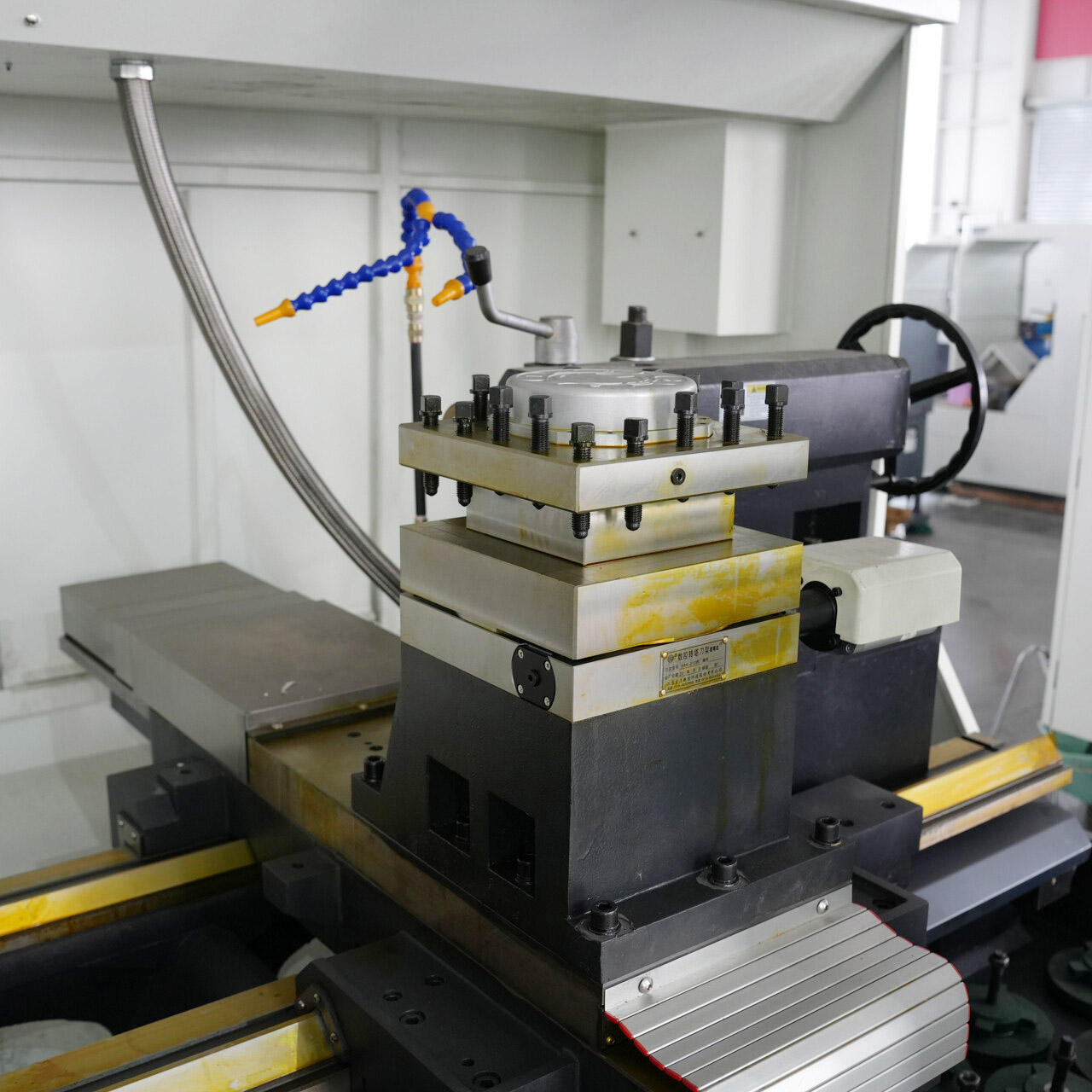

Electric tool holder
-
Vertical four-position tool holder
Maximum travel of the bed saddle (Z axis)
mm
1500
Maximum lateral travel of the tool holder (X axis)
mm
420
Z axis rapid movement speed
m/min
6
X axis rapid movement speed
m/min
4
X/Z axis servo torque
N·m
10/15 or 18.5/22

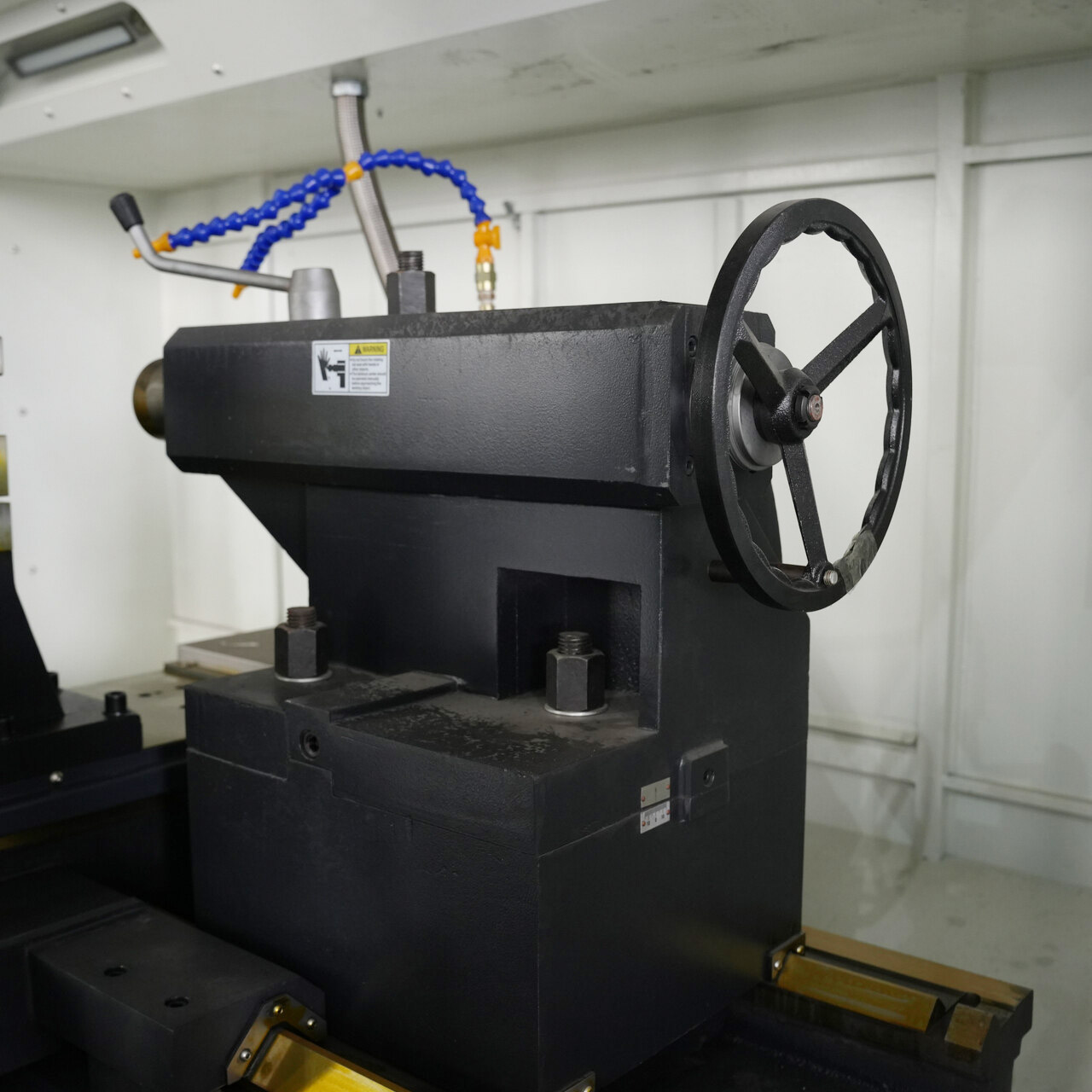

Tailstock sleeve diameter
mm
Φ100
Tailstock sleeve travel
mm
250
Tailstock sleeve taper hole
-
Morse Taper No. 6 (MT6)
Processing pipe diameter range
mm
Φ60-250
Maximum processing thread length
mm
1350
Machine dimensions (length × width × height)
mm
3800 × 2100 × 2100
Machine weight
kg
6500
Standard Configuration

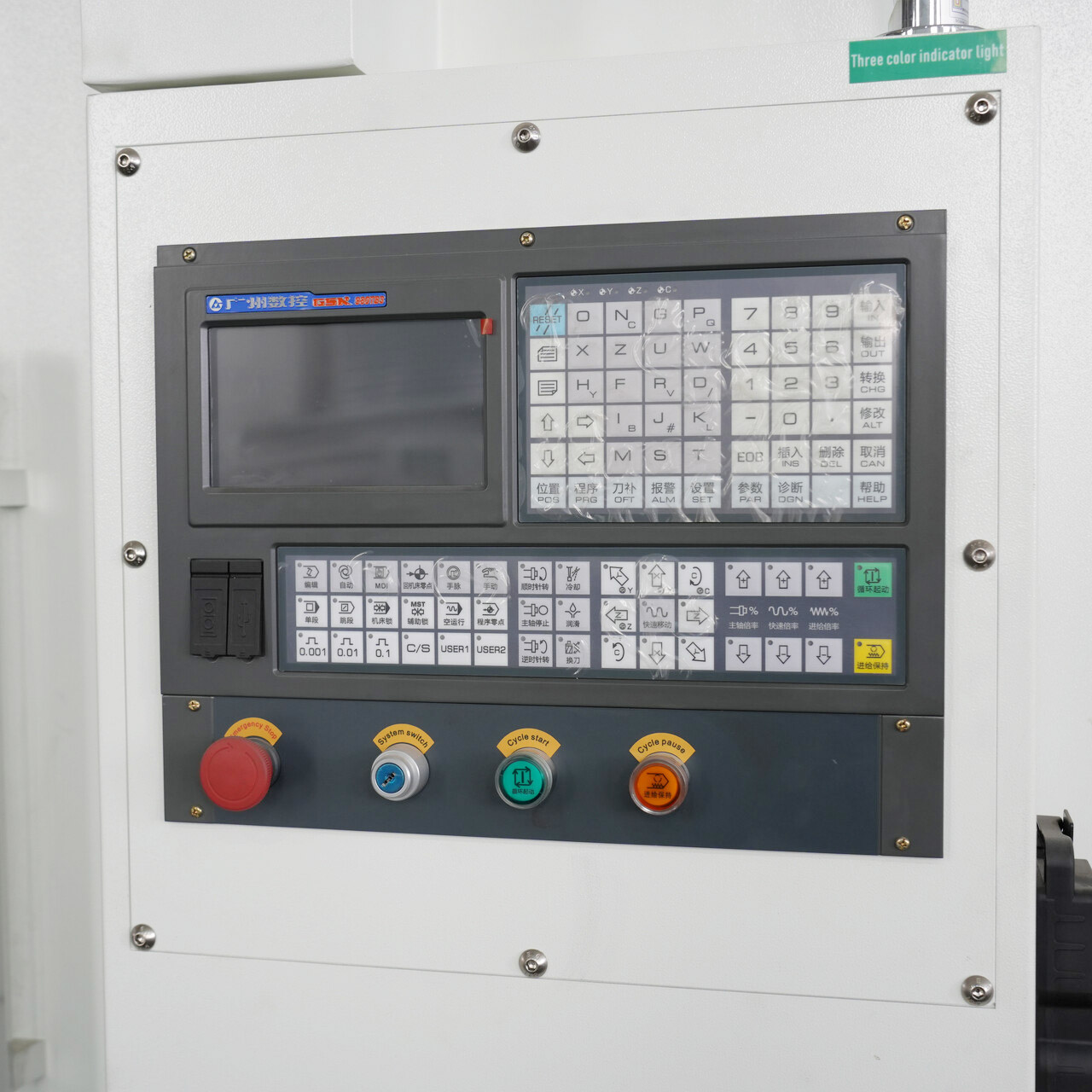

控制系统
三爪卡盘
四工位电动刀架
手动尾座
You can choose the control system you need according to your production requirements.
You can choose the tool holder you need according to your production requirements.
You can choose the tailstock you need according to your production requirements.
You can choose the chuck you need according to your production requirements.
CNC lathes are mainly used for processing metal parts, capable of machining some shaft-type and disc-type parts.
