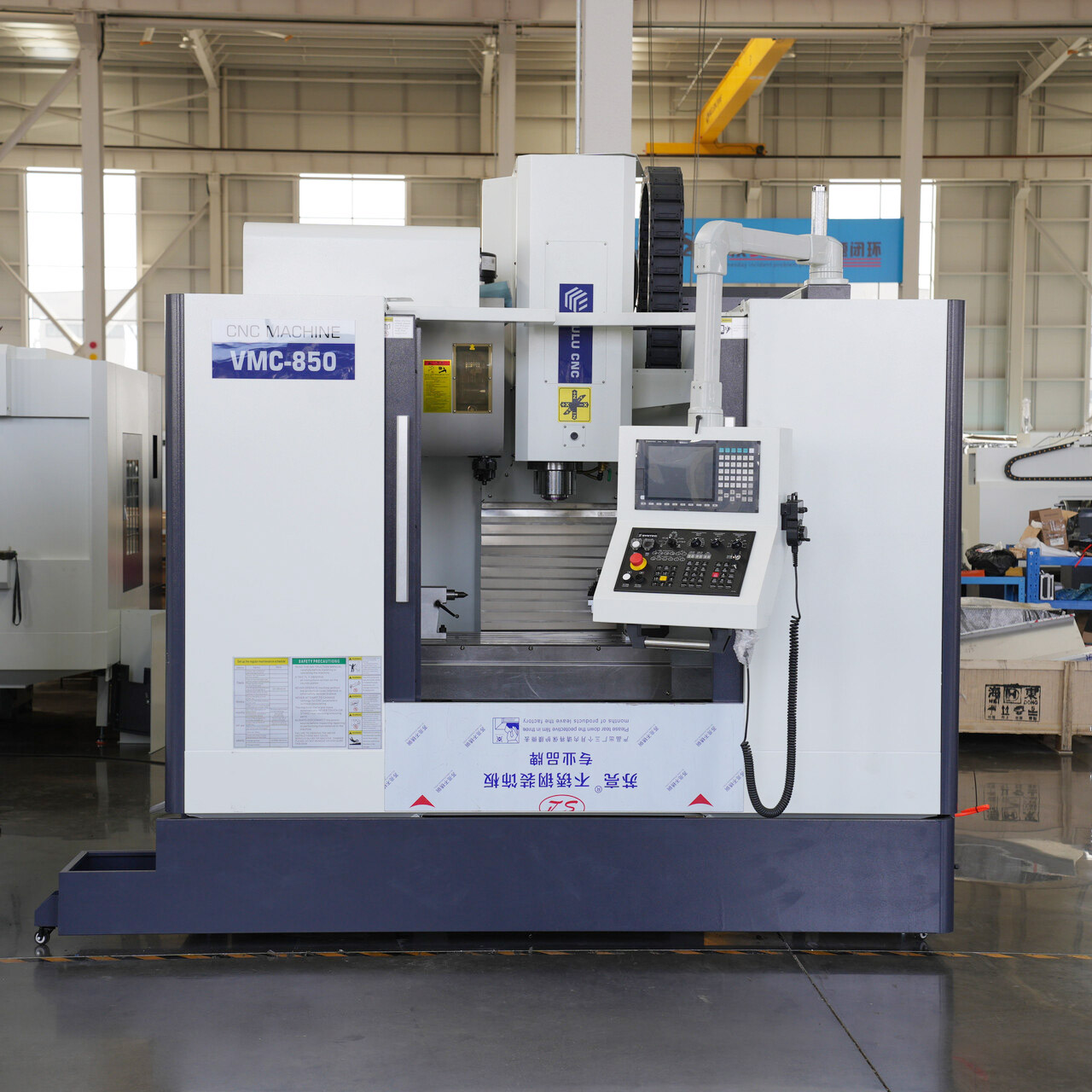

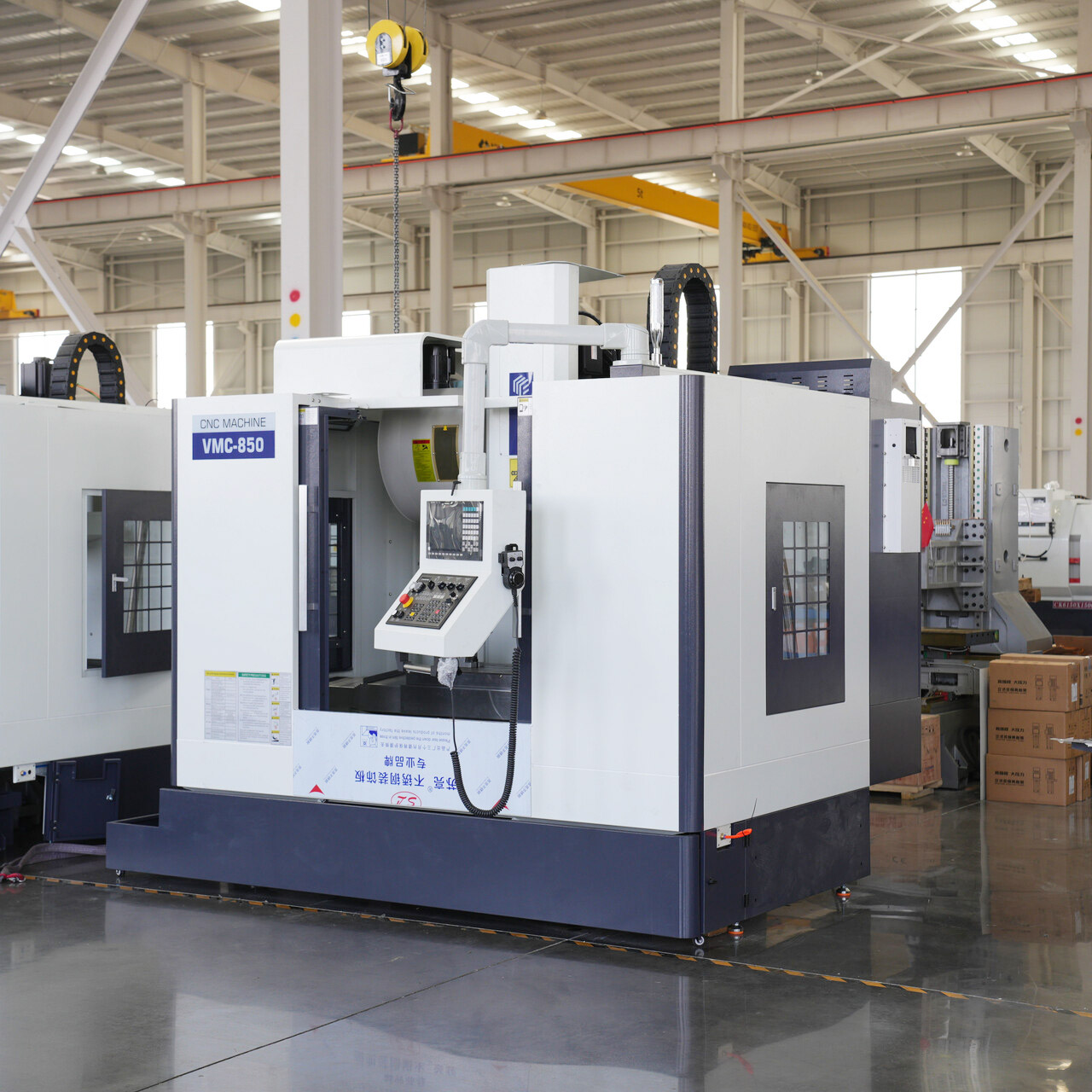

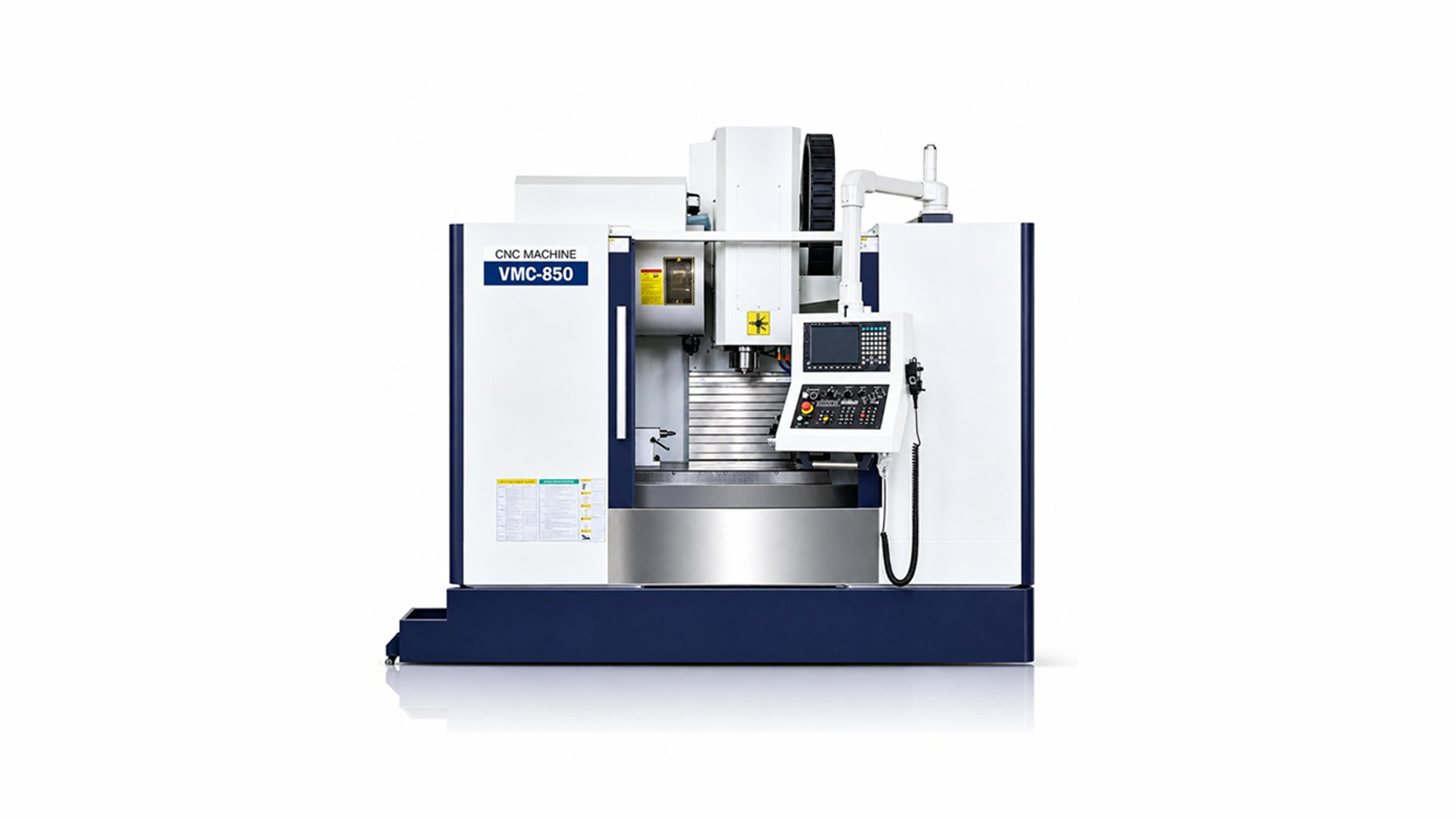

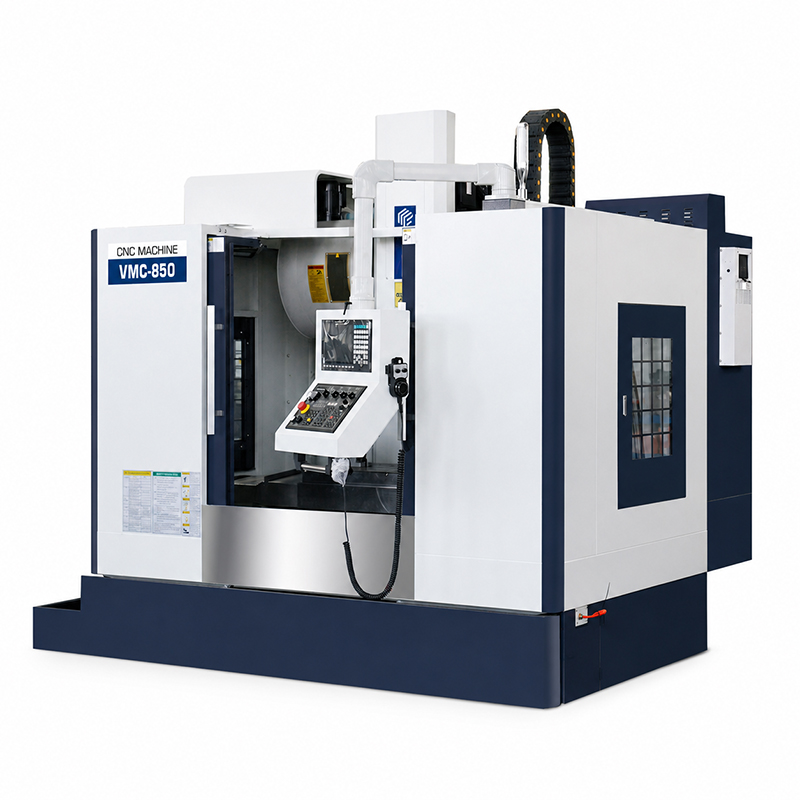

| Machine model: VMC855 | Unit | Specification |
| Table size | mm | 1000x500 |
| X/Y/Z axis travel | mm | 800/500/500 |
| Distance from spindle face to table | mm | 130-630 |
| Distance from spindle center to column | mm | 525 |
| Maximum load on table | Kg | 500 |
| T-slot on table | mm | 5-18x100 |
| X/Y/Z screw specifications | mm | φ4016 |
| Positioning accuracy | mm | ±0.008 |
| Repeat positioning accuracy | mm | ±0.005 |
| Minimum positioning unit | mm | ±0.001 |
| Four-axis accuracy | mm | ≤0.01 |

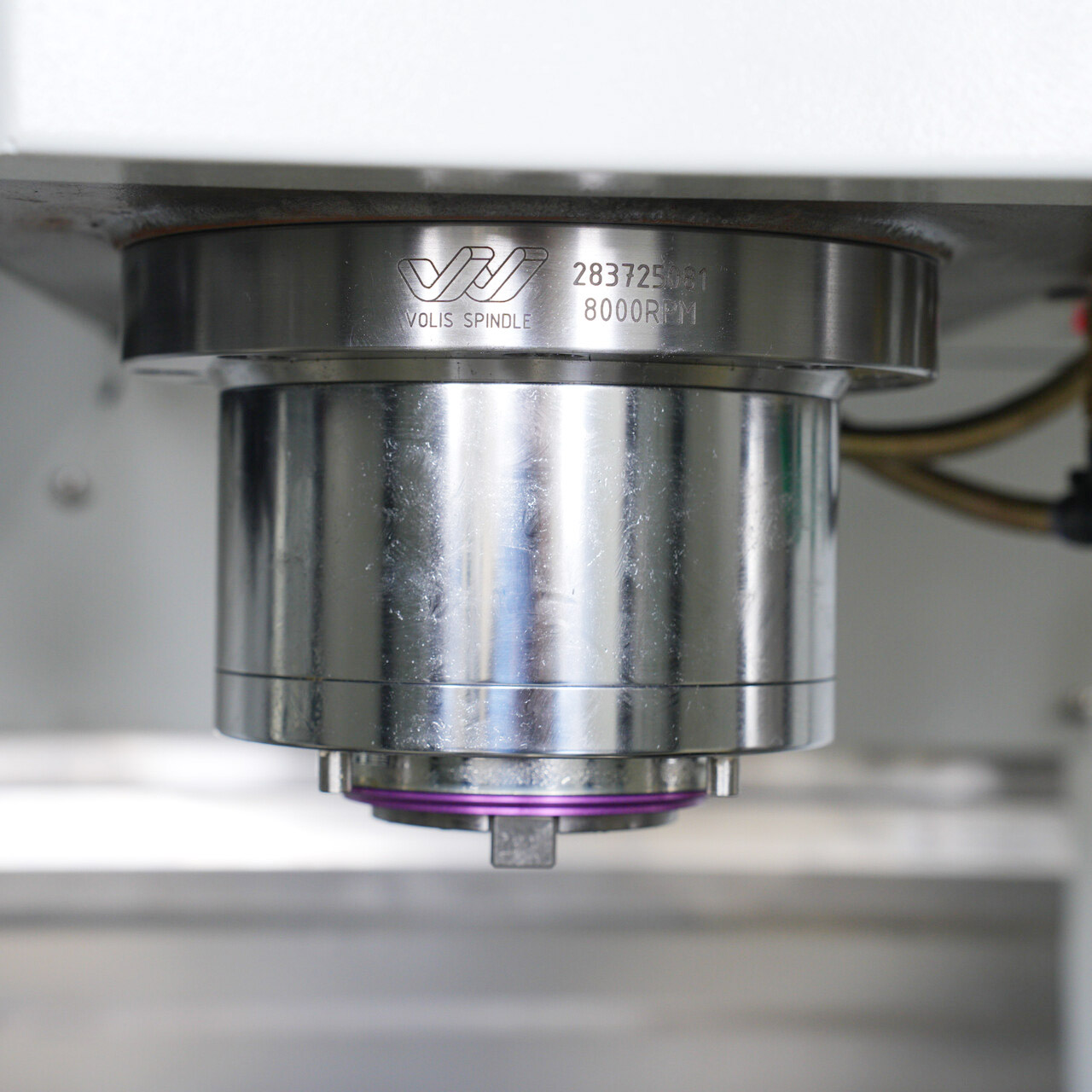

| Maximum spindle speed | rpm | 8000 (spindle ring spray) |
| Spindle taper | mm | BT40-150 |

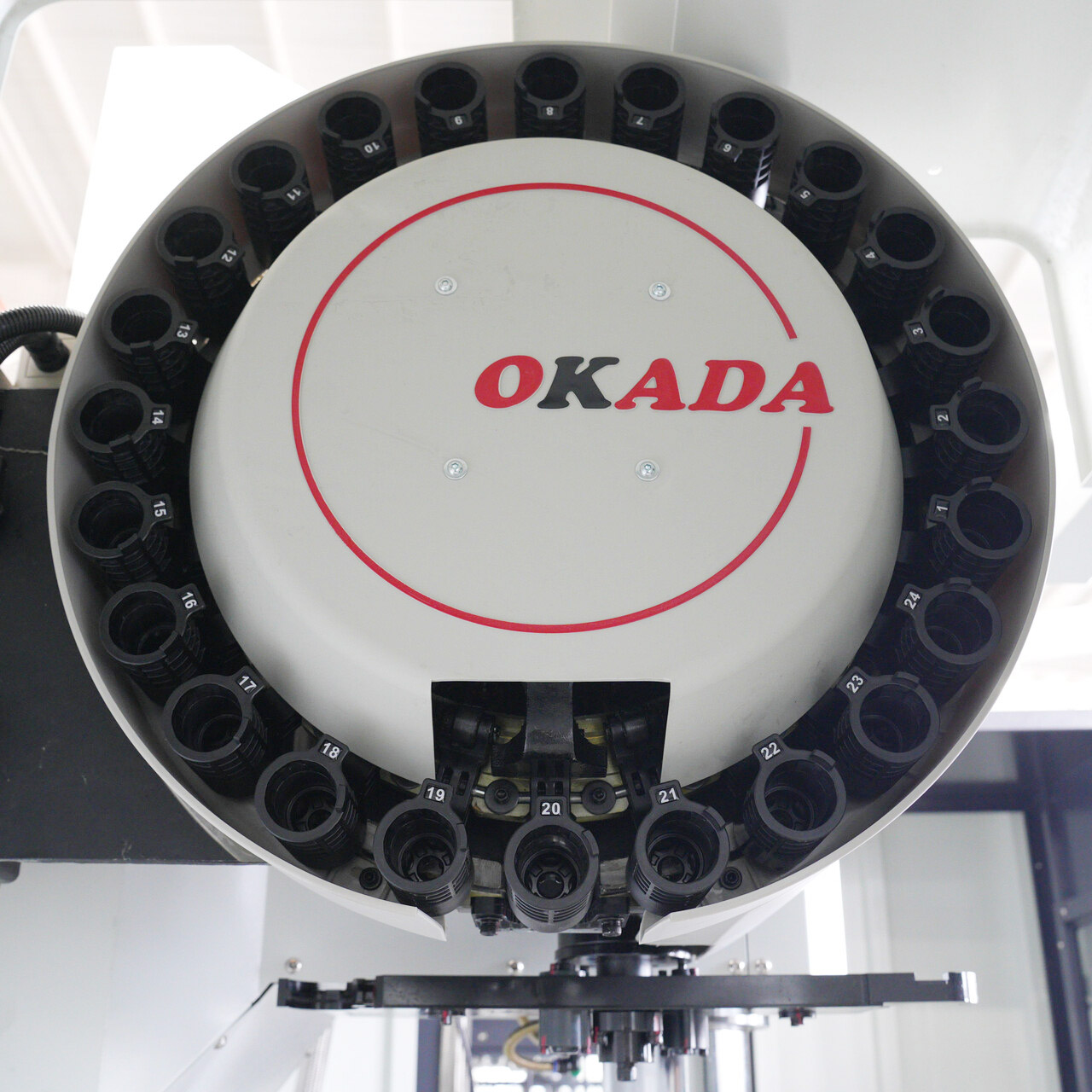

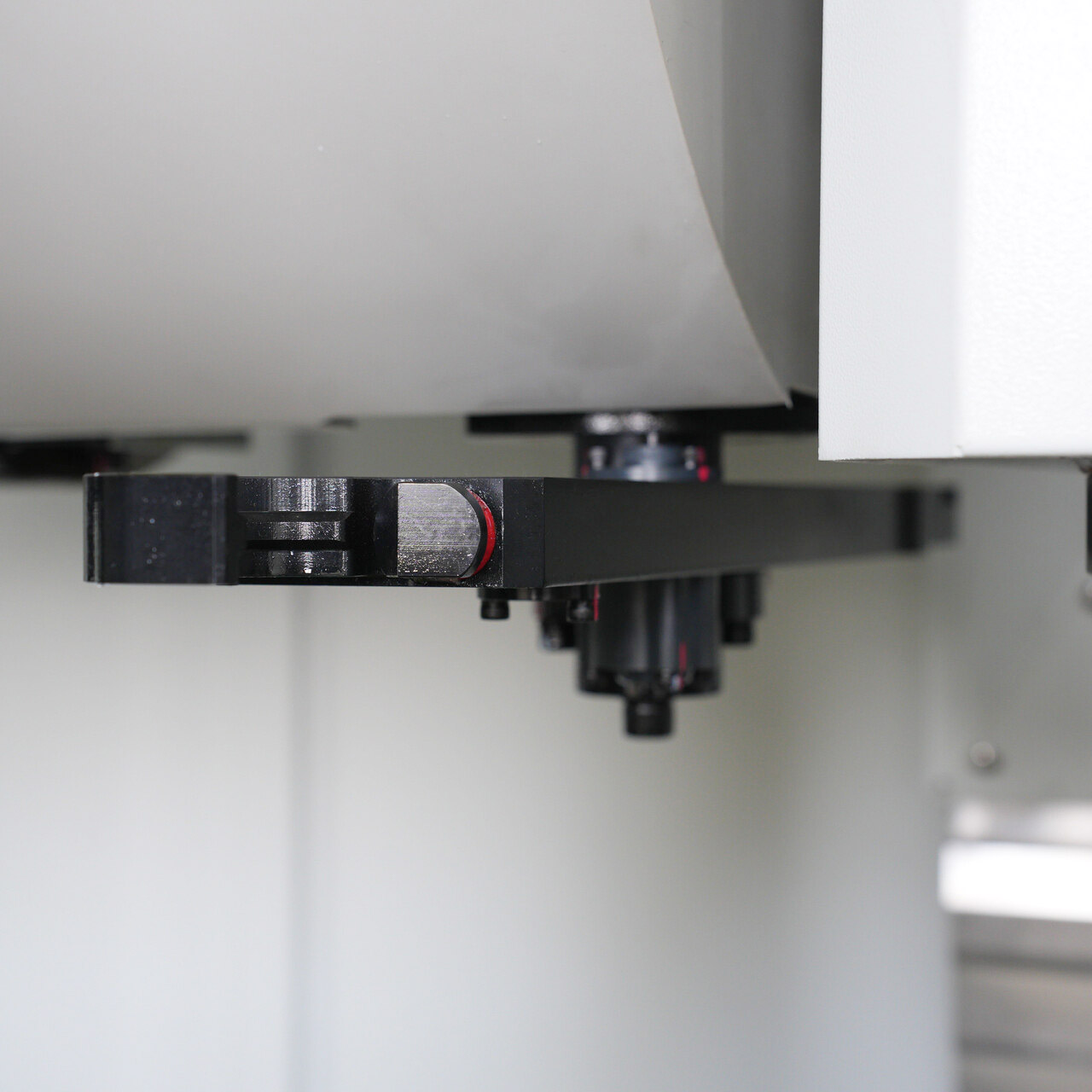

| Disc mechanical arm tool magazine | pcs | 24T |
| Controller system | / | GSK25i |
| X/Y/Z axis motor power | Nm | 15/15/22 |
| Spindle motor power | Kw | 7.5/11 |
| Machine weight approximately | Kg | 5000 |
| Dimensions | mm | 2600x2300x2800 |
◎GSK 980TB3i English System
◎Cutting Cooling System

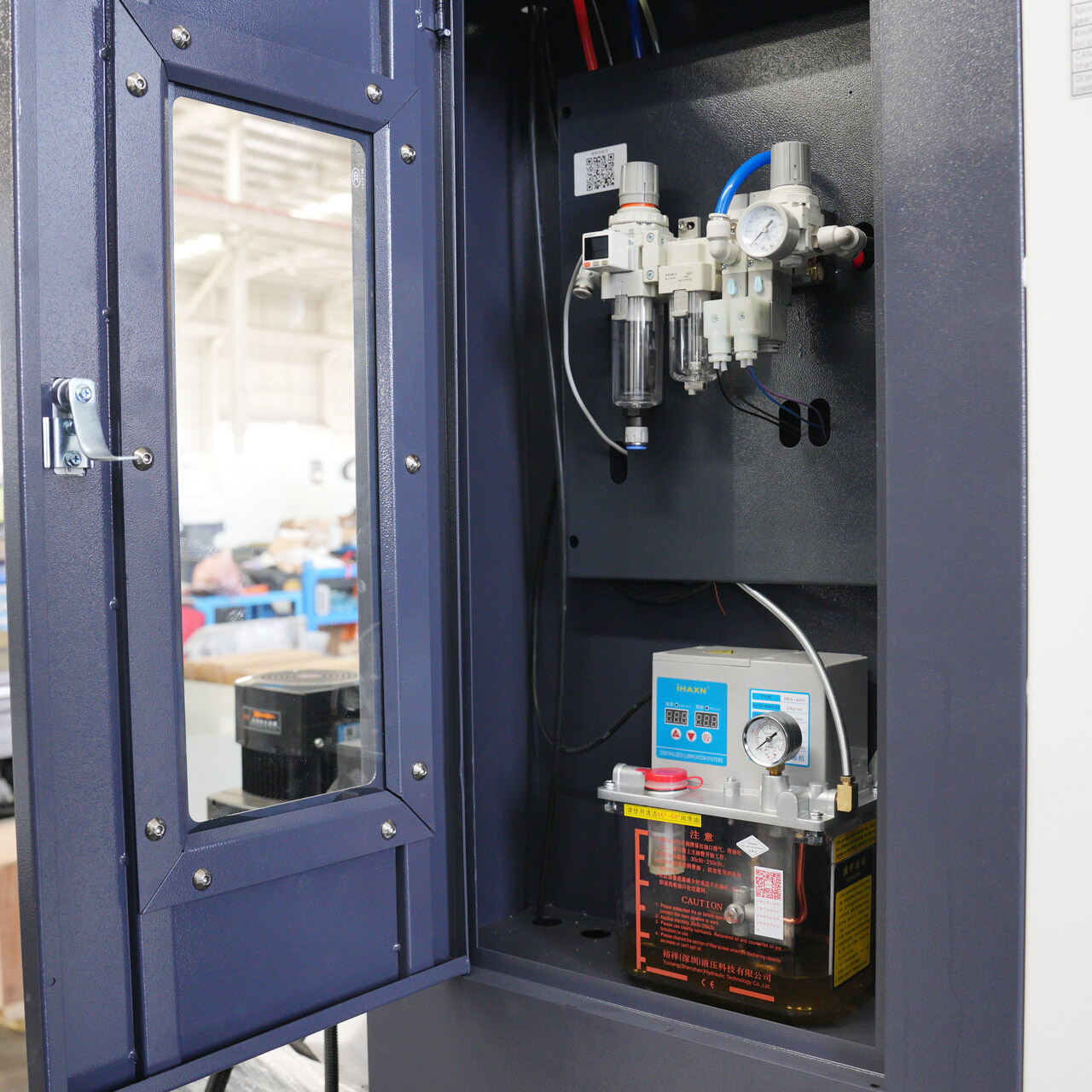

◎Automatic Lubrication System
◎Cutting Blowing Device
◎Spindle and Servo Overload System Protection
◎Three-color Alarm Light
◎Horizontal Adjustment Bolt and Pad
◎Electrical Box Heat Exchanger
◎Three-axis Screw Pre-tensioning Device
◎Program Storage

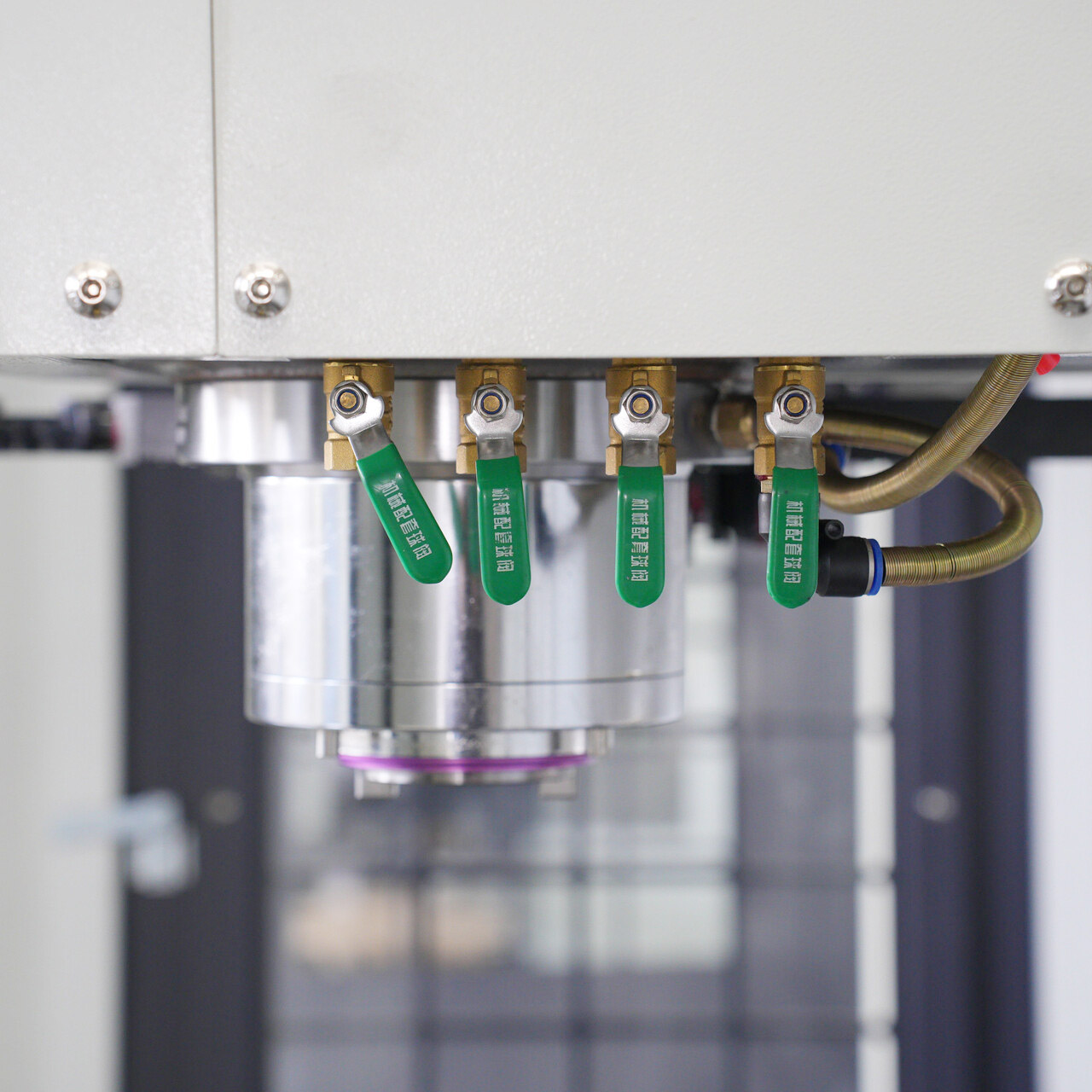

◎Spindle Ring Water Spray
◎Reserved for Adding Four-axis Interface
◎Internal Work Light
You can choose the control system you need according to your production requirements.
You can choose the cooling method you need according to your production requirements.
The vertical machining center can complete composite processing such as milling, drilling, boring, tapping, and chamfering, mainly processing mold accessories, box shells, mechanical brackets, irregular precision parts, flange connectors, etc., covering many industries such as molds, automobiles, aviation, engineering machinery, automation, and hydraulics.
