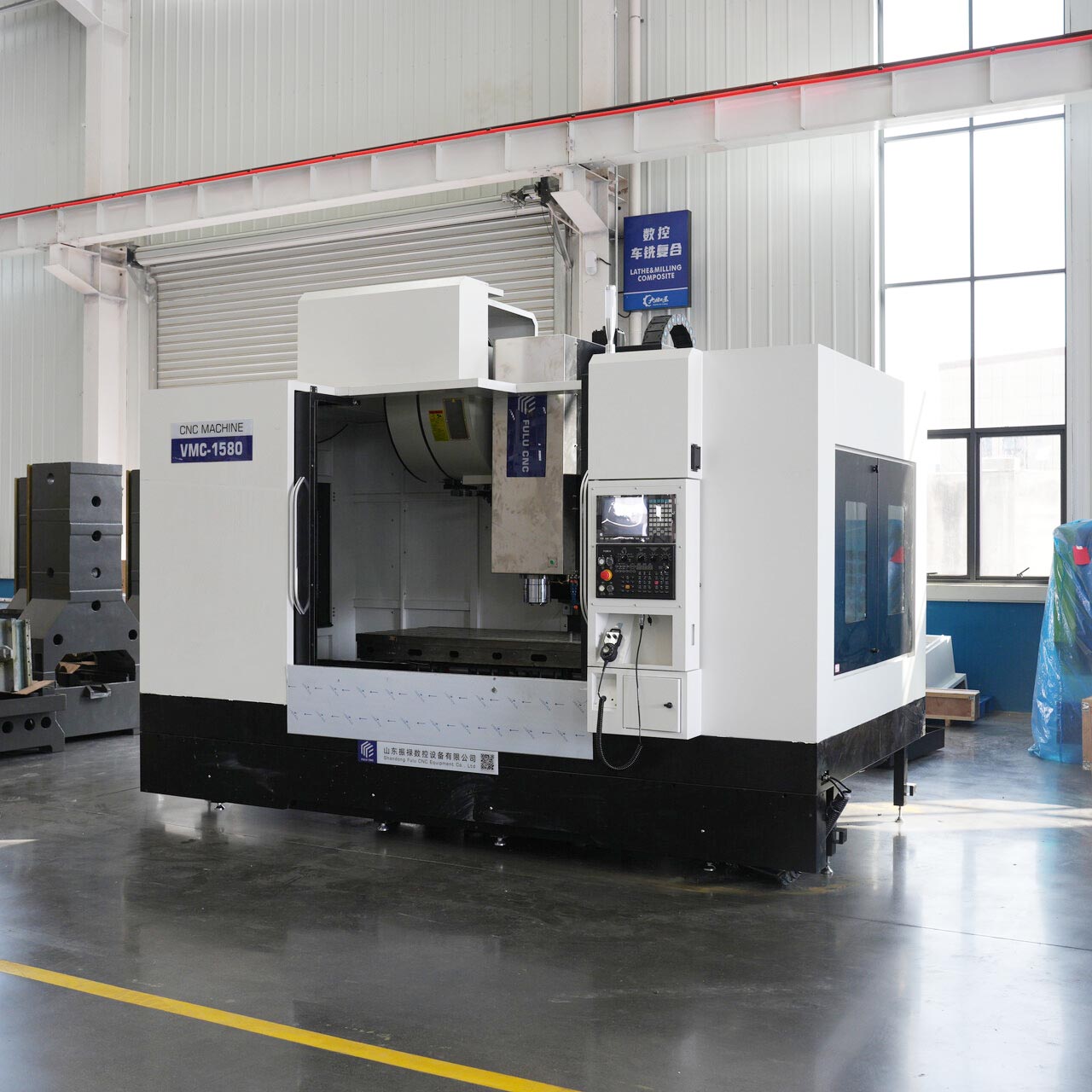

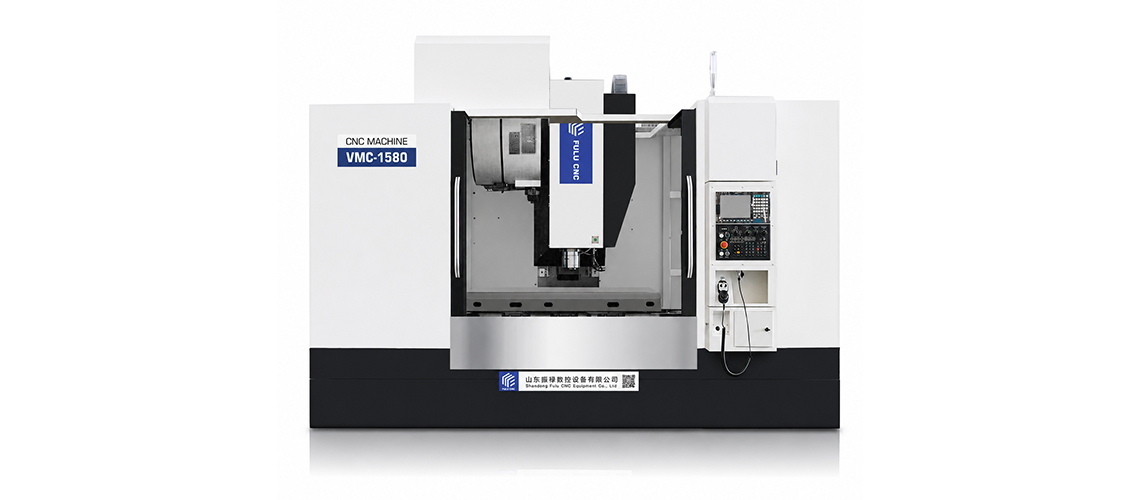

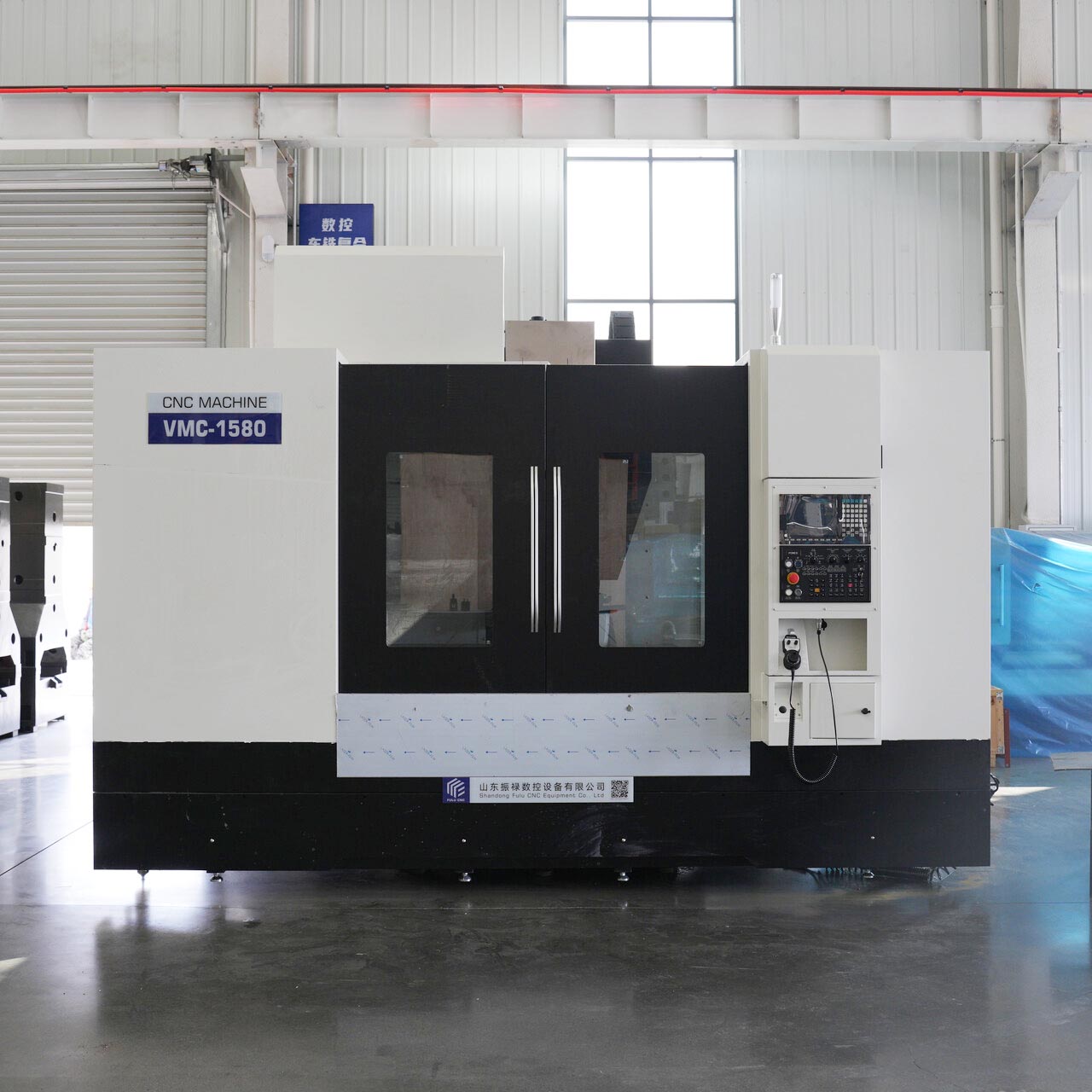

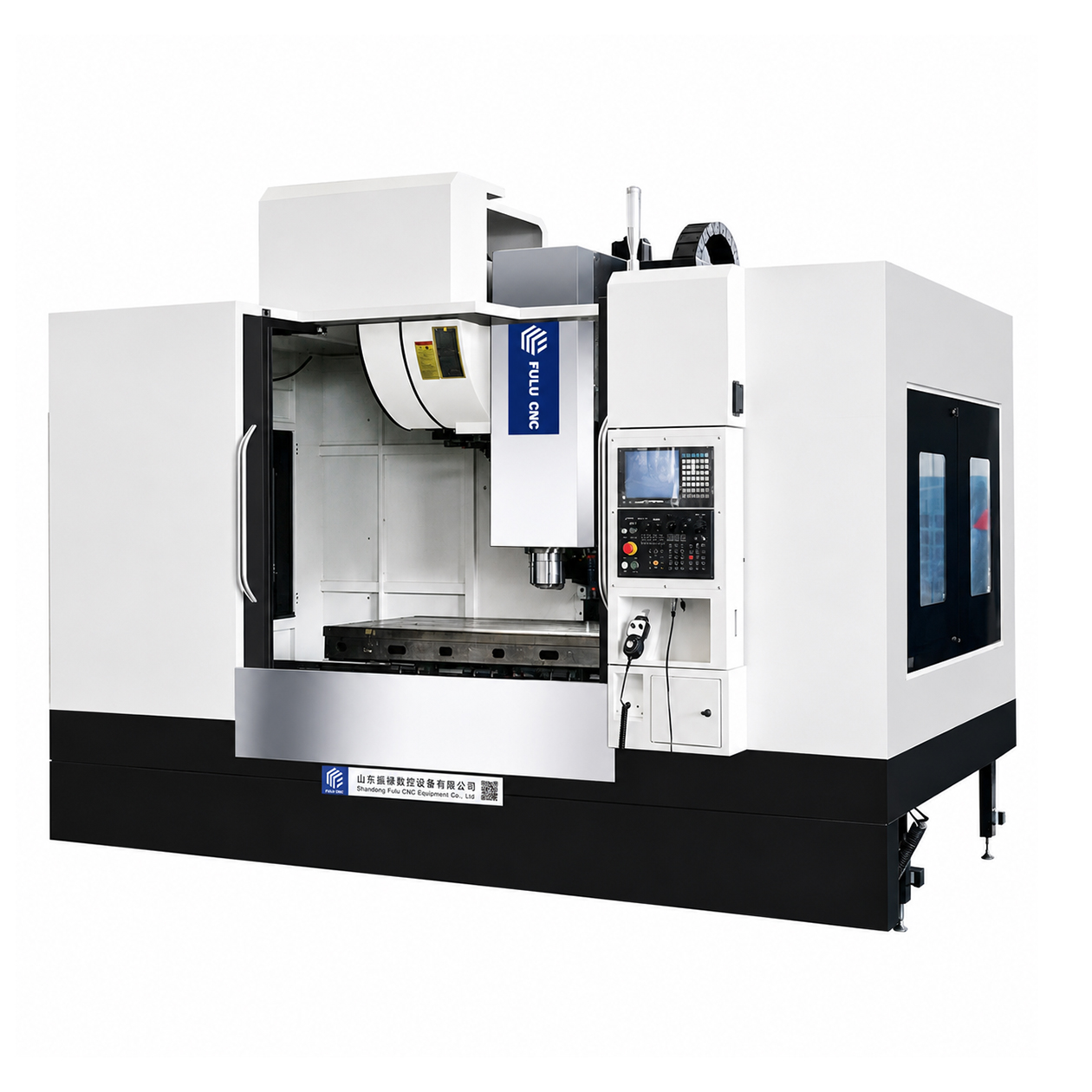

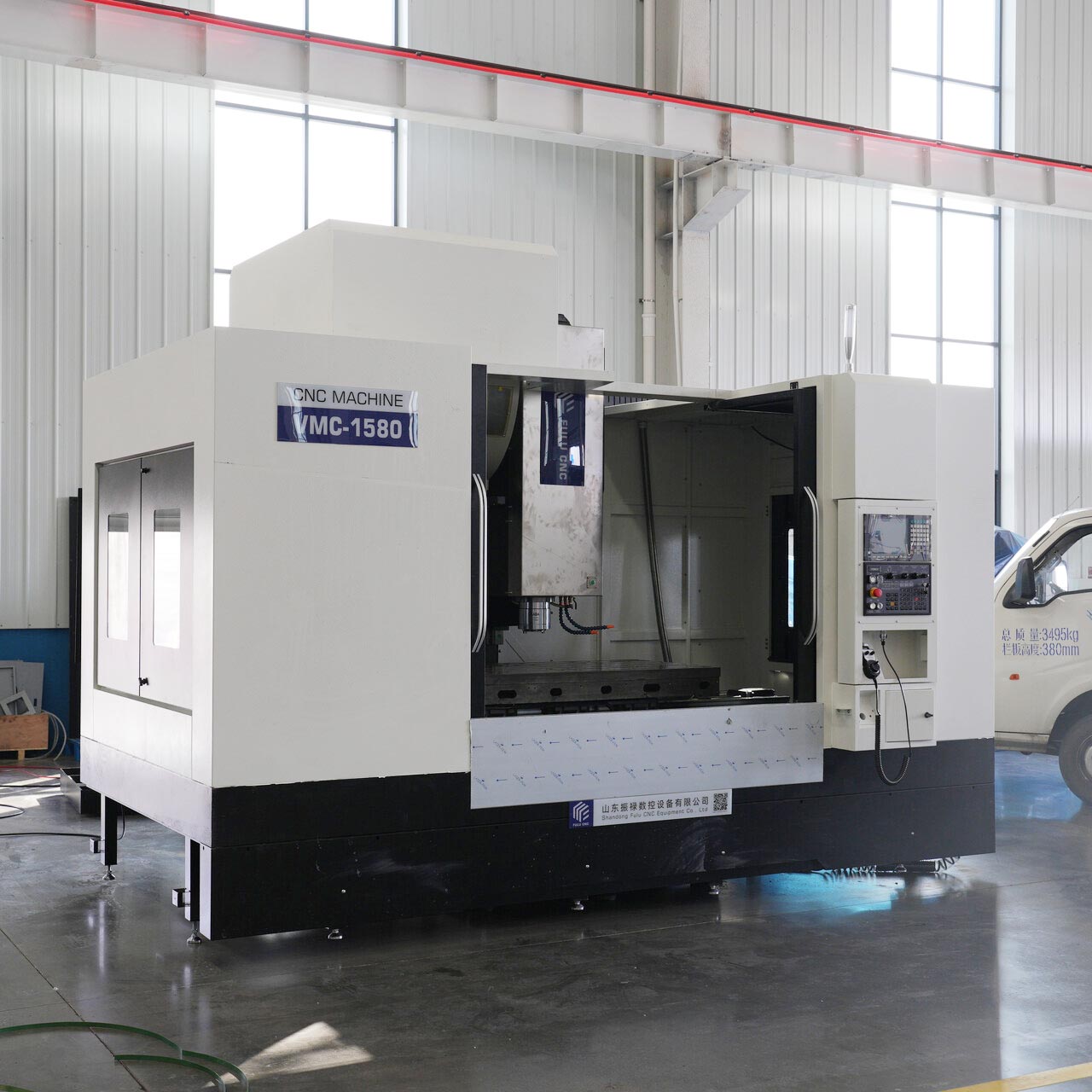

VMC1580 SYNTEC

CNC Lathe

Basic Parameters

The maximum spindle speed is 8000rpm, which enables efficient milling and precision machining.
The worktable size is 1700×800mm, suitable for clamping large workpieces.
X/Y/Z axis travel is 1500/800/700mm, providing a broader processing range.
The rapid movement speed of the three axes is 24m/min, effectively improving processing efficiency.
The high-rigidity box structure and wide guide rail design ensure stability during heavy cutting.

Contact Us

Video Display

Technical Parameters
Standard Configuration
Select Configuration

Project: VMC1580	Unit	Parameter
Table Size	mm	1700x800
X/Y/Z Axis Travel	mm	1500/800/700
Distance from Spindle End Face to Table	mm	160-860
Distance from Spindle Center to Column	mm	855
Maximum Load on Table	Kg	1500
T-Slot on Table	mm	5-22*135
X/Y/Z Axis Rapid Feed	m/min	26/26/20
X/Y/Z Guide Rail Specifications	mm	X: RGH55 6 Slider Y: RGH55 4 Rail Z: Plastic Coated Hard Rail
Positioning Accuracy	mm	±0.008
Repeat Positioning Accuracy	mm	±0.006
Minimum Positioning Unit	mm	±0.001

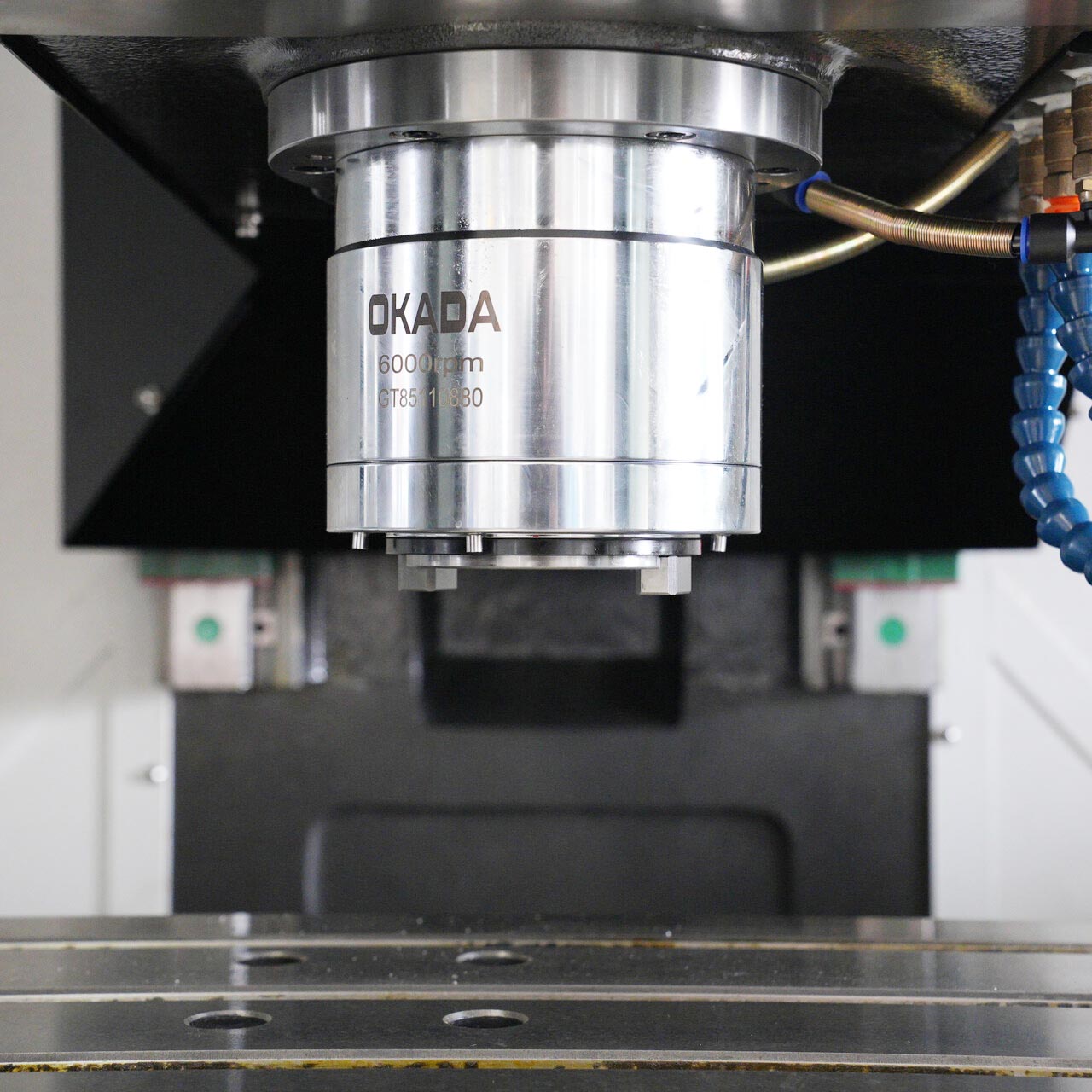

Maximum Spindle Speed	rpm	6000 (Spindle Oil Cooling)
Spindle Taper	mm	BT50

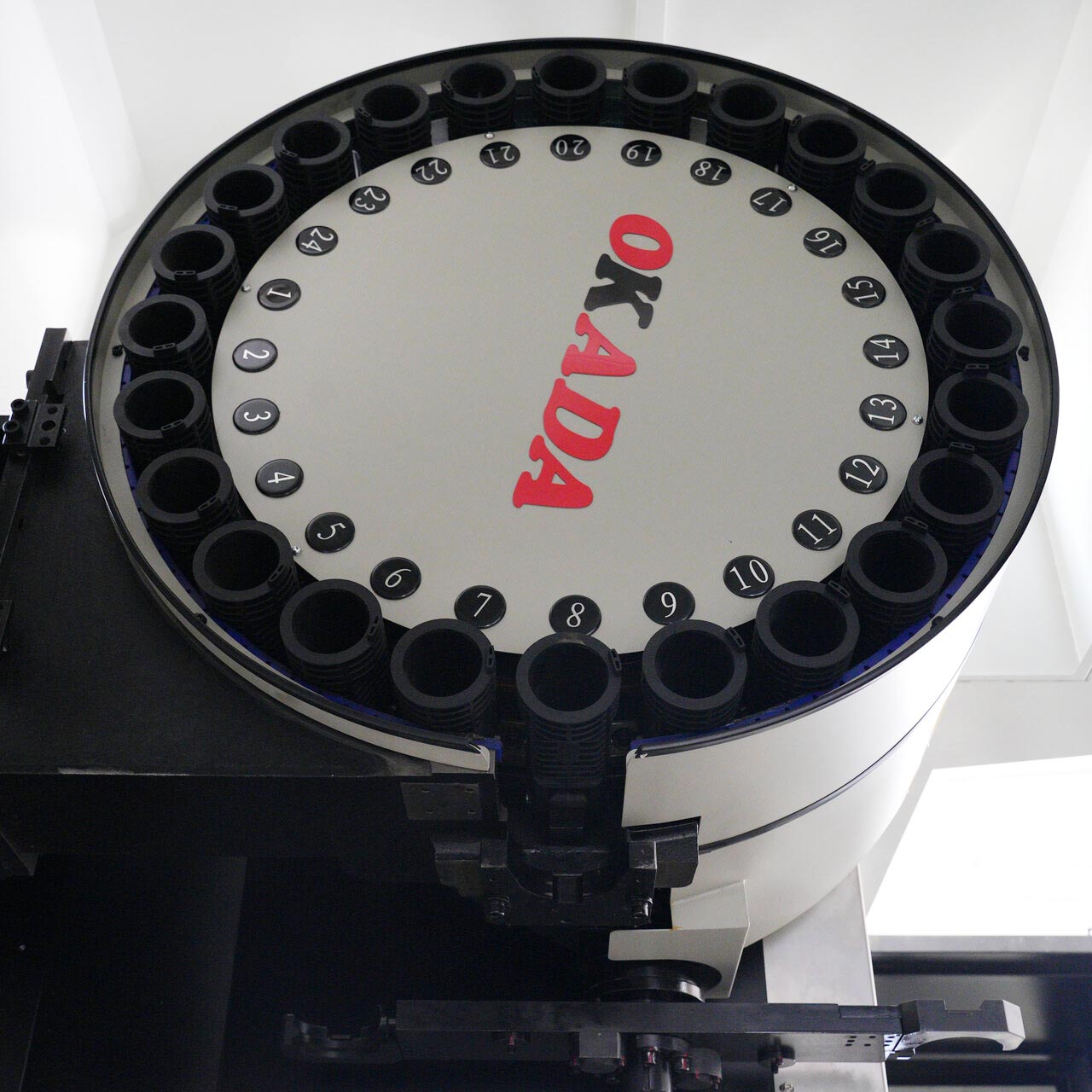

Disc Mechanical Arm Tool Magazine	pcs	24T
Controller System	/	GSK25i System
Three Axis Motor Power	Nm	28/35/35
Spindle Motor Power	Kw	18.5KW
Machine Weight Approximately	T	12

Serial Number	Configuration Content	Serial Number	Configuration Content
1	Cutting Cooling System	13	Internal Cleaning Device: Chip Blower, Water Gun

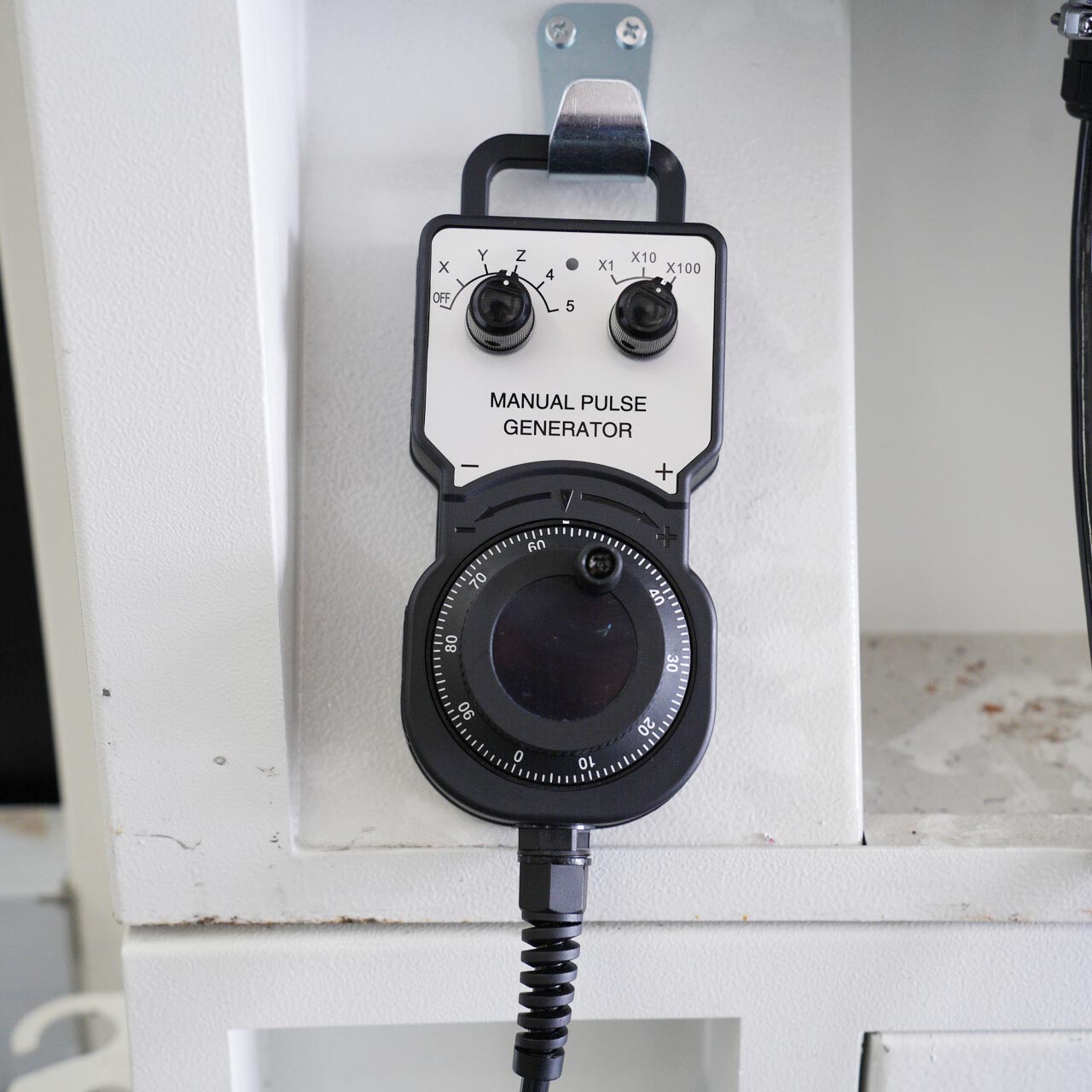

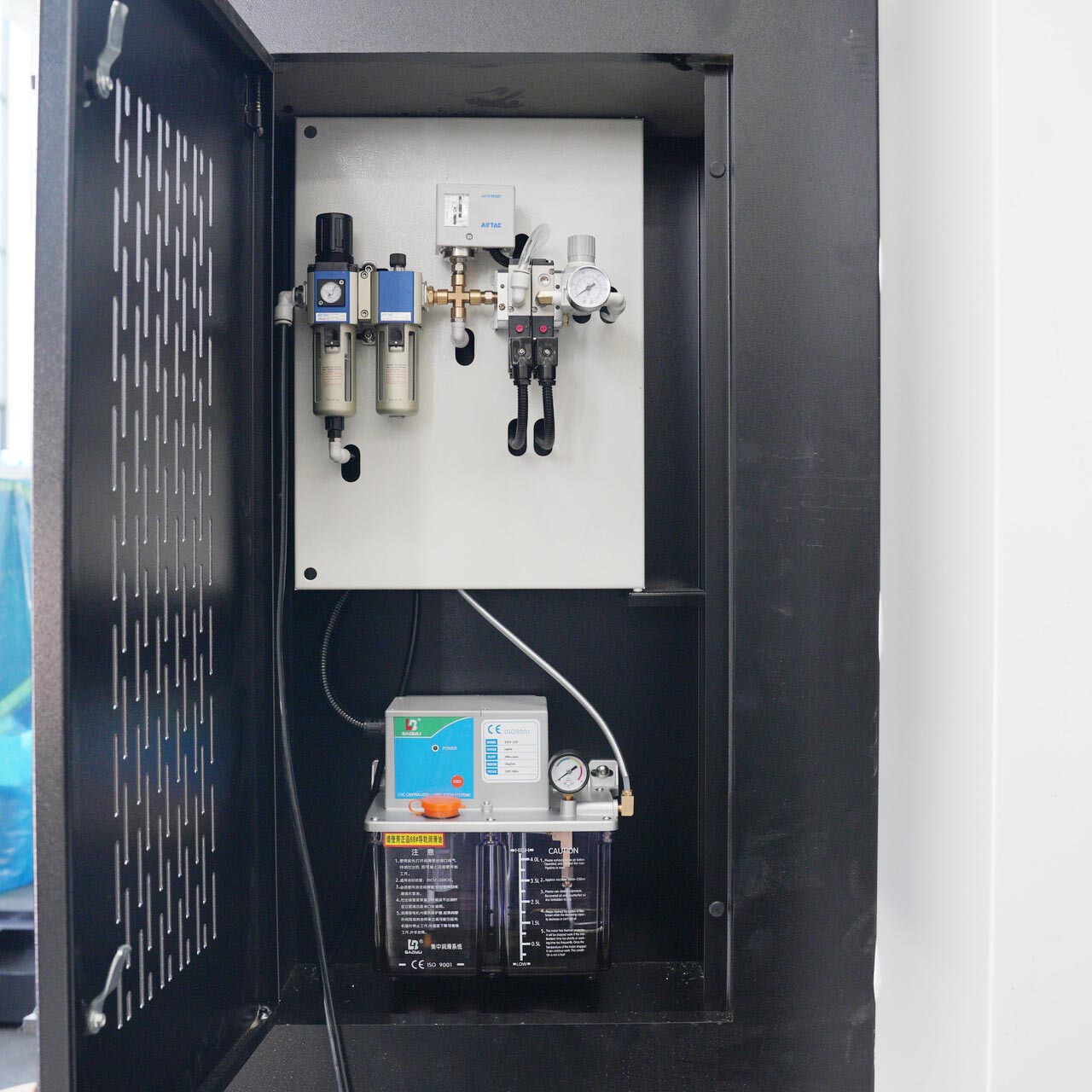

2	Automatic Lubrication System	14	Manual Pulse Generator: Handwheel
3	Cutting Blowing Device	15	External Network Transmission Interface
4	Spindle and Servo Overload Protection System	16	Three-Axis Telescopic Protective Cover (Full Cover Inner Sheet Metal)
5	Three-Color Alarm Light	17	External Protection High-Grade Baking Paint Sheet Metal
6	Horizontal Adjustment Bolt and Pad	18	Rigid Tapping
7	Electrical Box Heat Exchanger	19	Precision Inspection Certificate
8	Three-Axis Screw Pre-Tensioning Device	20	Electrical Manual
9	Program Storage	21	User Manual
10	Spindle Ring Water Spray	22	Program Operation Manual
11	Reserved for Adding Four-Axis Interface	23	Air Curtain Protection
12	Internal Work Light of the Machine Tool	24	Chassis Powerful Chip Removal, Dual Water Pump

◎Control System: Siemens, New代, Mitsubishi, Fanuc, KainDi
◎10000, 12000rpm spindle speed
◎30kg/50kg/70kg central water outlet
◎170/200/250/300mm fourth axis
◎125/170/210/250mm fifth axis
◎Chain-type chip conveyor
◎Renishaw tool setter

Contact Us

Standard Configuration

https://fulucncfactory.com/DM-static/upload/image/effimg/20260611_144050_1412.jpg

控制系统

https://fulucncfactory.com/DM-static/upload/image/effimg/20260611_144123_8285.jpg

24把圆盘刀库

https://fulucncfactory.com/DM-static/upload/image/effimg/20260611_144500_3397.jpg

冷却系统

https://fulucncfactory.com/DM-static/upload/image/effimg/20260611_144818_4105.jpg

主轴

Optional Configuration

Control system options

You can choose the control system you need according to your production requirements.

Cooling method optional

You can choose the cooling method you need according to your production requirements.

Other options

You can choose the configuration you need according to your production requirements.

Processable Parts

The vertical machining center can complete composite processing such as milling, drilling, boring, tapping, and chamfering, mainly processing mold accessories, box shells, mechanical brackets, irregular precision parts, flange connectors, etc., covering many industries such as molds, automobiles, aviation, engineering machinery, automation, and hydraulics.
