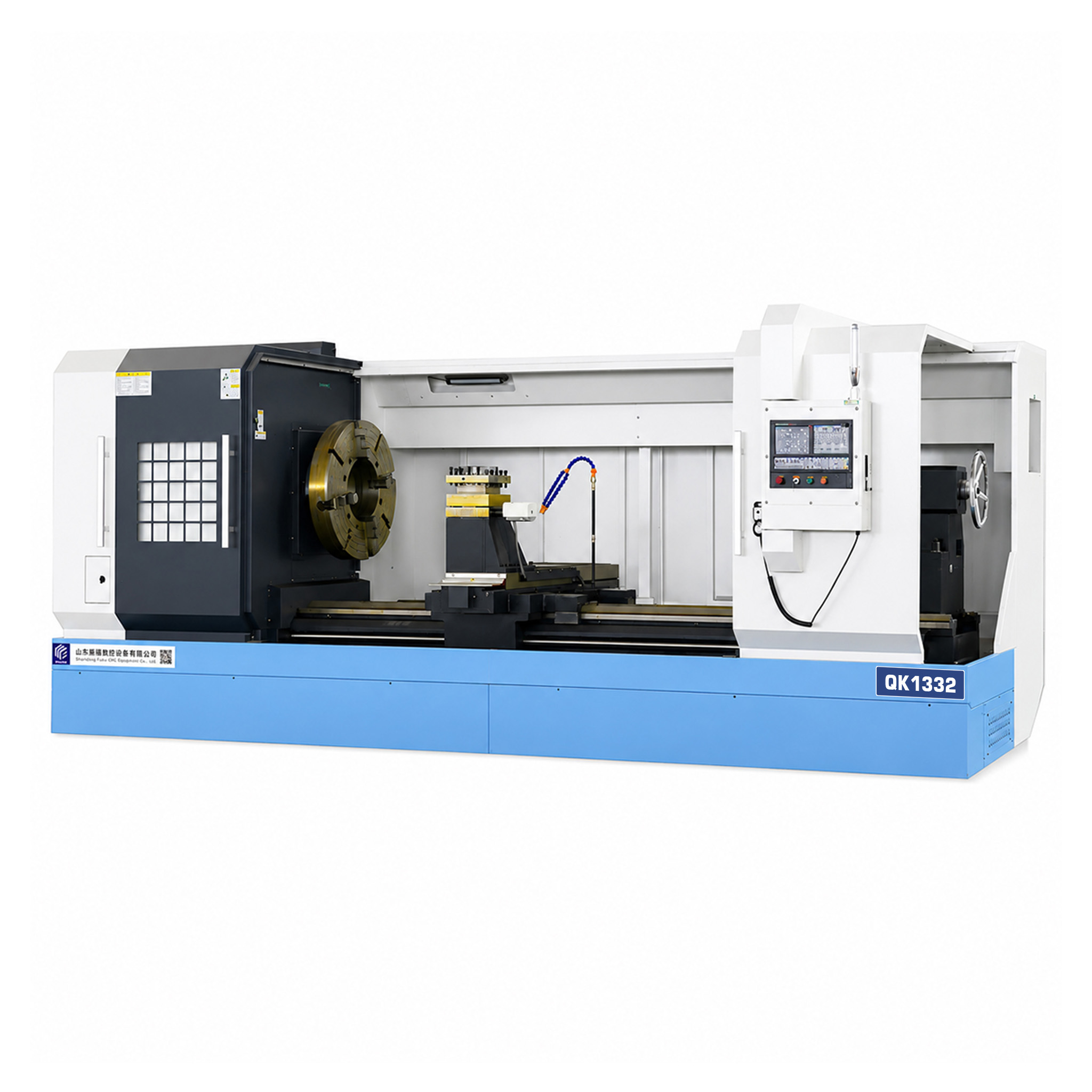

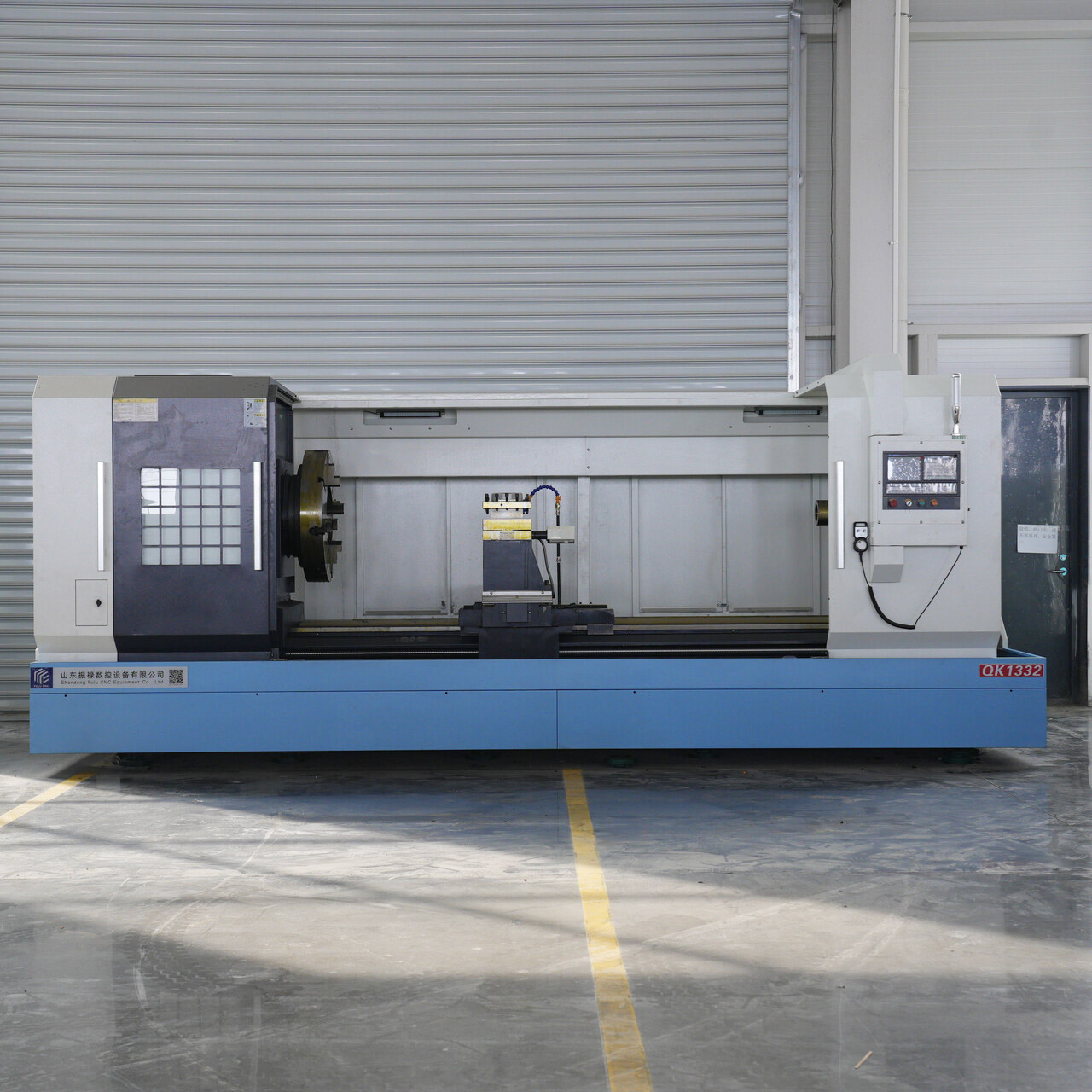

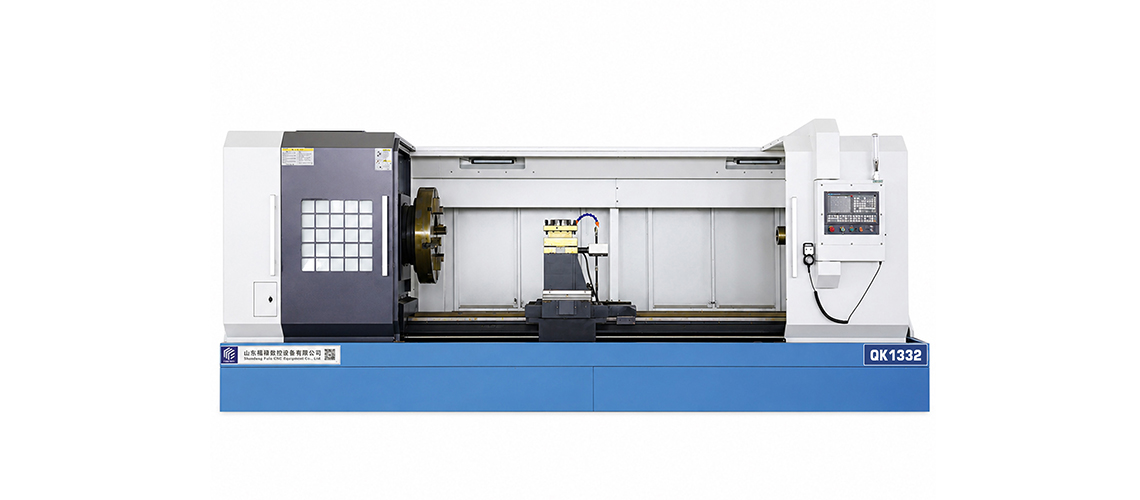

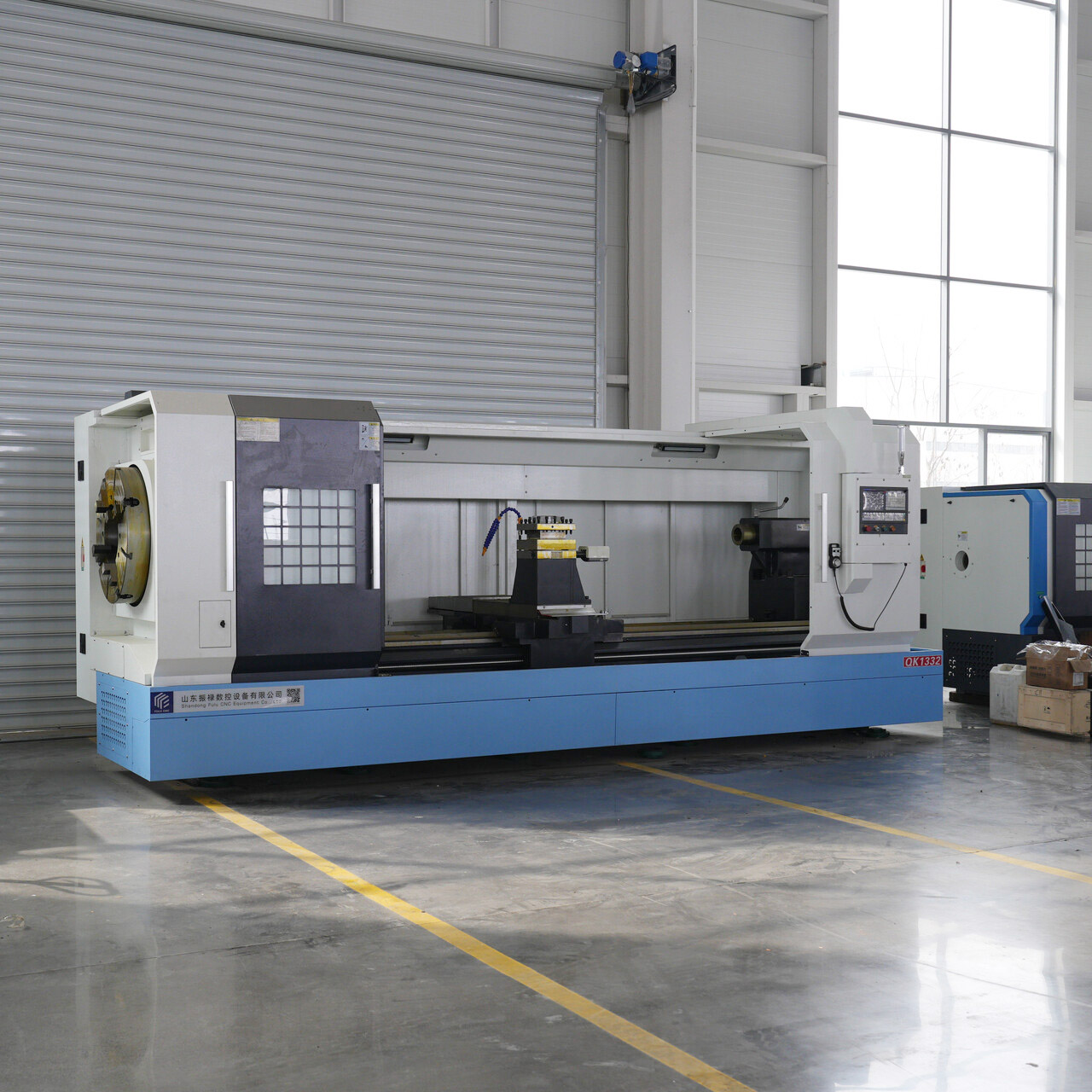

CNC Lathe
Basic Parameters

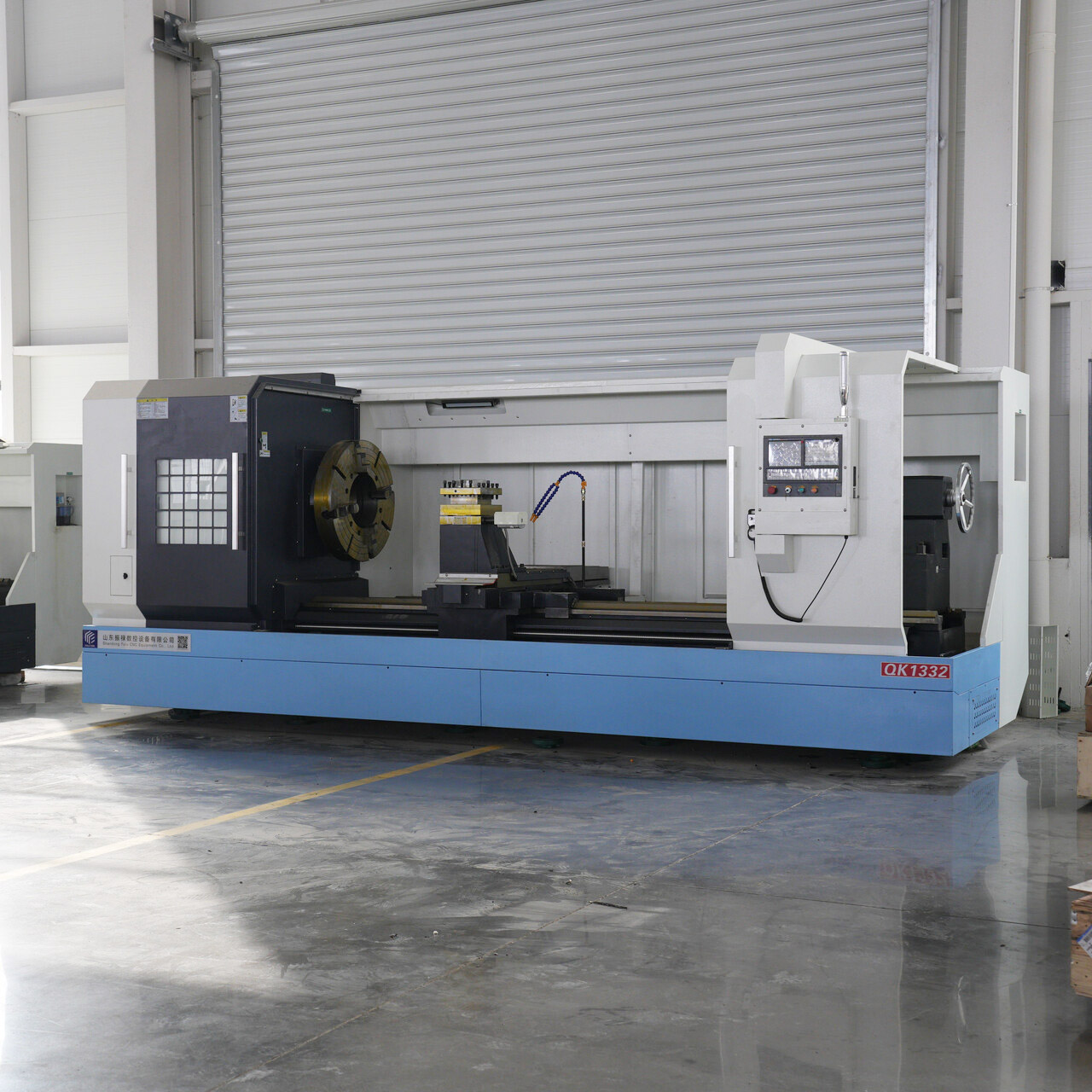

Project: QK1332
Unit
Specification
Maximum workpiece rotation diameter on the bed
mm
1000
Maximum workpiece rotation diameter on the tool holder
mm
610
Maximum workpiece length between centers
mm
3000
Effective processing length
mm
2850
Width of bed guide rail
mm
755/600
Spindle hole diameter
mm
Φ320
Spindle end code
-
A2-15
Spindle speed range (frequency conversion stepless speed regulation)
r/min
20-350

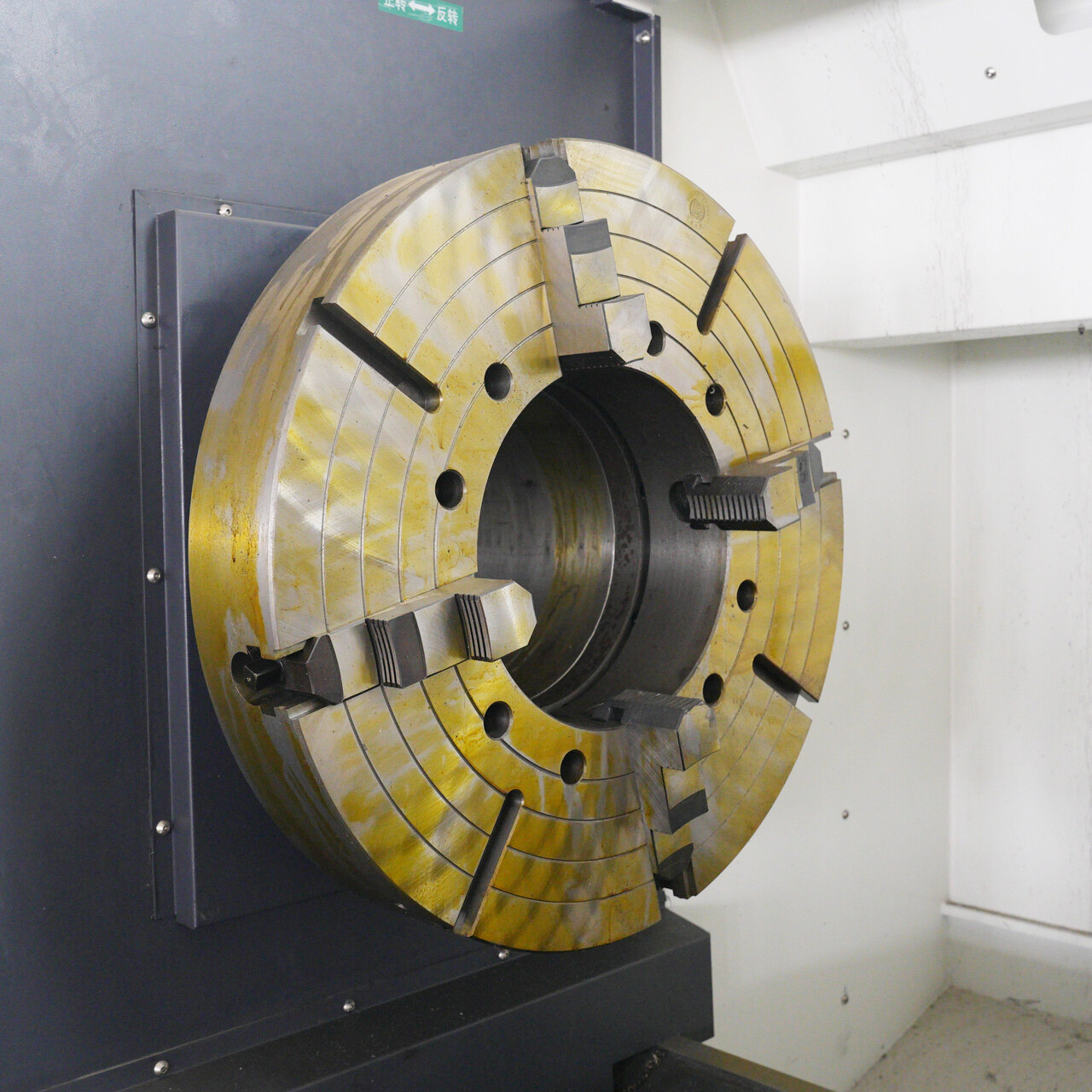

Chuck (manual four-jaw chuck)
mm
1000
Main motor power
kW
22
Tool size
mm
40 × 40
Electric tool holder
-
Vertical four-station tool holder
Maximum stroke of the bed saddle in the Z direction
mm
3000
Maximum lateral stroke of the tool holder in the X direction
mm
520
Fast moving speed of the bed saddle in the Z direction
m/min
6
Fast moving speed of the tool holder in the X direction
m/min
4
X/Z axis servo torque
N·m
15 / 22
Tailstock sleeve diameter
mm
Φ120
Tailstock sleeve stroke
mm
300
Tailstock sleeve taper
-
Morse MT6
Processing pipe diameter range
mm
Φ140～Φ340
Processable thread types
-
Metric, imperial, API casing threads
Machine dimensions (length × width × height)
mm
6200 × 2200 × 2100
Machine weight
kg
12000
Standard Configuration

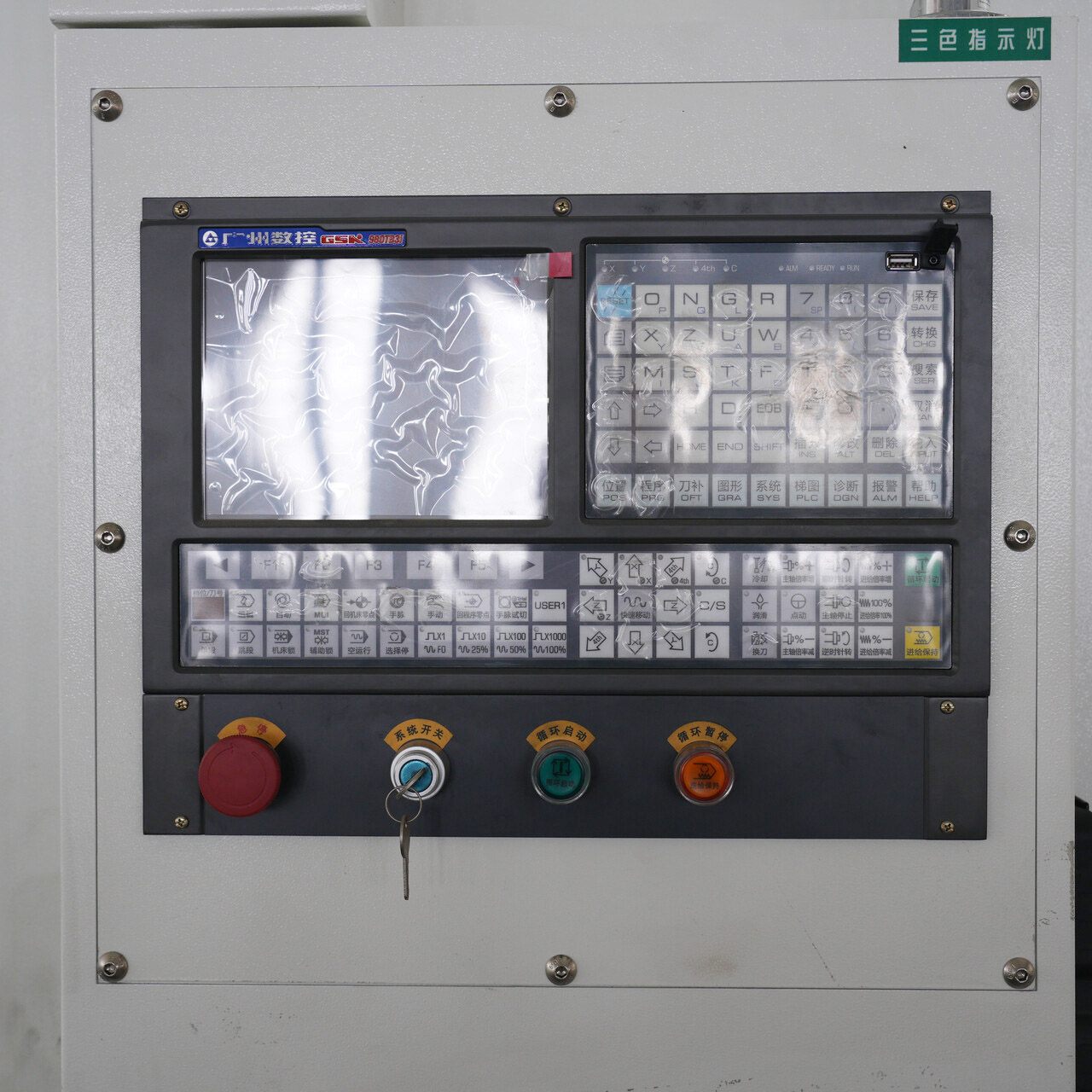

控制系统
三爪卡盘

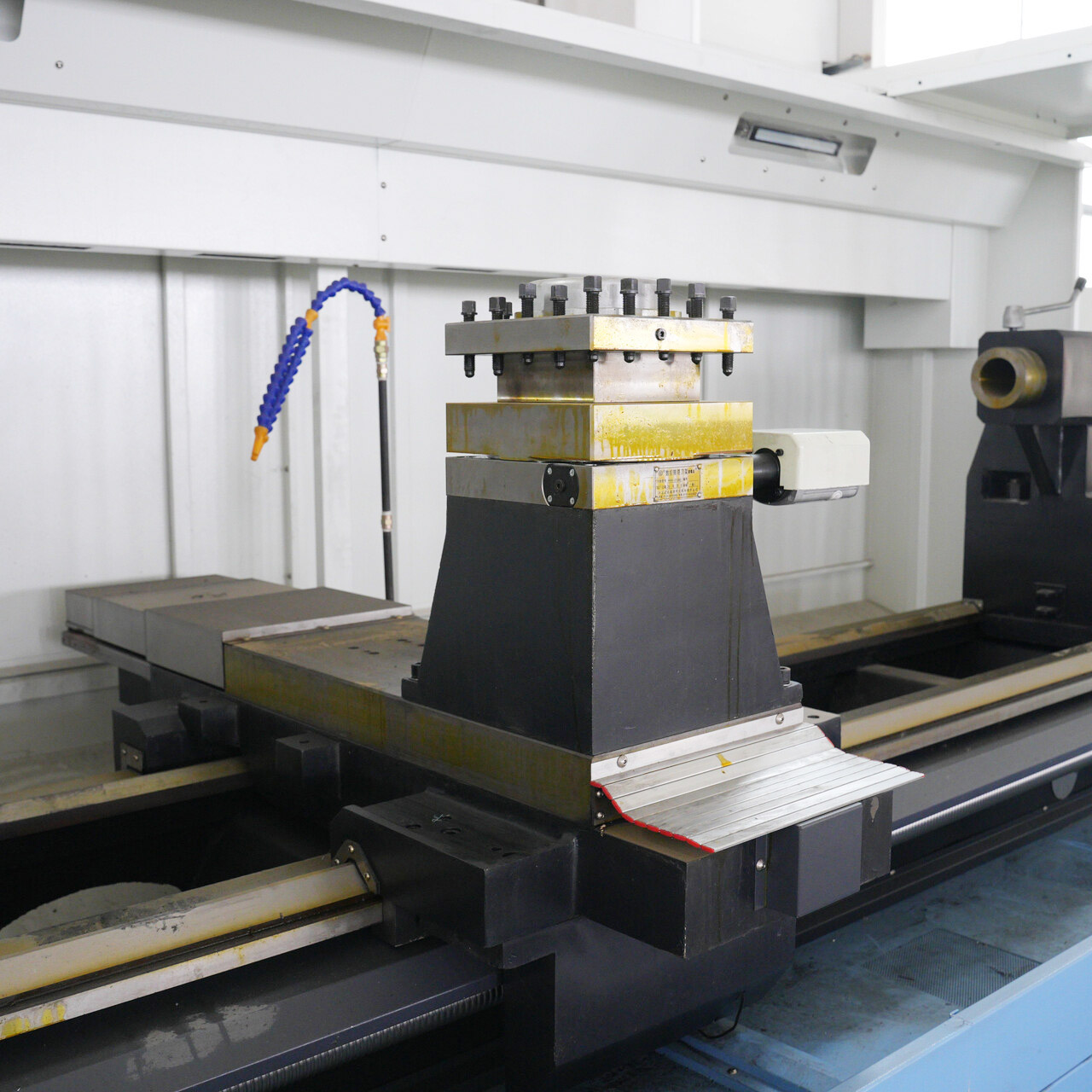

四工位电动刀架

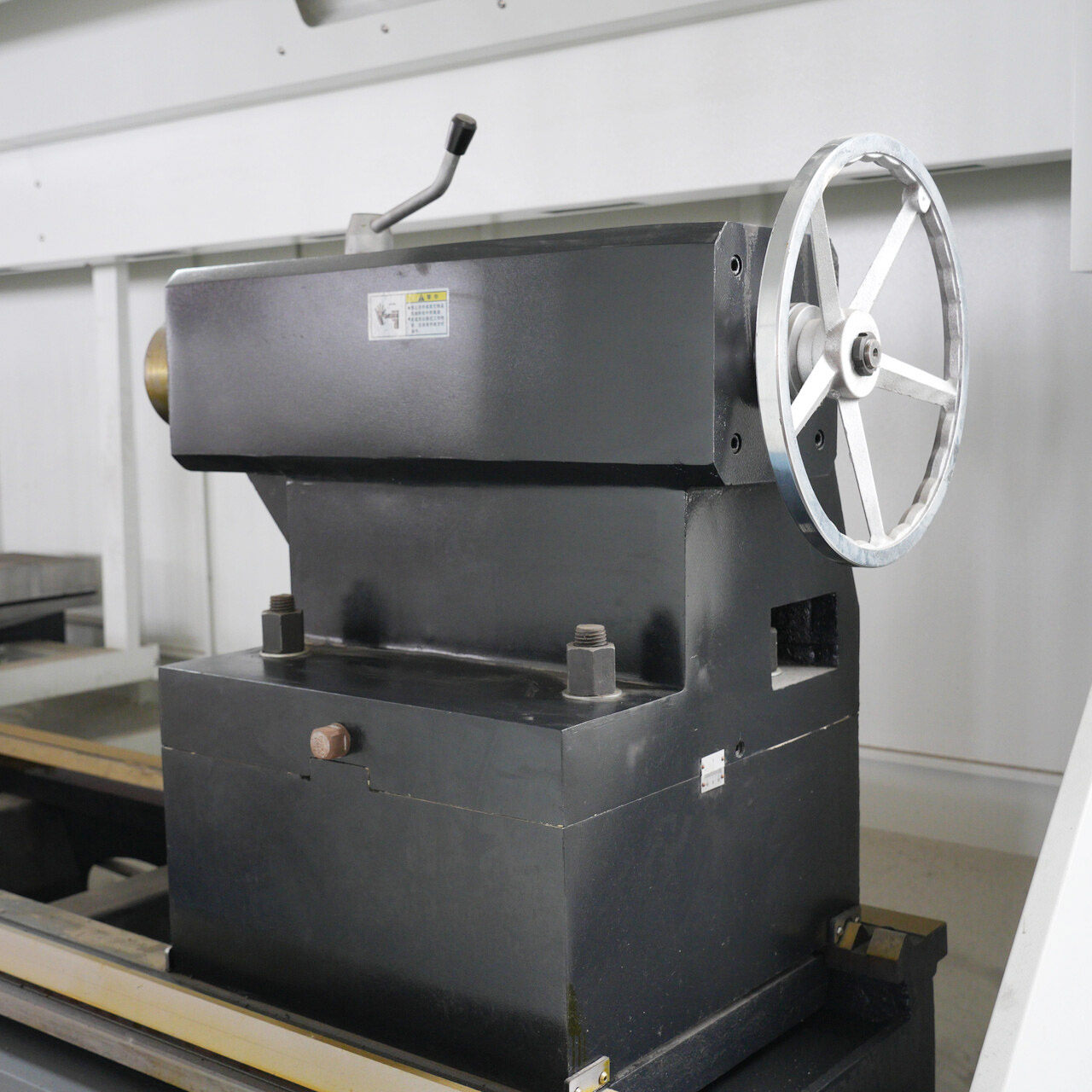

手动尾座
You can choose the control system you need according to your production requirements.
You can choose the tool holder you need according to your production requirements.
You can choose the tailstock you need according to your production requirements.
You can choose the chuck you need according to your production requirements.
CNC lathes are mainly used for processing metal parts, capable of machining some shaft-type and disc-type parts.
Machinable Parts
