Analysis of Differences in Knife Holders





What Are 4-Station Tool Post and 8-Station Turret?



During CNC Lathe machining, the Tool Post is one of the key components that affects machining efficiency and production stability. Different tool post configurations directly influence the machining range, tool changing speed, and application fields of the machine.

The most common tool changing systems used in CNC turning machines include the 4-Station Electric Tool Post and 8-Station Turret. Both can automatically rotate and change different cutting tools. However, they have clear differences in tool capacity, structure, machining efficiency, and suitable applications.

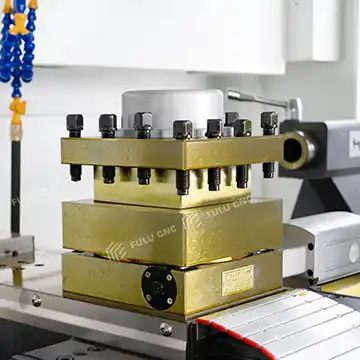

Introduction to 4-Station Electric Tool Post



The 4-Station Electric Tool Post is a simple and widely used automatic tool changing device for CNC machines. It can hold up to four cutting tools at the same time.

During machining, operators can install different Lathe Tools, such as external turning tools, facing tools, grooving tools, and threading tools according to the part requirements. The CNC system controls the tool post rotation to achieve automatic tool changes.

Main advantages of 4-Station Electric Tool Post:

Compact structure and small installation space;

Fast tool changing speed;

Stable operation and easy maintenance;

Lower operating cost;

Suitable for standard turning operations.

Because of its simple and reliable design, the 4-station tool post is widely used on CK series flat bed CNC lathes. It is suitable for machining shafts, sleeves, flanges, and other common mechanical parts.

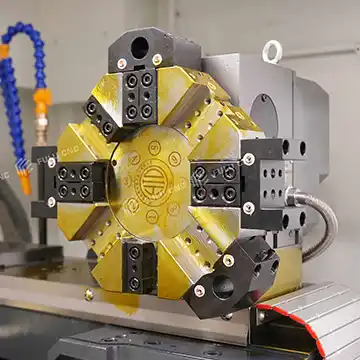

Introduction to 8-Station Turret



Compared with a 4-station tool post, the 8-Station Turret provides more tool positions. It can hold up to eight different cutting tools.

With more available tool positions, the turret can complete more machining processes, including external turning, internal boring, threading, grooving, and drilling.

This reduces manual tool adjustment and machine downtime during production.

Main advantages of 8-Station Turret:

Supports more cutting tools;

Reduces tool replacement frequency;

Improves continuous machining ability;

Suitable for complex parts and mass production.

The 8-station turret is commonly used in high-efficiency CNC turning applications where multiple machining processes are required.



---

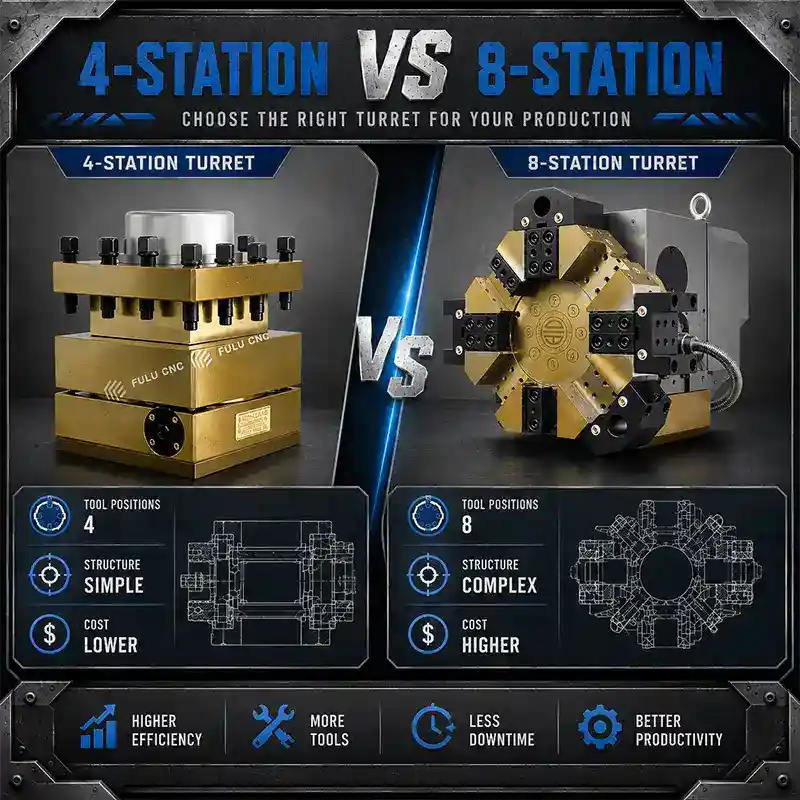

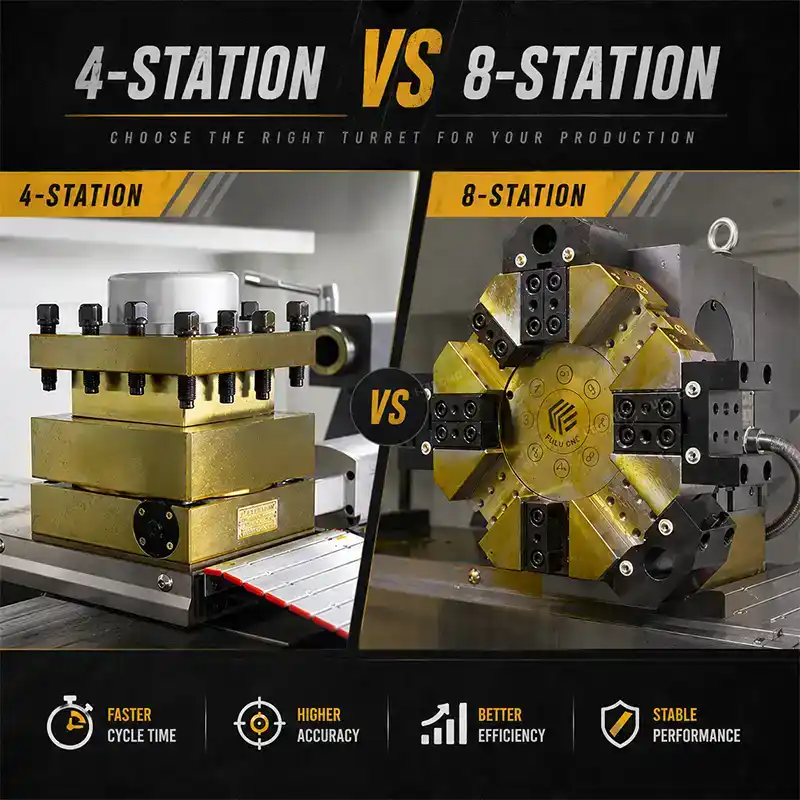

Main Differences Between 4-Station Tool Post and 8-Station Turret



Although both systems can automatically change tools, they have different advantages in tool capacity, machining efficiency, and production cost.



1. Different Tool Capacity



The number of available tool positions is the most obvious difference.

A 4-station CNC Lathe Tool Post can install four tools. It is suitable for simple machining operations, such as:

 • External turning;

 • Facing;

 • Threading;

 • Grooving.

For standard parts, four tools are usually enough to complete the machining process.

An 8-station turret can install eight tools. More tools can be prepared before machining starts, reducing the need for tool replacement.

For parts that require multiple processes, the 8-station turret provides better flexibility.



2. Different Machining Efficiency



Machining efficiency is an important factor when selecting a tool changing system.

A 4-station tool post has fewer tool positions. When machining complex parts, operators may need to adjust or replace tools more frequently. This can increase auxiliary machining time.

The 8-station turret allows more tools to be installed at one time. The CNC machine can quickly select the required tool during operation, improving production efficiency.

It is especially suitable for:

 • Automotive components;

 • Engineering machinery parts;

 • Precision shafts;

 • Large batch production.



3. Different Structures



The 4-station tool post uses a simpler positioning and locking structure. It has fewer components, smaller size, and lower manufacturing costs.

Its simple design makes maintenance easier. For parts with fewer machining steps, this structure can fully meet production requirements.

The 8-station turret requires a more complex internal structure to support more tool positions.

Modern turrets, including the Hydraulic Turret and servo turret, use high-precision positioning systems. They provide stable tool positioning and excellent repeatability during every tool change.

Although the structure is more complex, advanced manufacturing technology ensures reliable performance during long-term operation.



---



Application Differences Between 4-Station Tool Post and 8-Station Turret



Applications of 4-Station Electric Tool Post



The 4-Station Electric Tool Post is mainly used for:

 • General mechanical part machining;

 • Simple turning operations;

 • Small batch production;

 • Training and basic machining.

For common parts such as shafts, sleeves, and flanges, a 4-station tool post can provide stable and reliable performance.

Its main advantages are:

 • Lower investment cost;

 • Easy operation;

 • Simple maintenance.



Applications of 8-Station Turret



The 8-Station Turret is more suitable for complex machining and high-efficiency production.

Typical applications include:

 • Automotive manufacturing;

 • Aerospace component machining;

 • Mold manufacturing;

 • Engineering machinery production;

 • High-precision mass production.

More tool positions allow the machine to complete more processes, improving equipment utilization and production efficiency.



---



How to Choose Between 4-Station Tool Post and 8-Station Turret?



Choosing the right CNC Lathe Tool Post depends on the part type, production volume, and machining requirements.

Choose According to Part Complexity

If the workpiece has a simple structure and only needs a few tools, the 4-station tool post is a more economical choice.

For example, common shaft machining may only require:

 • External turning tool;

 • Grooving tool;

 • Threading tool;

 • Boring tool.

In this case, a four-station system is sufficient.

For parts requiring multiple machining operations, such as:

 • External turning;

 • Internal boring;

 • Multiple threading processes;

 • Different cutting sizes;

 • the 8-station turret is a better option.

Choose According to Production Efficiency

For small batch production, a 4-station tool post can reduce machine investment costs.

For long-term and high-volume production, an 8-station turret can reduce tool changing time and improve overall efficiency.

Therefore:

Choose a 4-station tool post for lower cost and simple machining;

Choose an 8-station turret for higher efficiency and wider machining capability.

---



FULUCNC Provides Multiple CNC Lathe Tool Post Solutions



As a professional CNC Lathe Manufacturer, FULUCNC provides different tool post configurations according to customer machining requirements, including:

4-Station Electric Tool Post;

6-Station Electric Turret;

8-Station Turret;

Hydraulic Turret;

Live Tool Turret.

FULUCNC CNC Machine products feature high-rigidity structures and reliable automatic tool changing systems. They are designed for industries such as automotive manufacturing, mechanical production, and mold processing.

Whether for simple turning jobs or high-efficiency mass production, choosing the right CNC Lathe Tool Post can help customers improve productivity and reduce manufacturing costs.

If you are looking for a suitable CNC Lathe solution, FULUCNC can provide professional machine selection advice and customized configurations according to your production needs.

---
