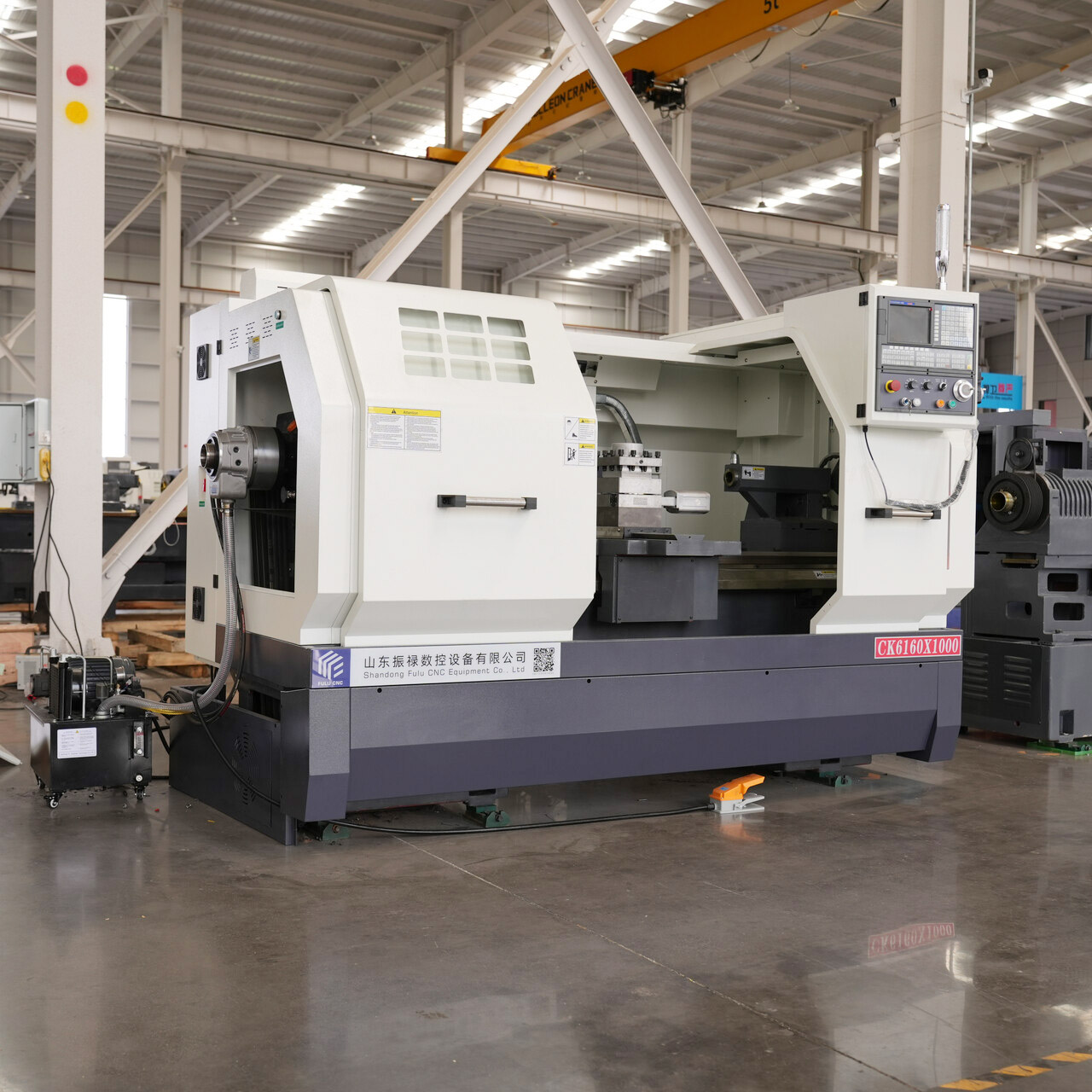

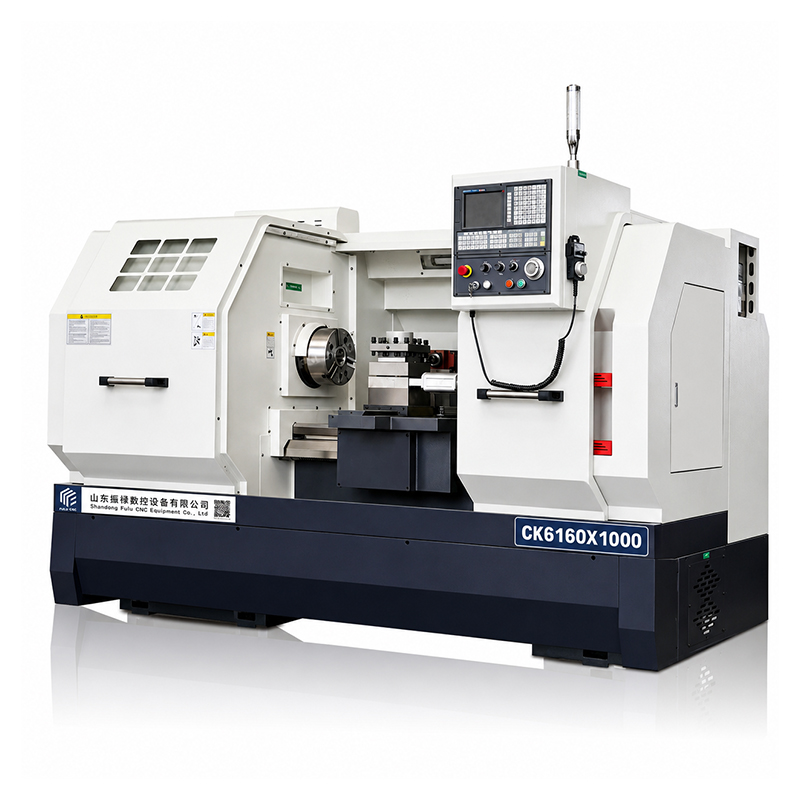

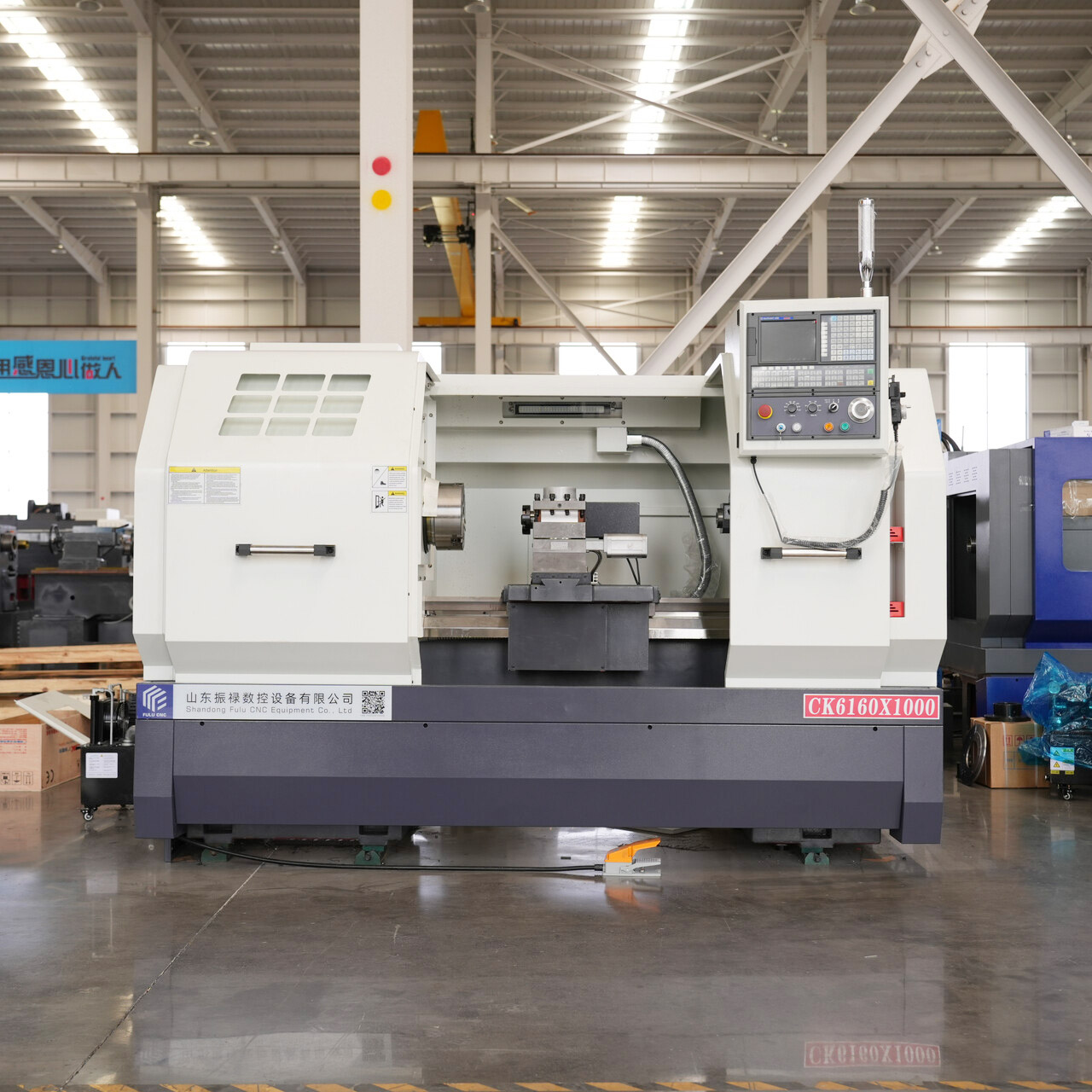

CNC Lathe
Basic Parameters

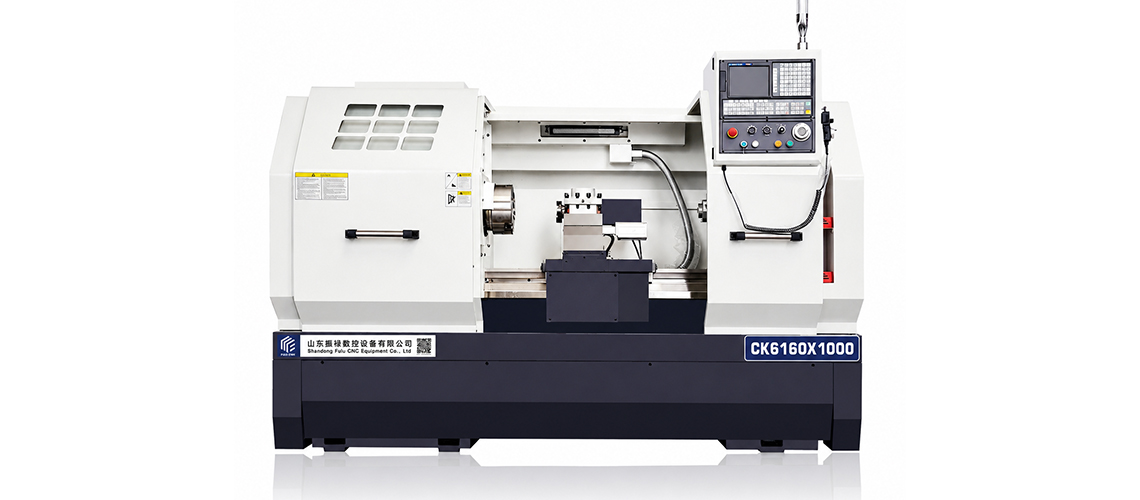

CK6160-1000
Unit
Specification
Maximum turning diameter on the bed
mm
600
Guide rail span
mm
400
Effective workpiece length
mm
850
Maximum travel X
mm
350
Maximum travel Z
mm
1000
Spindle speed range
r/min
45-1600 (three-speed)
Spindle through hole diameter
mm
Φ82
Spindle taper hole
Metric
Metric 90 (1:20)
Spindle end model
A2-8
Tailstock sleeve maximum travel
mm
150
Tailstock sleeve diameter
mm
75
Tailstock sleeve taper angle
Morse 5
Rapid movement speed (X/Z axis)
m/min
≥6/8
Turning thread range (metric thread)
mm
0.2～30
Repeat positioning accuracy (X/Z axis)
mm
0.007～0.01
Processing accuracy
IT6～IT7
Processing roughness
Ra1.6
Maximum load for shaft-type parts
kg
500
Maximum load for disc-type parts
kg
300
Dimensions: Length × Width × Height
mm
2800×1700×1800
Machine weight (approximately):
kg
2800
Standard Configuration

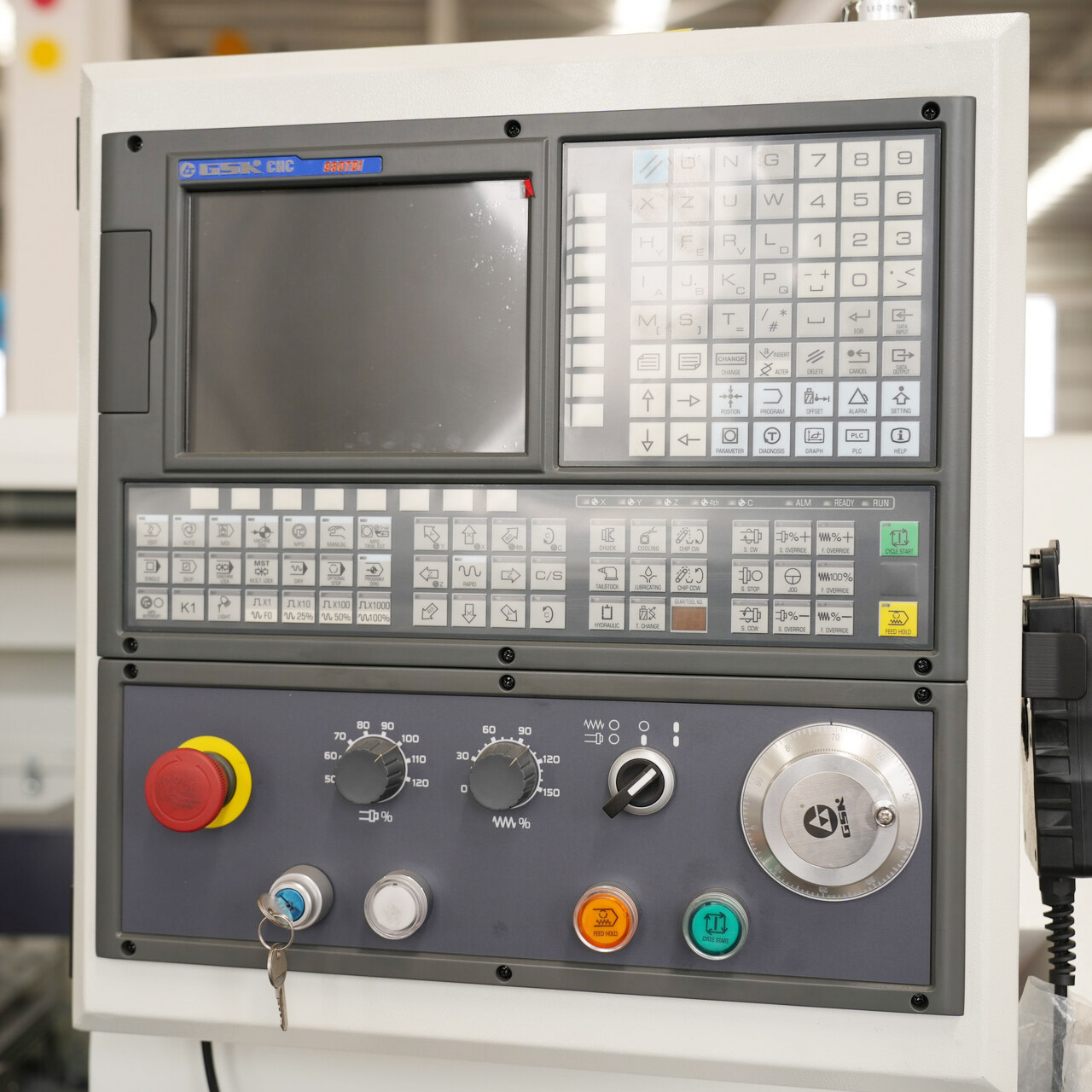

控制系统

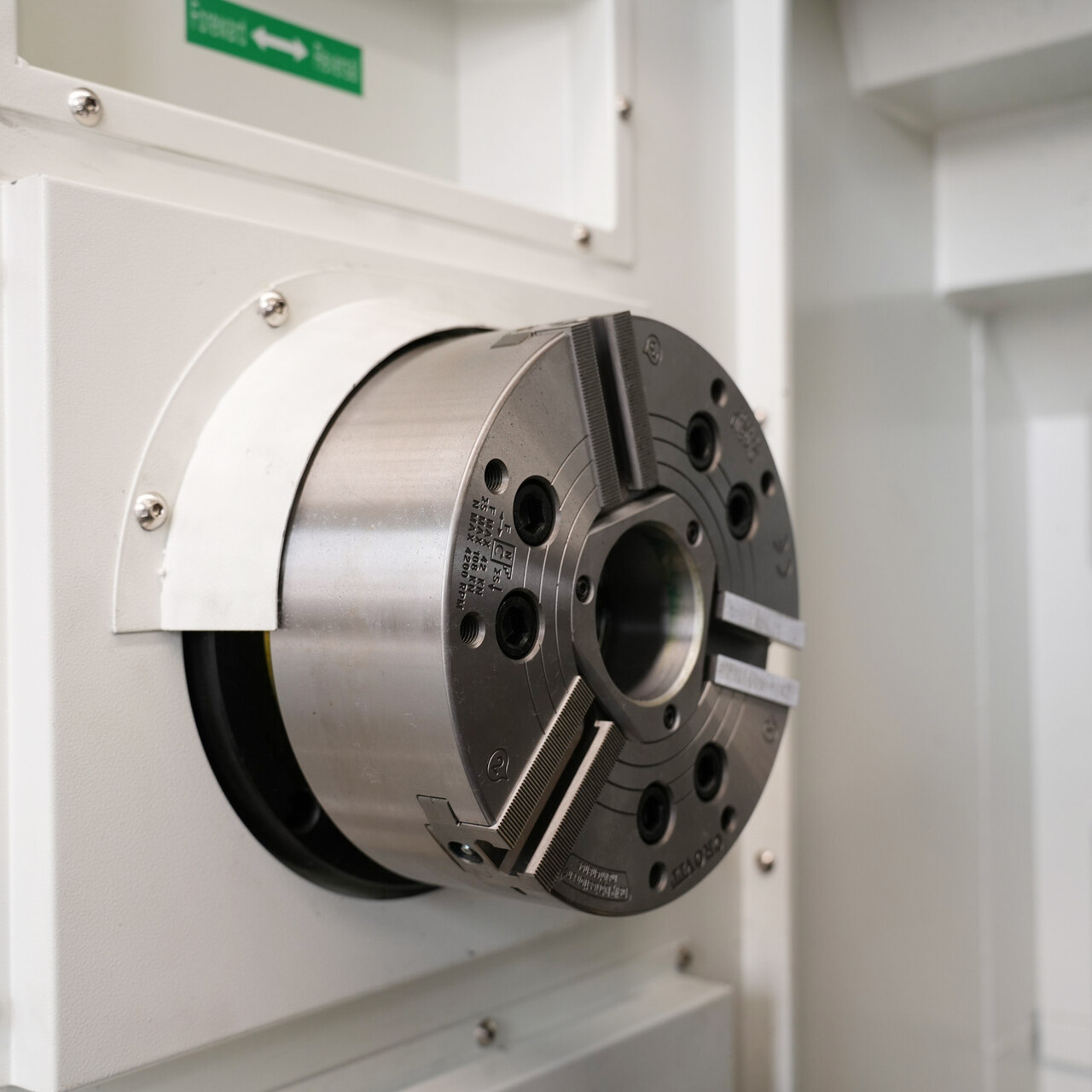

三爪卡盘

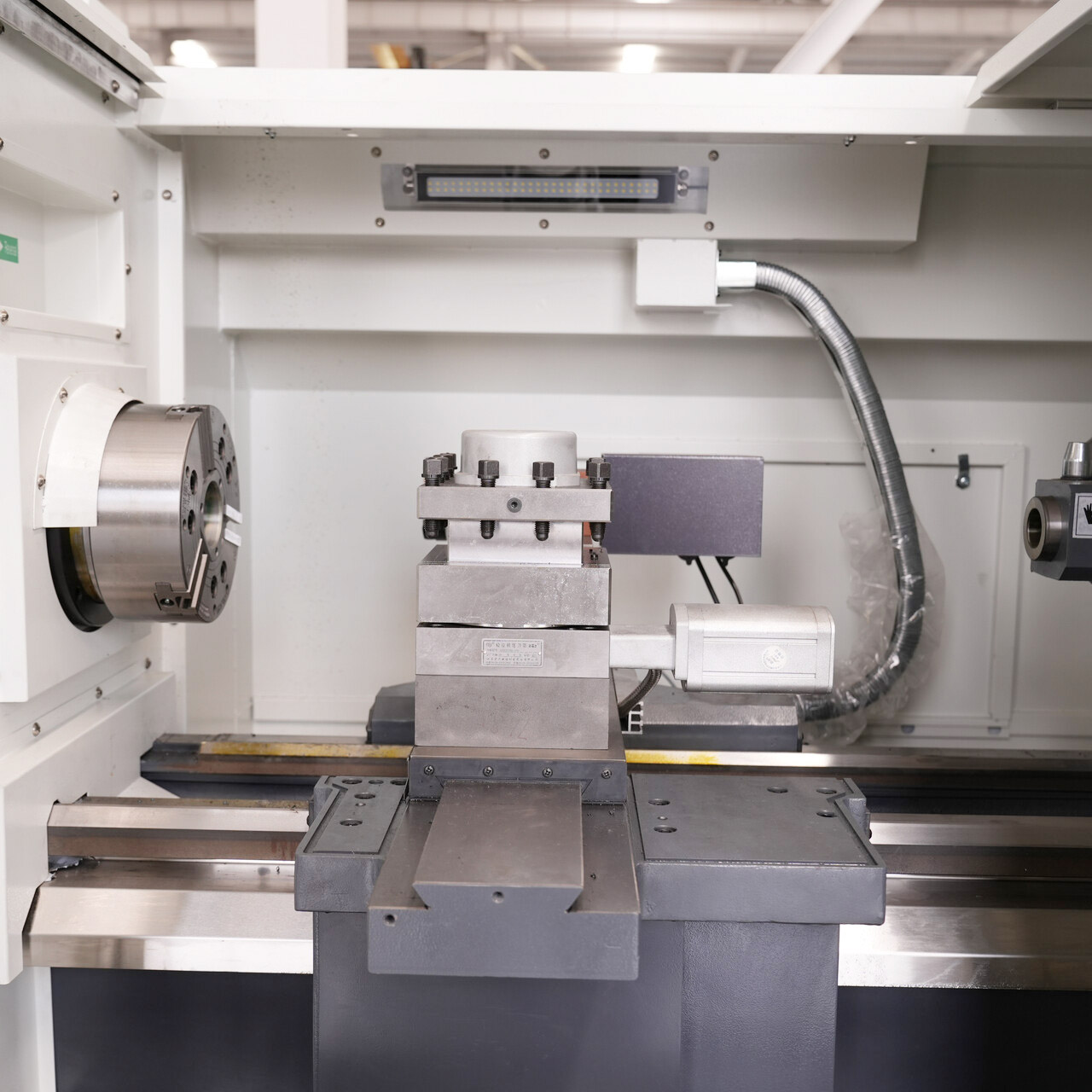

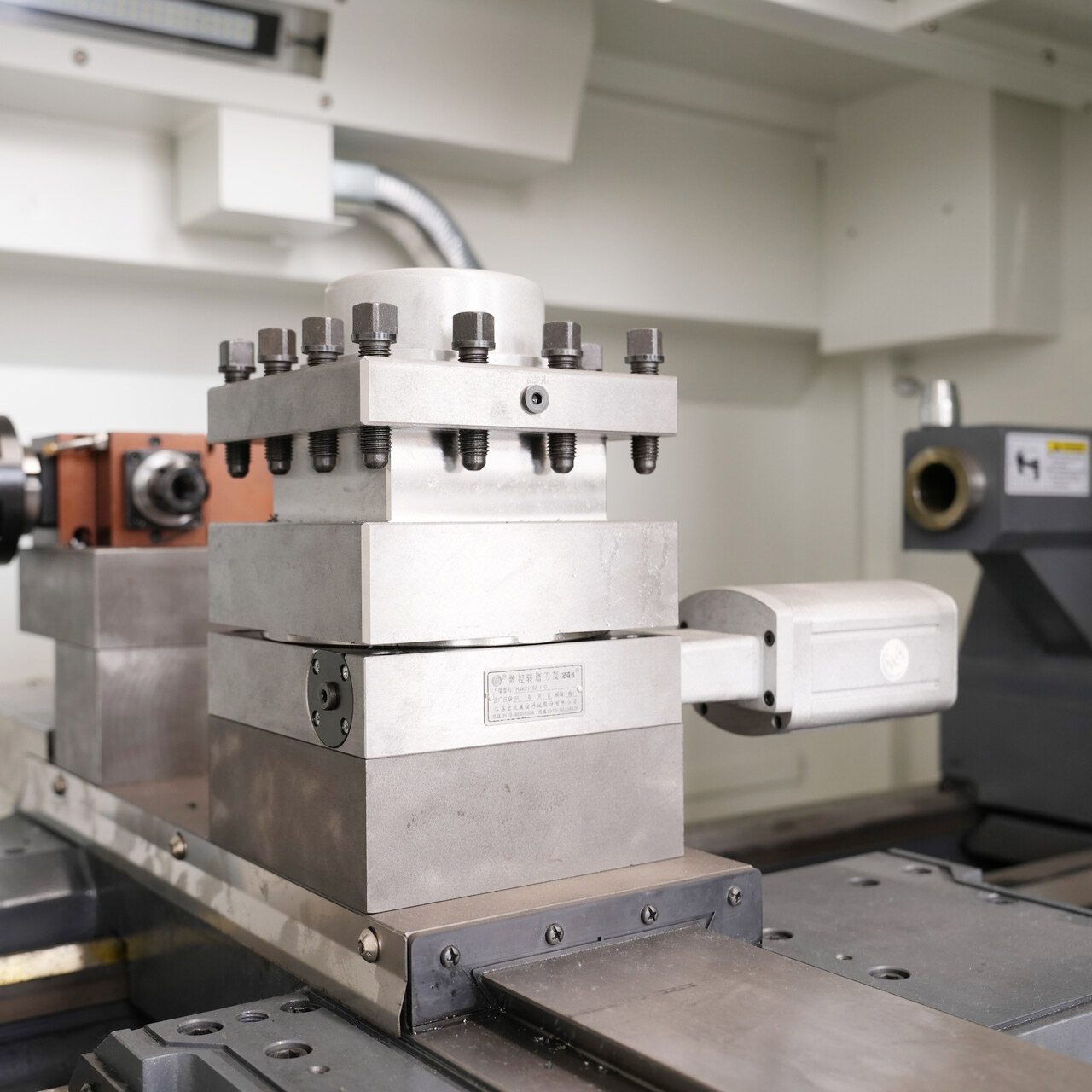

四工位电动刀架

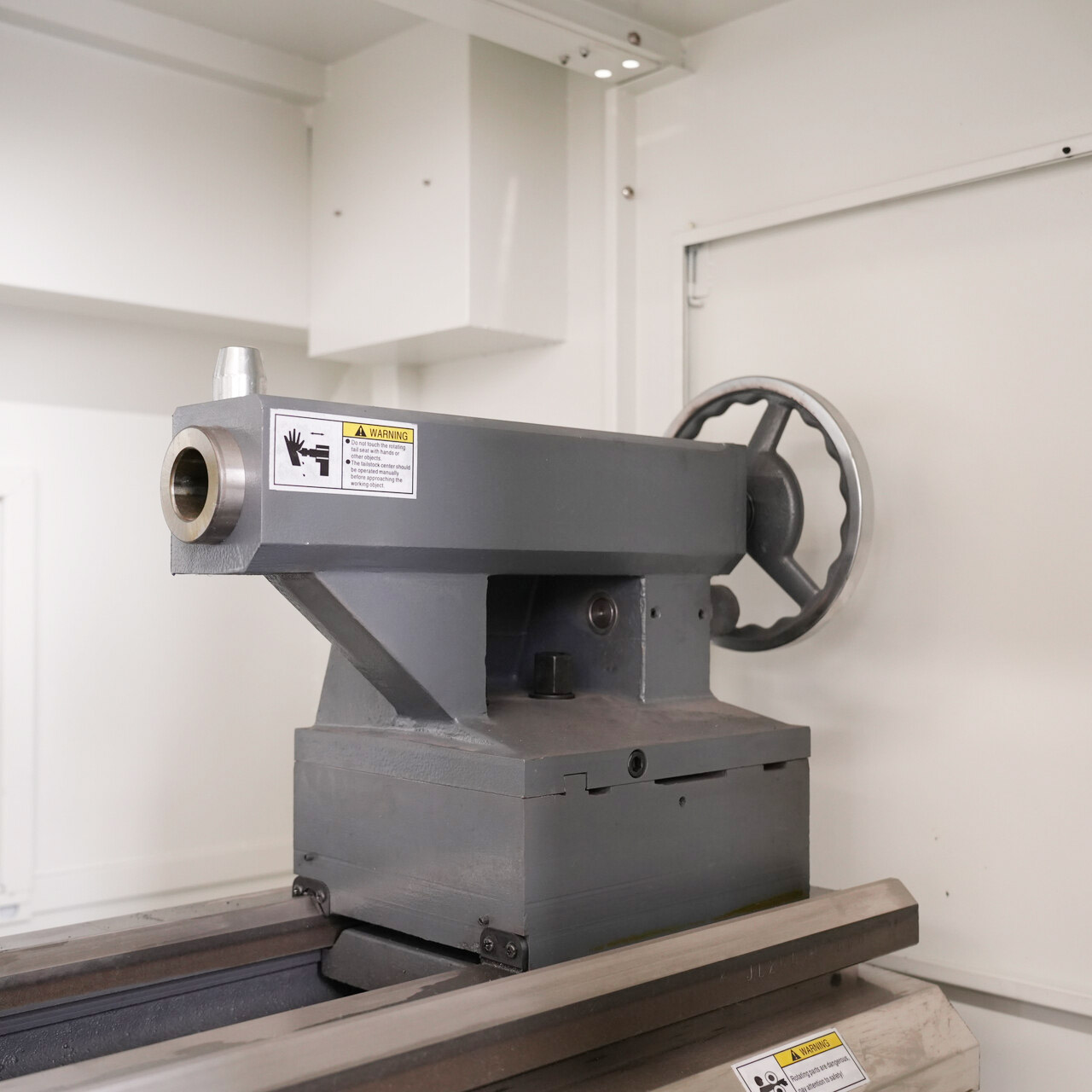

手动尾座
You can choose the control system you need according to your production requirements.
You can choose the tool holder you need according to your production requirements.
You can choose the tailstock you need according to your production requirements.
You can choose the chuck you need according to your production requirements.
CNC lathes are mainly used for processing metal parts, capable of machining some shaft-type and disc-type parts.
Machinable Parts
