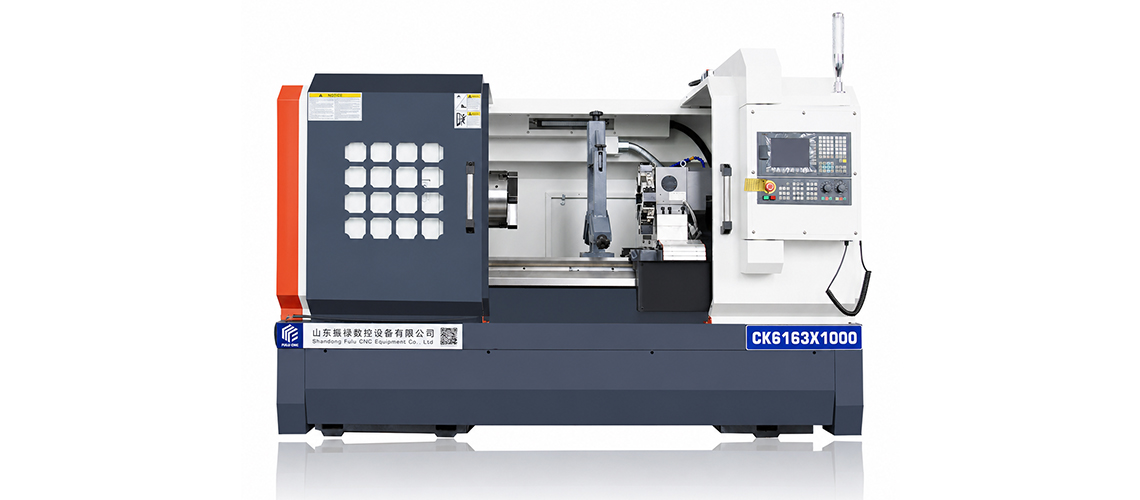

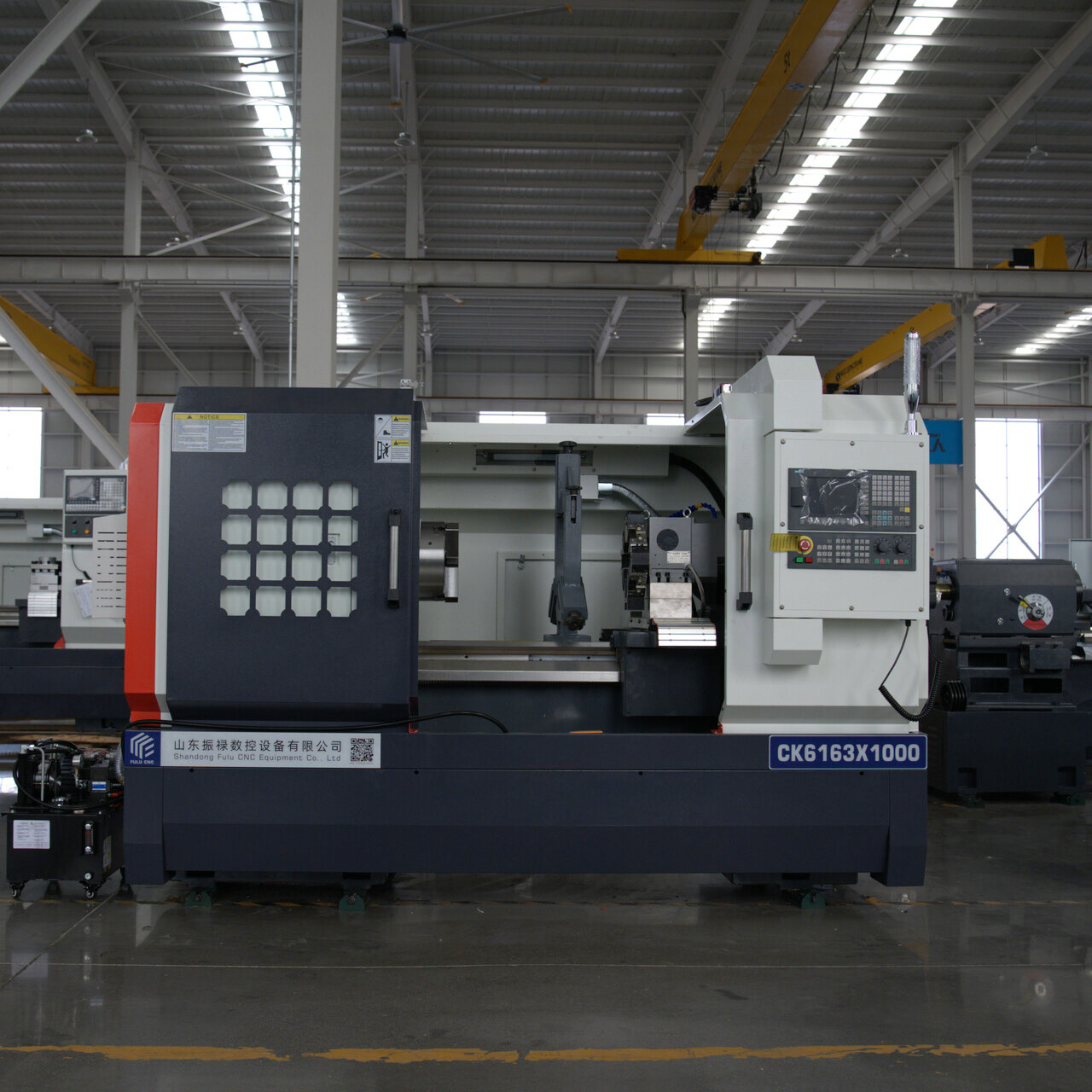

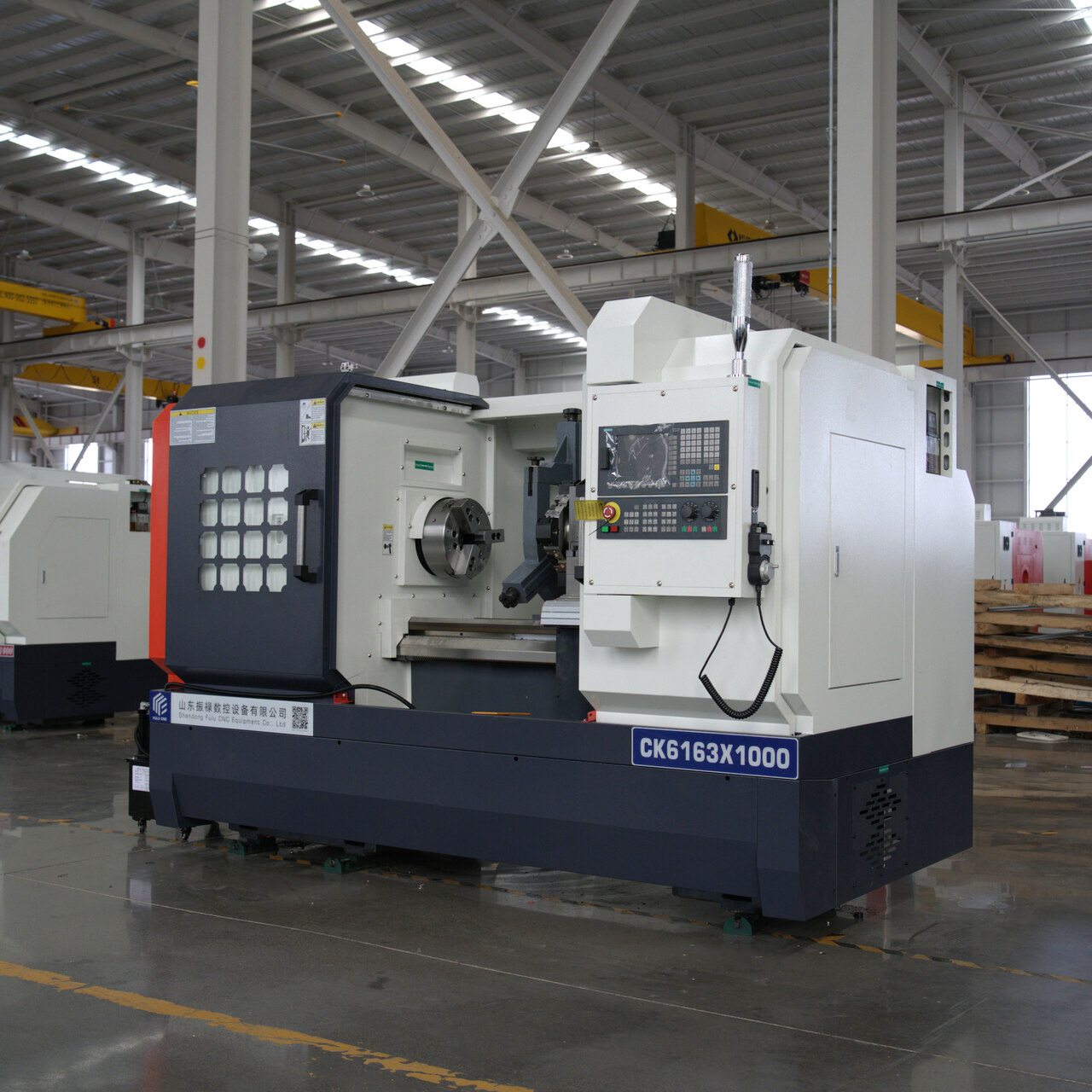

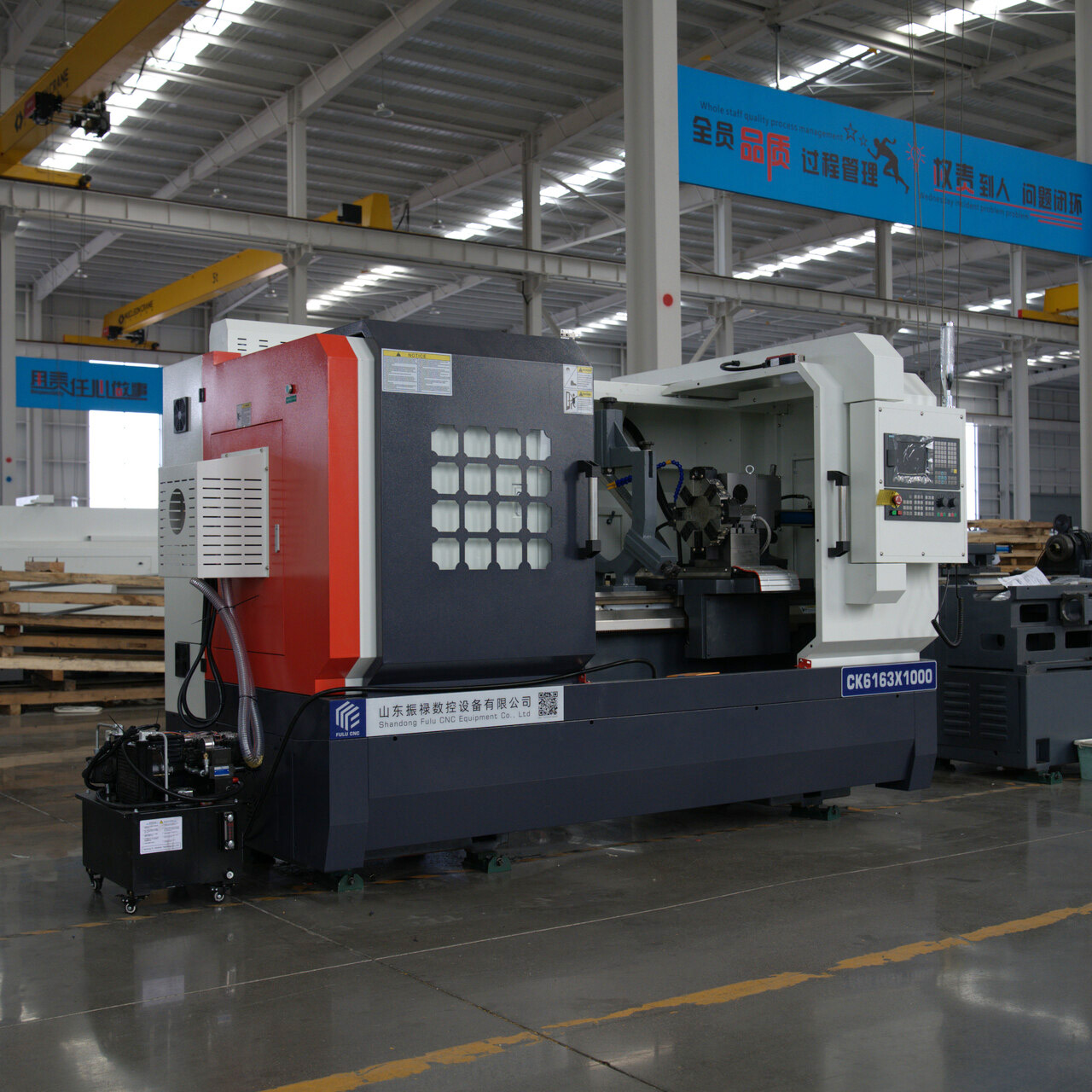

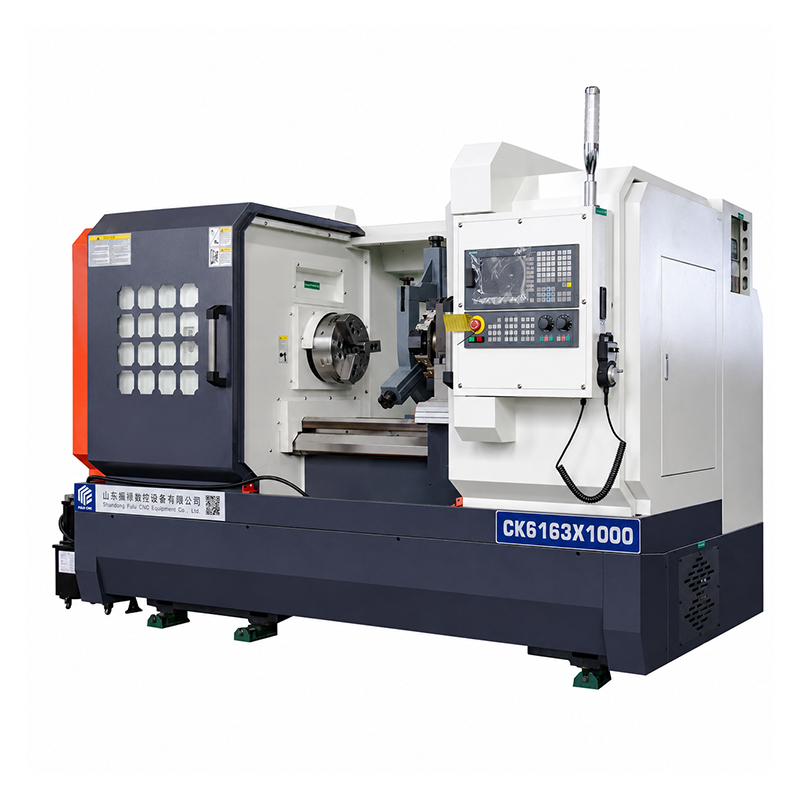

CNC Lathe
Basic Parameters
CK6163-1000
Unit
Specification
Maximum Turning Diameter on Bed
mm
630
Maximum Turning Diameter on Saddle
mm
380
Guide Rail Span
mm
400
Effective Workpiece Length
mm
850
Maximum Stroke X
mm
350
Maximum Stroke Z
mm
1000
Spindle Speed Range
r/min
45-1600 (Three-speed)
Spindle Through Hole Diameter
mm
Φ82
Spindle Taper Hole
Metric
Metric 90 (1:20)
Spindle End Model
A2-8
Tailstock Sleeve Maximum Stroke
mm
150
Tailstock Sleeve Diameter
mm
75
Tailstock Sleeve Taper Angle
Morse No. 5
Rapid Traverse Speed (X/Z Axis)
m/min
≥6/8
Turning Thread Range (Metric Thread)
mm
0.2～30
Repeat Positioning Accuracy (X/Z Axis)
mm
0.007～0.01
Processing Accuracy
IT6～IT7
Processing Roughness
Ra1.6
Maximum Load for Shaft Parts
kg
500
Maximum Load for Disc Parts
kg
300
Overall Dimensions: Length × Width × Height
mm
2640×1600×1800
Machine Net Weight (Approx.):
kg
2600
Standard Configuration

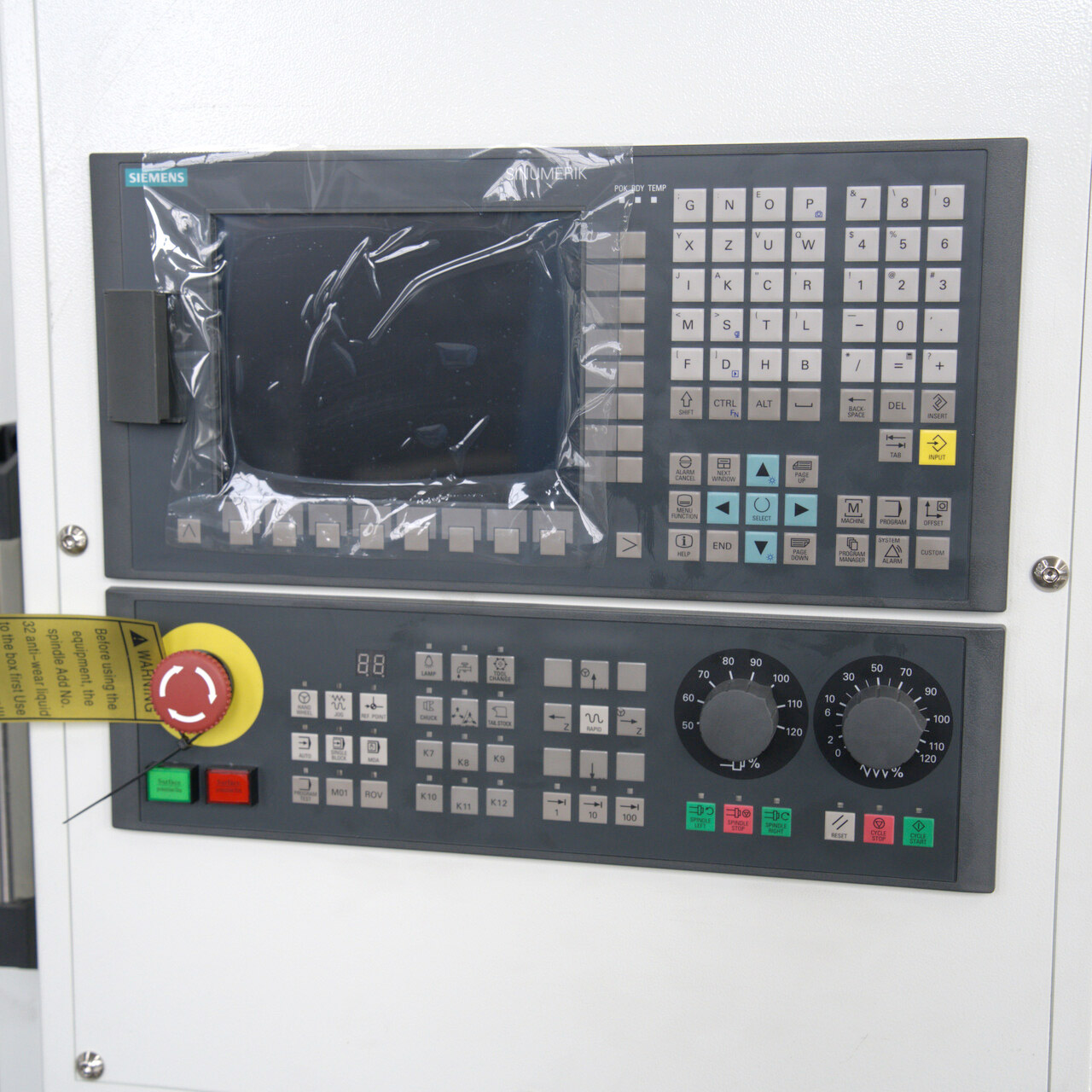

控制系统

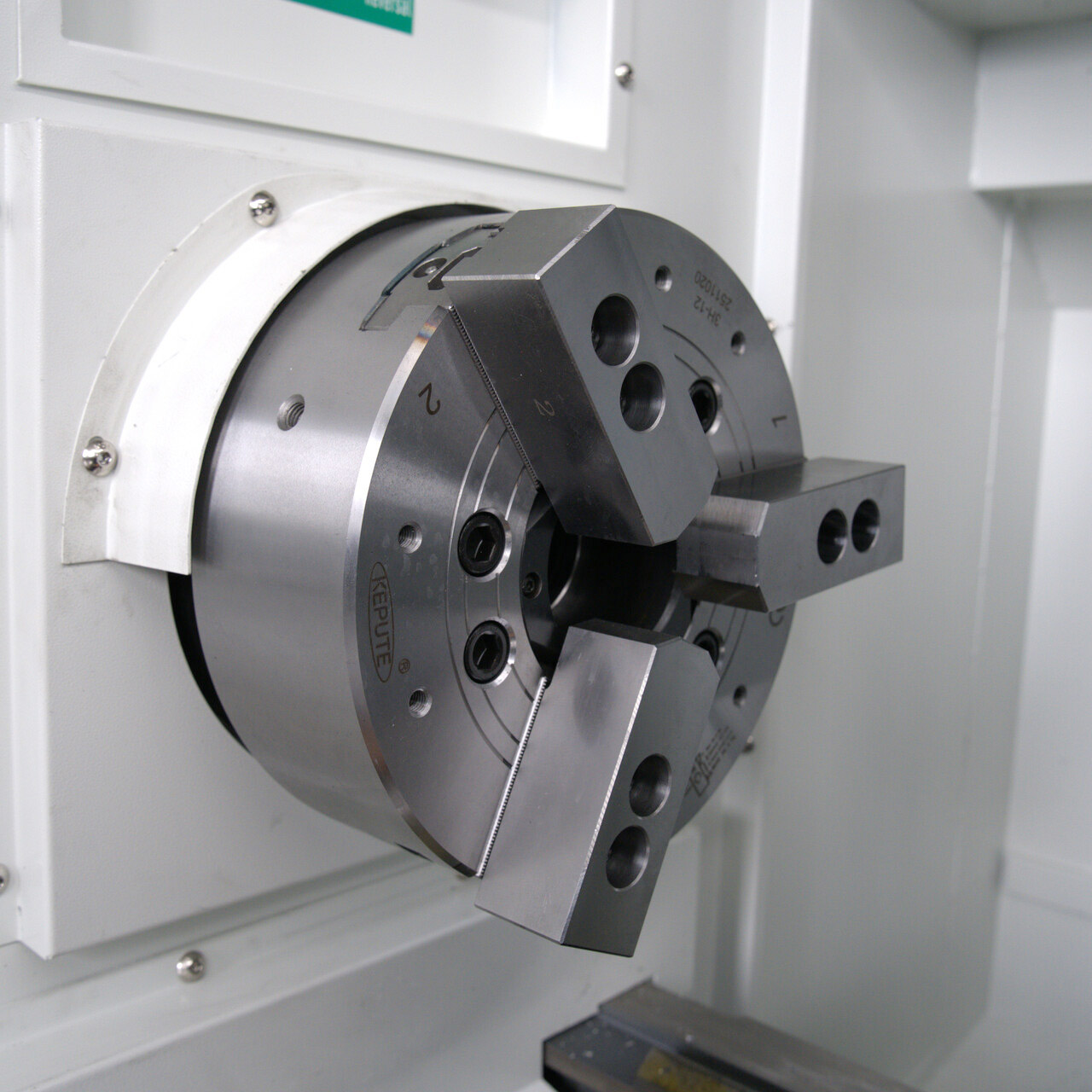

三爪卡盘
四工位电动刀架
手动尾座
You can choose the control system you need according to your production requirements.

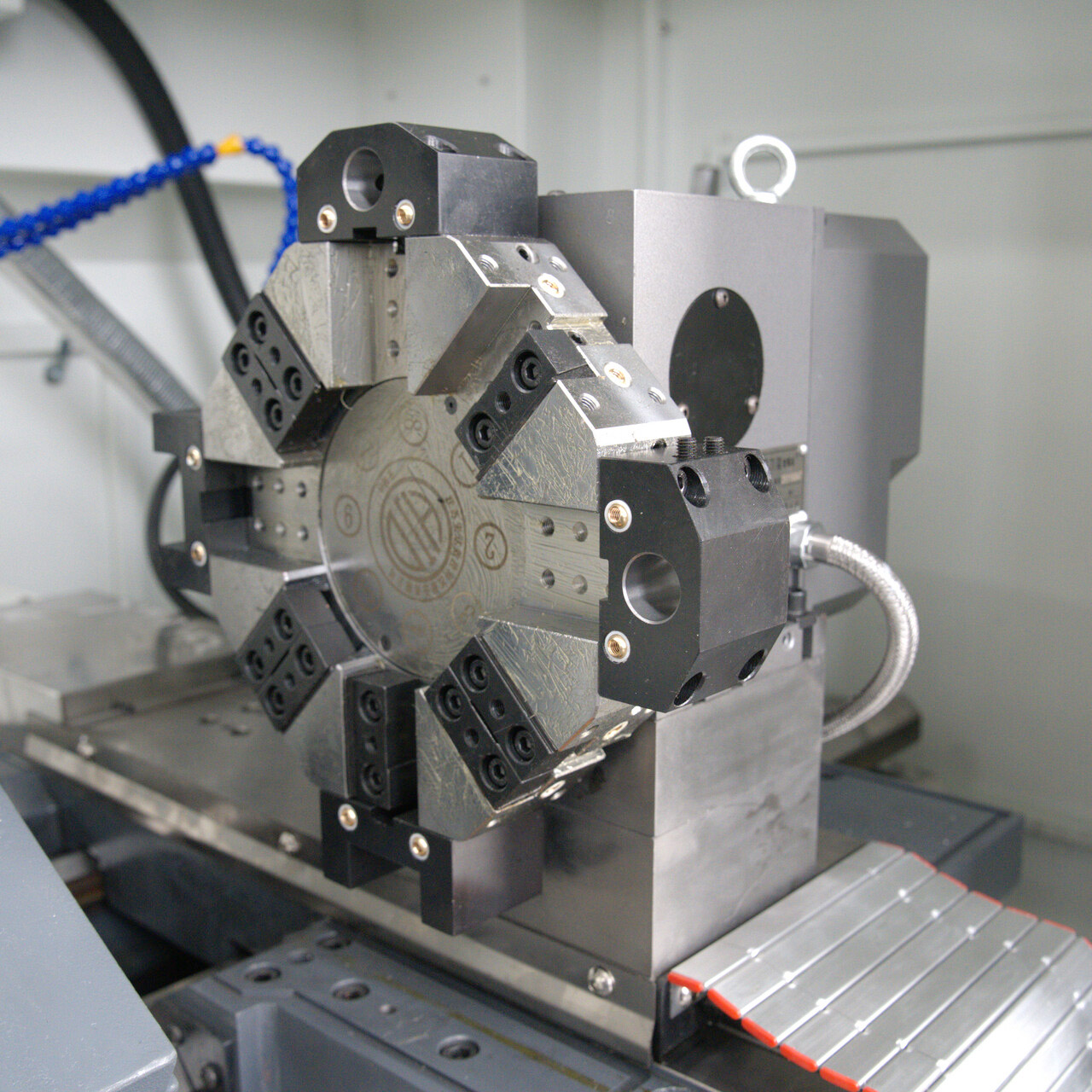

You can choose the tool holder you need according to your production requirements.
You can choose the tailstock you need according to your production requirements.
You can choose the chuck you need according to your production requirements.
CNC lathes are mainly used for processing metal parts, capable of machining some shaft-type and disc-type parts.
