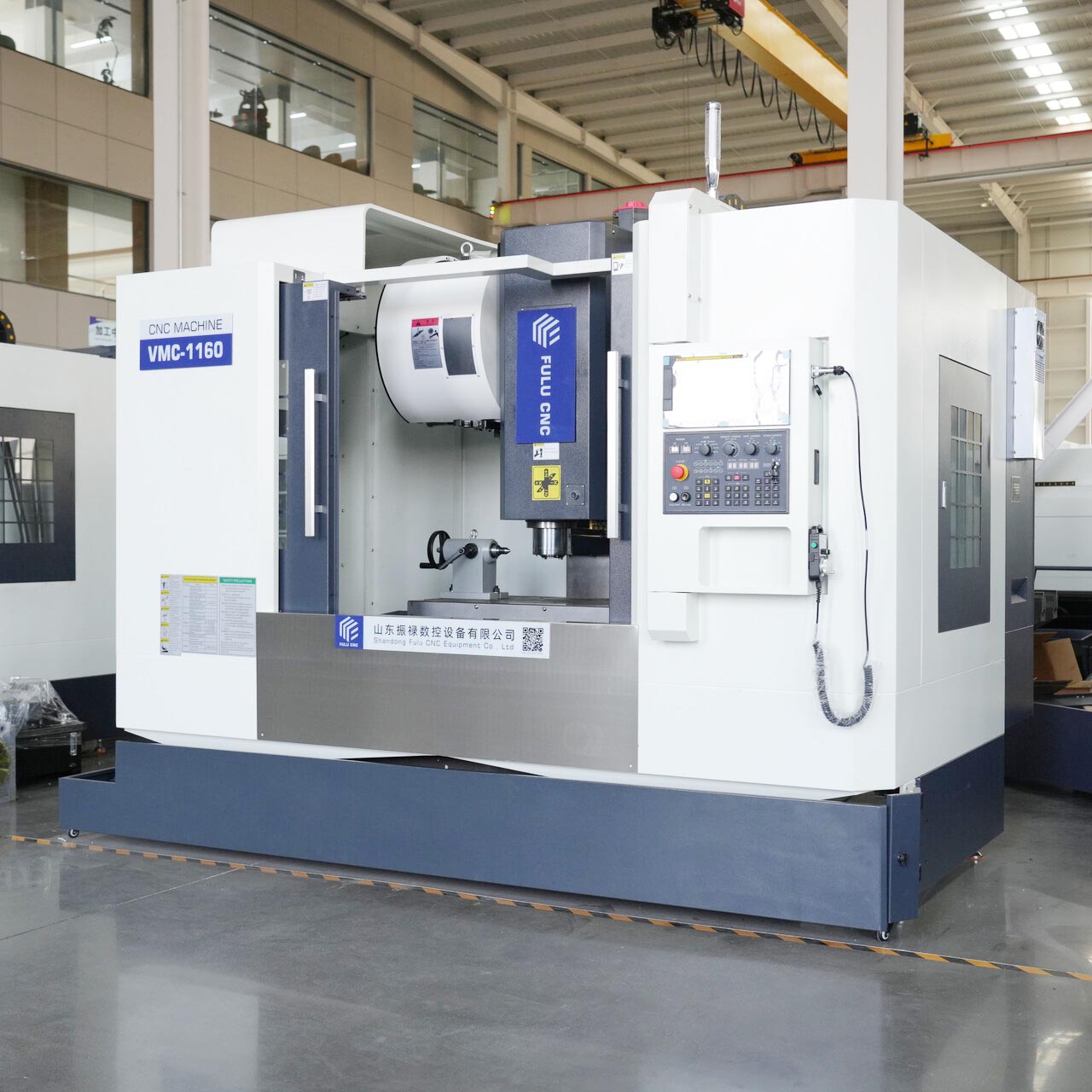

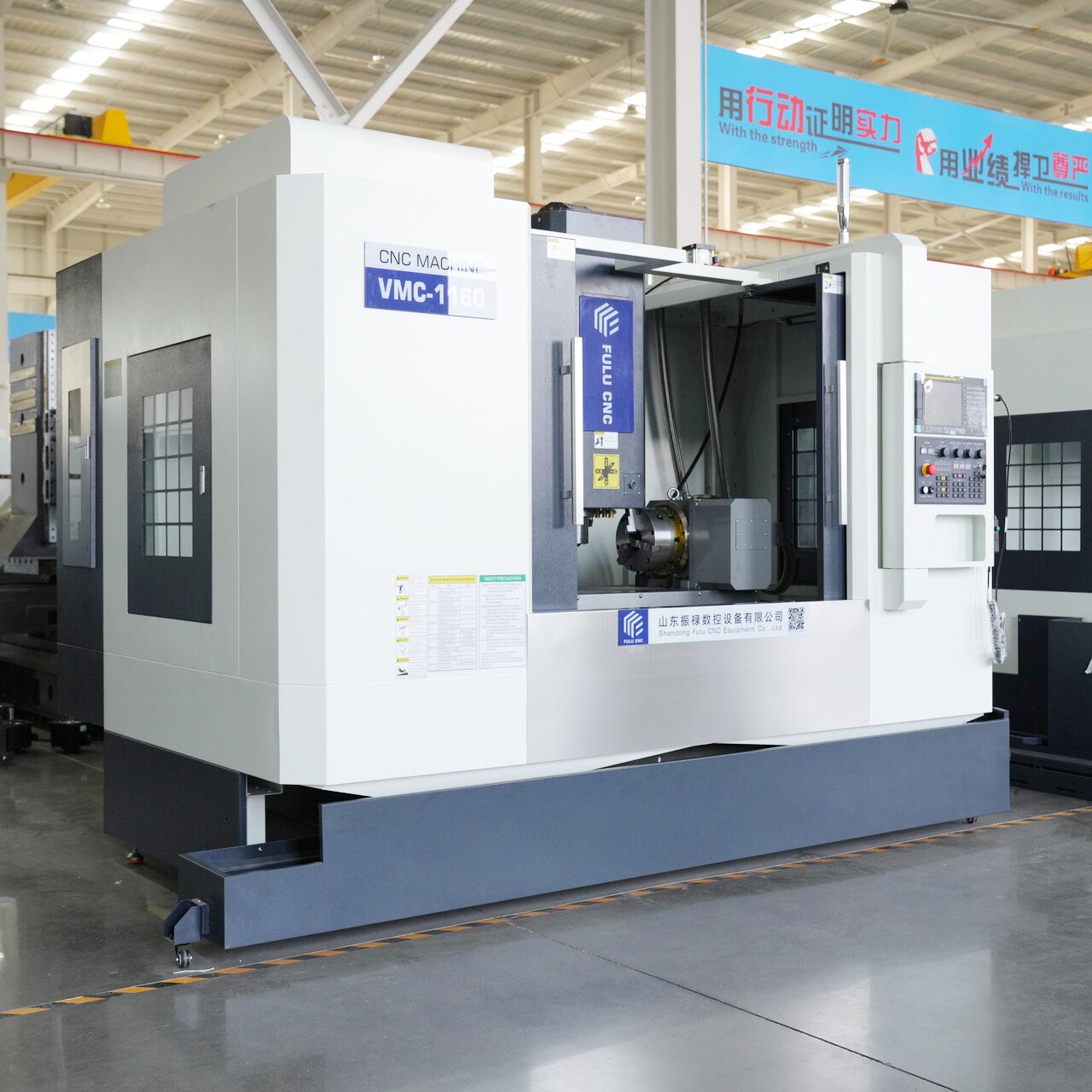

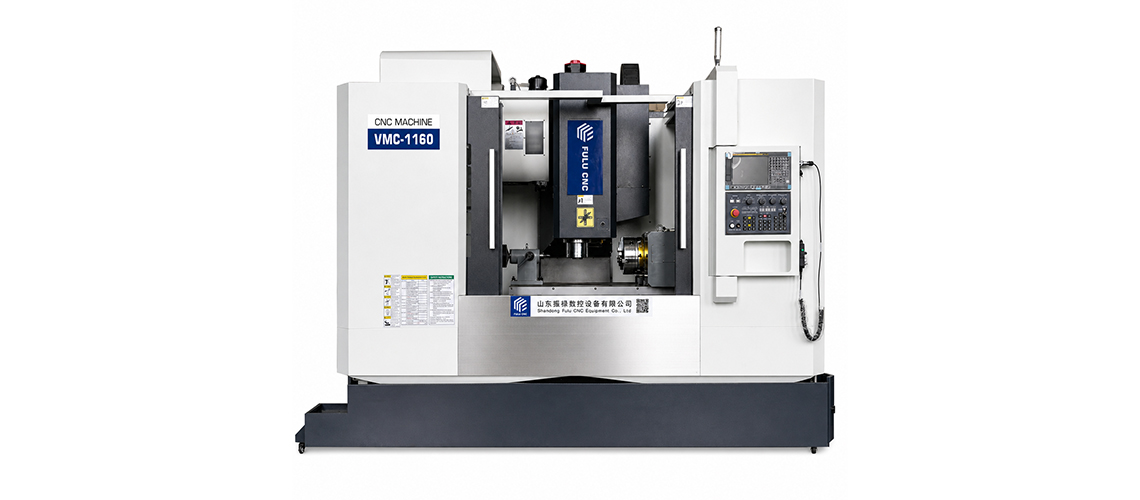

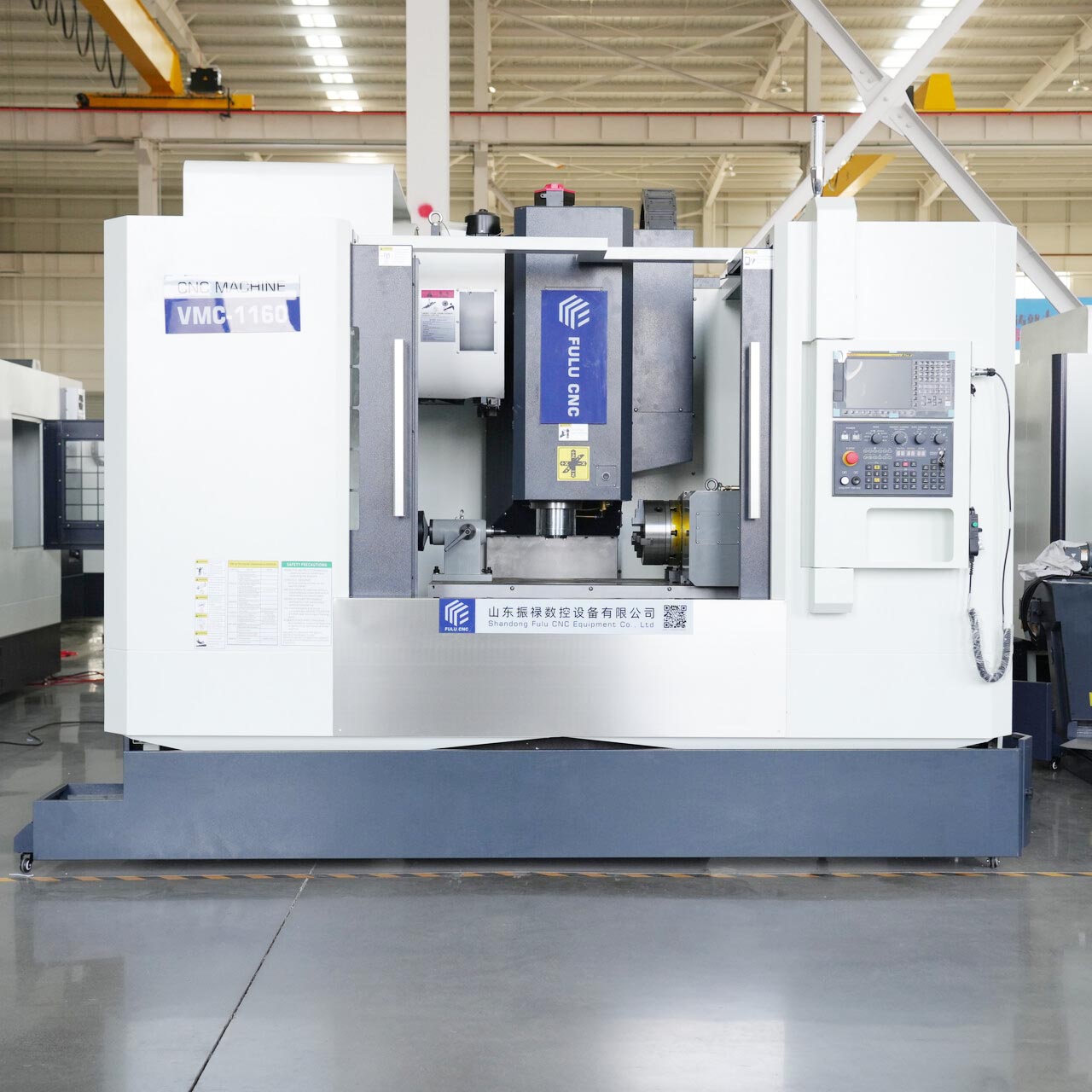

VMC1160 FANUC

CNC Lathe

Basic Parameters

Table size 1200×600mm, meets the clamping needs of medium to large workpieces.
Maximum spindle speed 8000rpm, balancing high-speed cutting and precision machining.
X/Y/Z axis travel 1100/600/600mm, providing a wider processing range.
Three-axis rapid movement speed 24m/min, effectively reducing auxiliary time.
High rigidity box structure design, ensuring long-term stable processing accuracy.

Contact Us

Video Display

Technical Parameters
Standard Configuration
Select Configuration

Machine model: VMC1160	Unit	Specification
Table size	mm	1200x600
X/Y/Z axis travel	mm	1100/600/600
Distance from spindle face to table	mm	120-720
Distance from spindle center to column	mm	672
Maximum load on table	Kg	800
T-slot on table	mm	5-18x100
X/Y/Z axis rapid feed	m/min	32/32/26
X/Y/Z guide rail width specification	mm	RGH45/45/45
X/Y/Z screw specifications	mm	4012
Positioning accuracy	mm	±0.008
Repeat positioning accuracy	mm	±0.005/300
Minimum positioning unit	mm	±0.001
Maximum spindle speed	rpm	8000 (ring water spray)
Spindle taper	mm	BT40-150

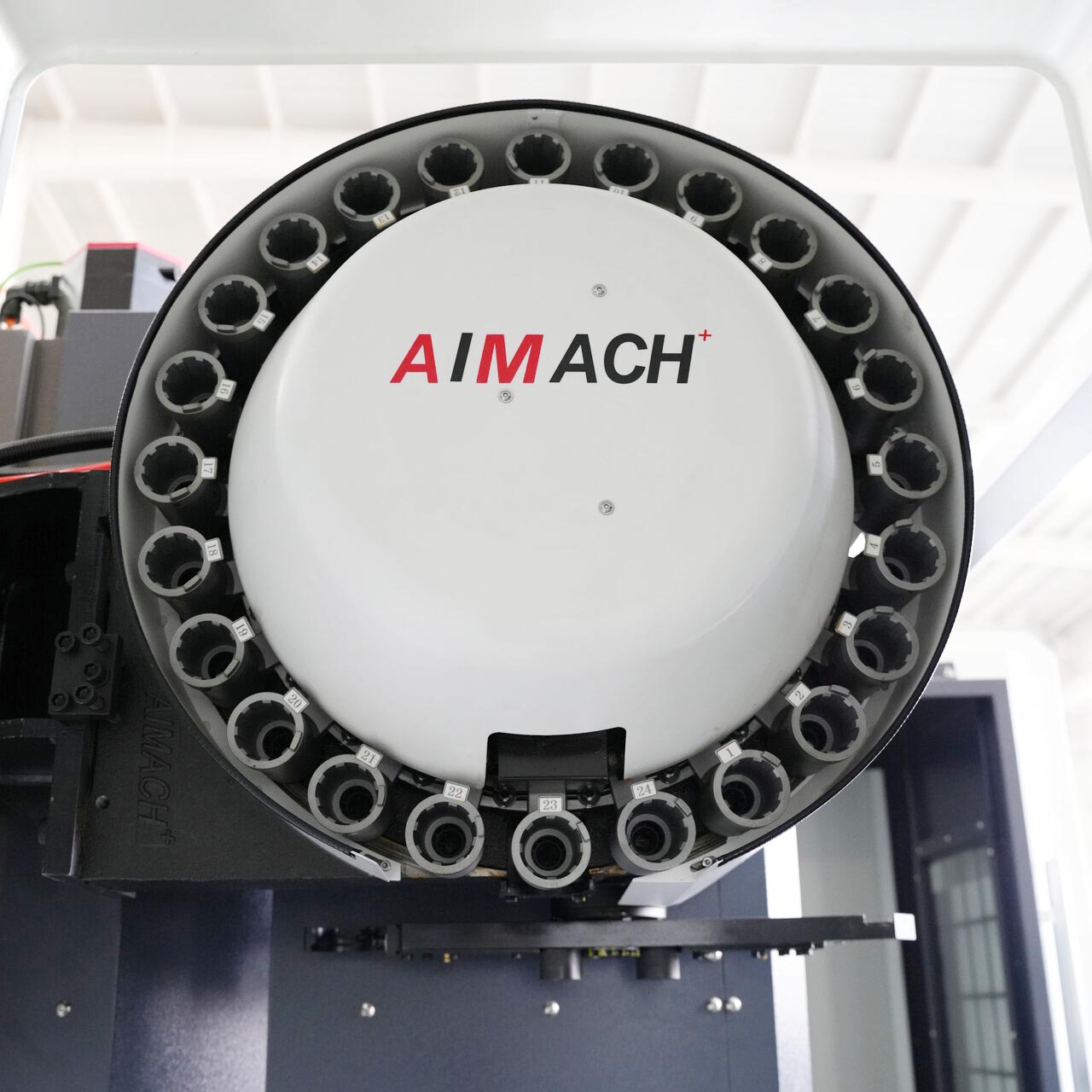

Disc mechanical arm tool magazine	pcs	24T

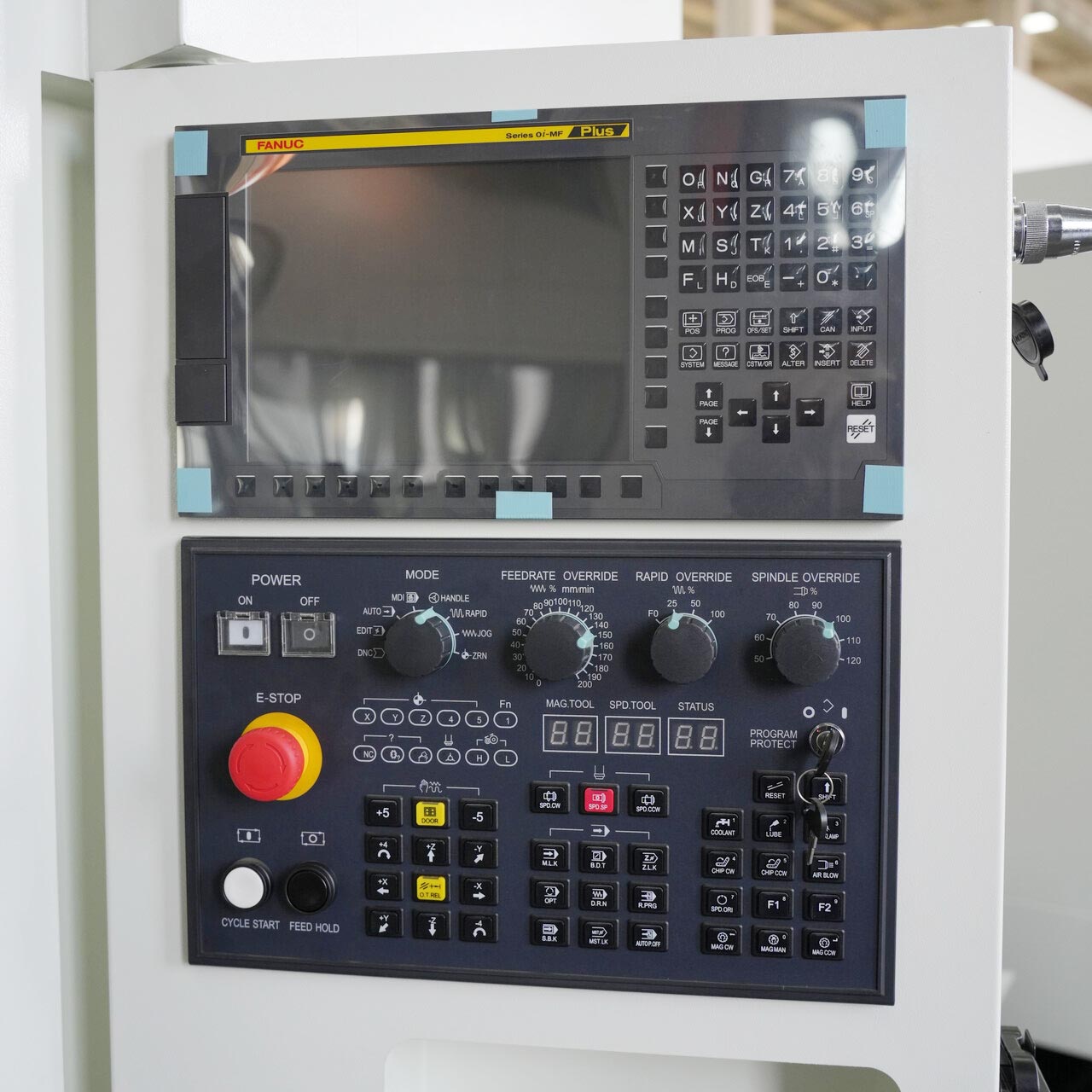

Controller system	/	GSK 25i
X/Y/Z axis motor power	Nm	18/18/28
Spindle motor power	Kw	November 15
Machine weight approximately	Kg	6000
Dimensions	mm	2800x2400x2800

Serial Number	Configuration Content	Serial Number	Configuration Content
1	Cutting Cooling System	13	Internal Cleaning Device: Chip Blower, Water Gun

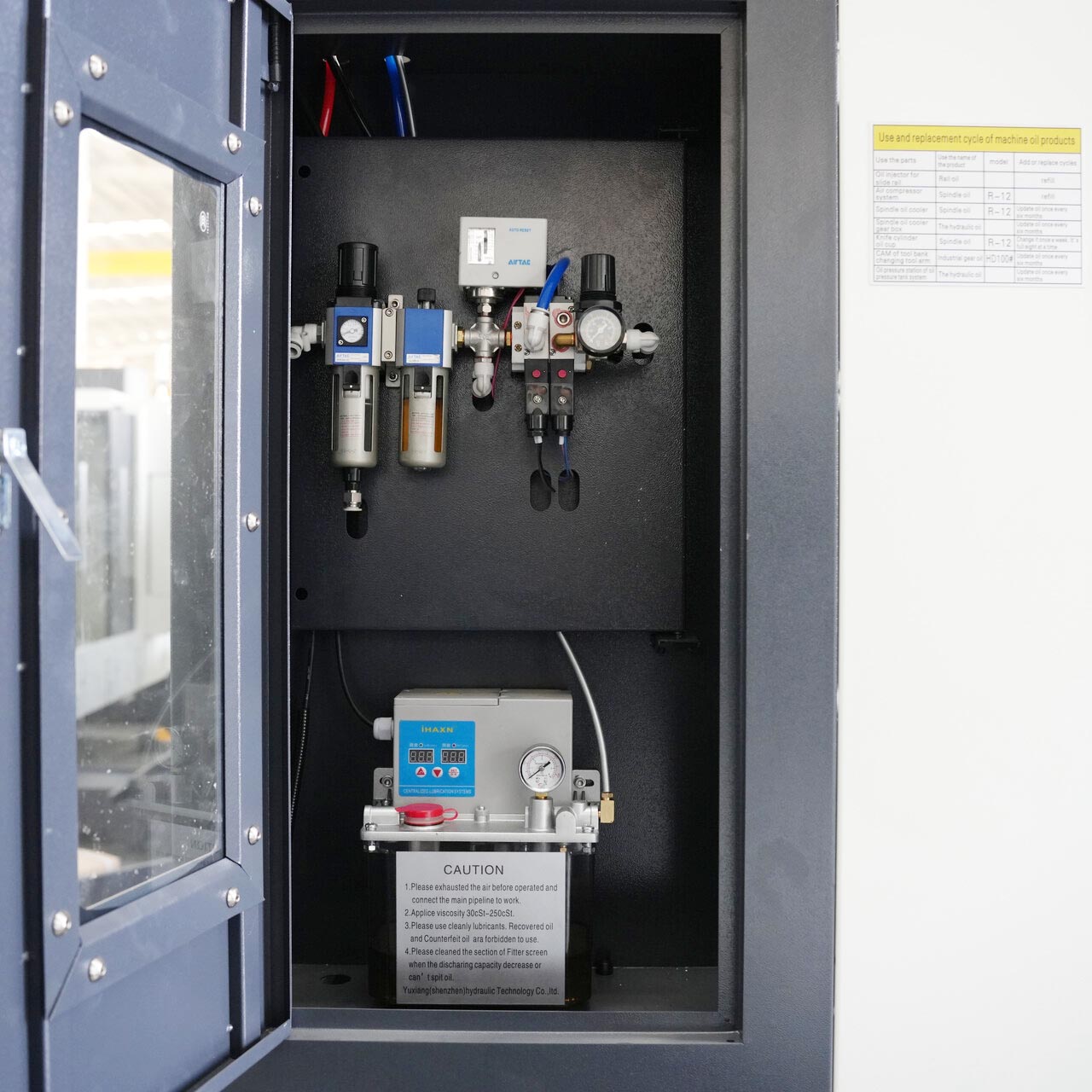

2	Automatic Lubrication System	14	Manual Pulse Generator: Handwheel
3	Cutting Blowing Device	15	External Network Transmission Interface
4	Spindle and Servo Overload Protection System	16	Three-Axis Telescopic Protective Cover (Full Cover Inner Sheet Metal)
5	Three-Color Alarm Light	17	External Protection High-Grade Baked Paint Sheet Metal
6	Horizontal Adjustment Bolt and Shim	18	Rigid Tapping

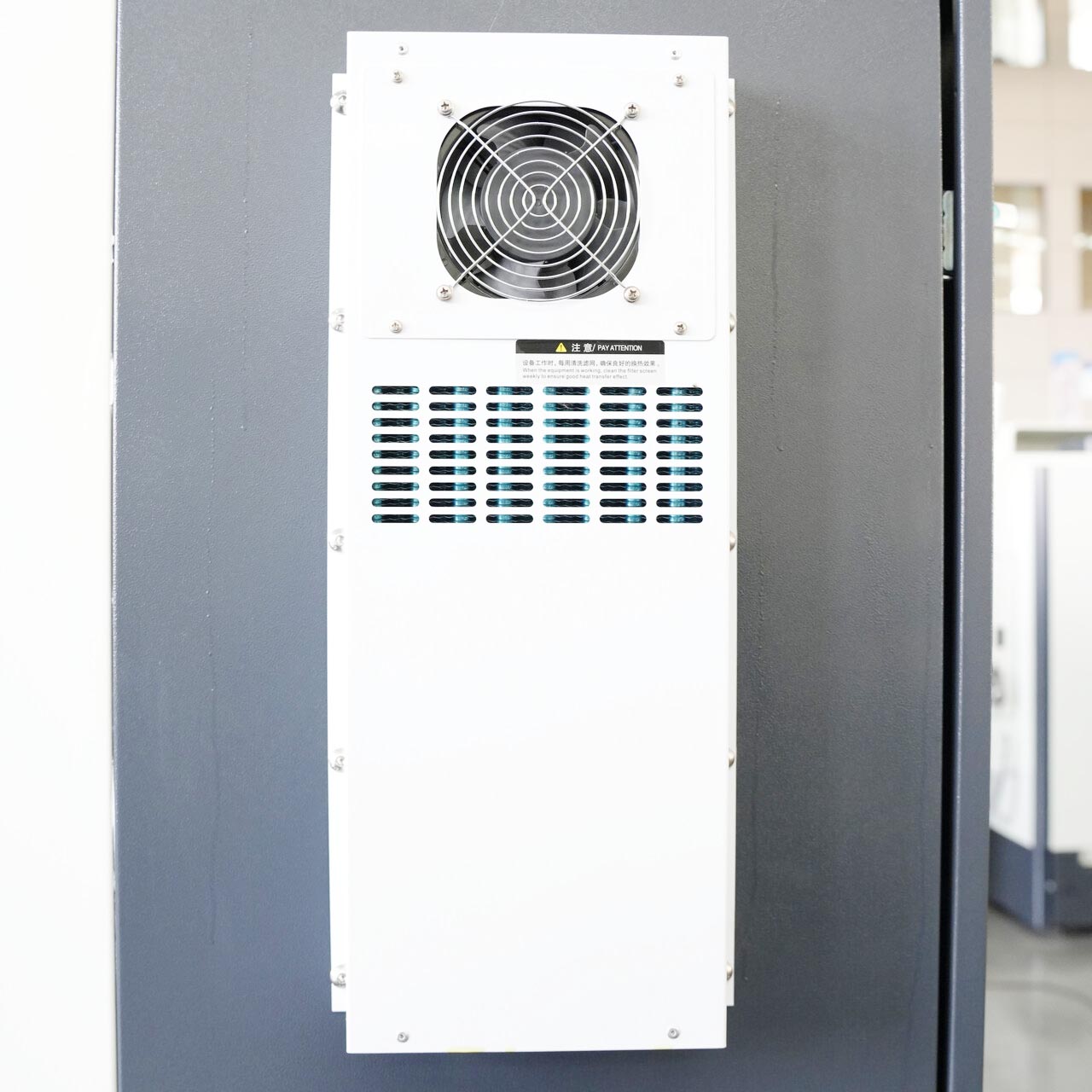

7	Electrical Box Heat Exchanger	19	Precision Inspection Certificate
8	Three-Axis Screw Pre-Tensioning Device	20	Electrical Manual
9	Program Storage	21	User Manual
10	Spindle Ring Water Spray	22	Program Operation Manual
11	Reserved for Adding Four-Axis Interface	23	Air Curtain Protection
12	Internal Work Light of the Machine Tool	24	Chassis Powerful Chip Removal, Dual Water Pump

◎Control System: Siemens, New代, Mitsubishi, Fanuc, Kain迪
◎10000, 12000rpm spindle speed
◎30kg/50kg/70kg central water outlet

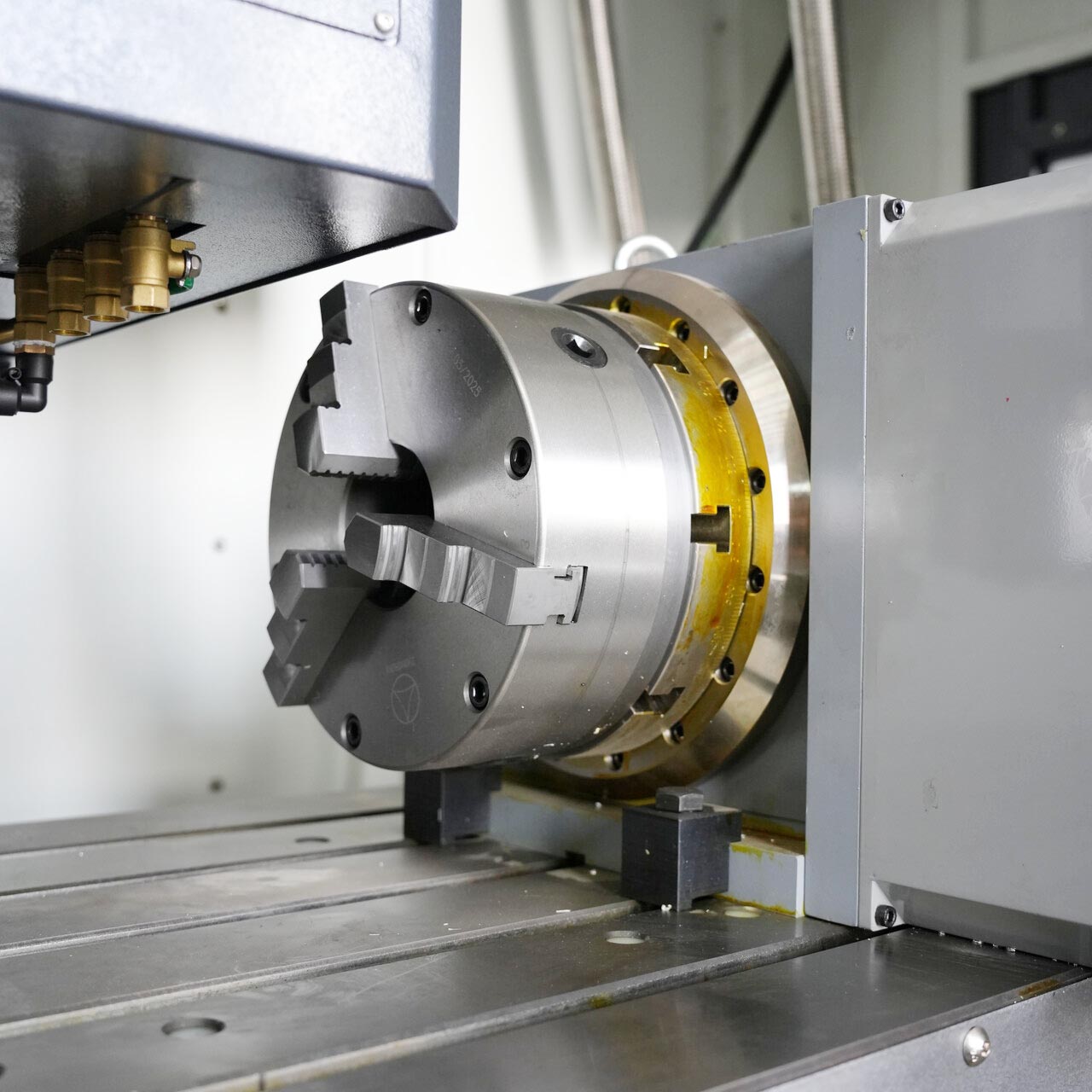

◎170/200/250/300mm fourth axis
◎125/170/210/250mm fifth axis
◎Chain type chip conveyor
◎Renishaw tool setter

Learn More

Standard Configuration

https://fulucncfactory.com/DM-static/upload/image/effimg/20260611_144050_1412.jpg

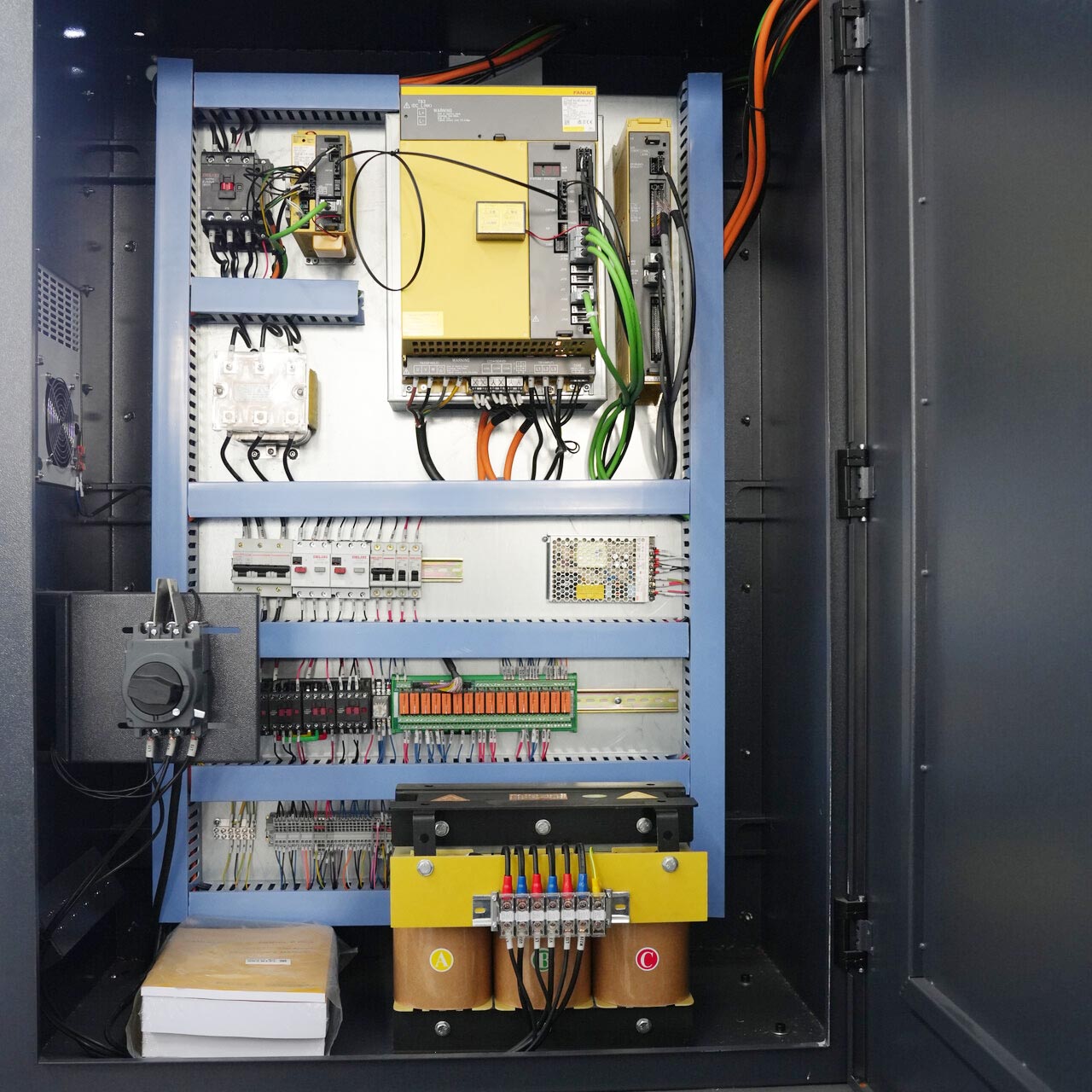

控制系统

https://fulucncfactory.com/DM-static/upload/image/effimg/20260611_144123_8285.jpg

24把圆盘刀库

https://fulucncfactory.com/DM-static/upload/image/effimg/20260611_144500_3397.jpg

冷却系统

https://fulucncfactory.com/DM-static/upload/image/effimg/20260611_144818_4105.jpg

主轴

Optional Configuration

Control system options

You can choose the control system you need according to your production requirements.

Cooling method optional

You can choose the cooling method you need according to your production requirements.

Other options

You can choose the configuration you need according to your production requirements.

Processable Parts

The vertical machining center can complete composite processing such as milling, drilling, boring, tapping, and chamfering, mainly processing mold accessories, box shells, mechanical brackets, irregular precision parts, flange connectors, etc., covering many industries such as molds, automobiles, aviation, engineering machinery, automation, and hydraulics.
